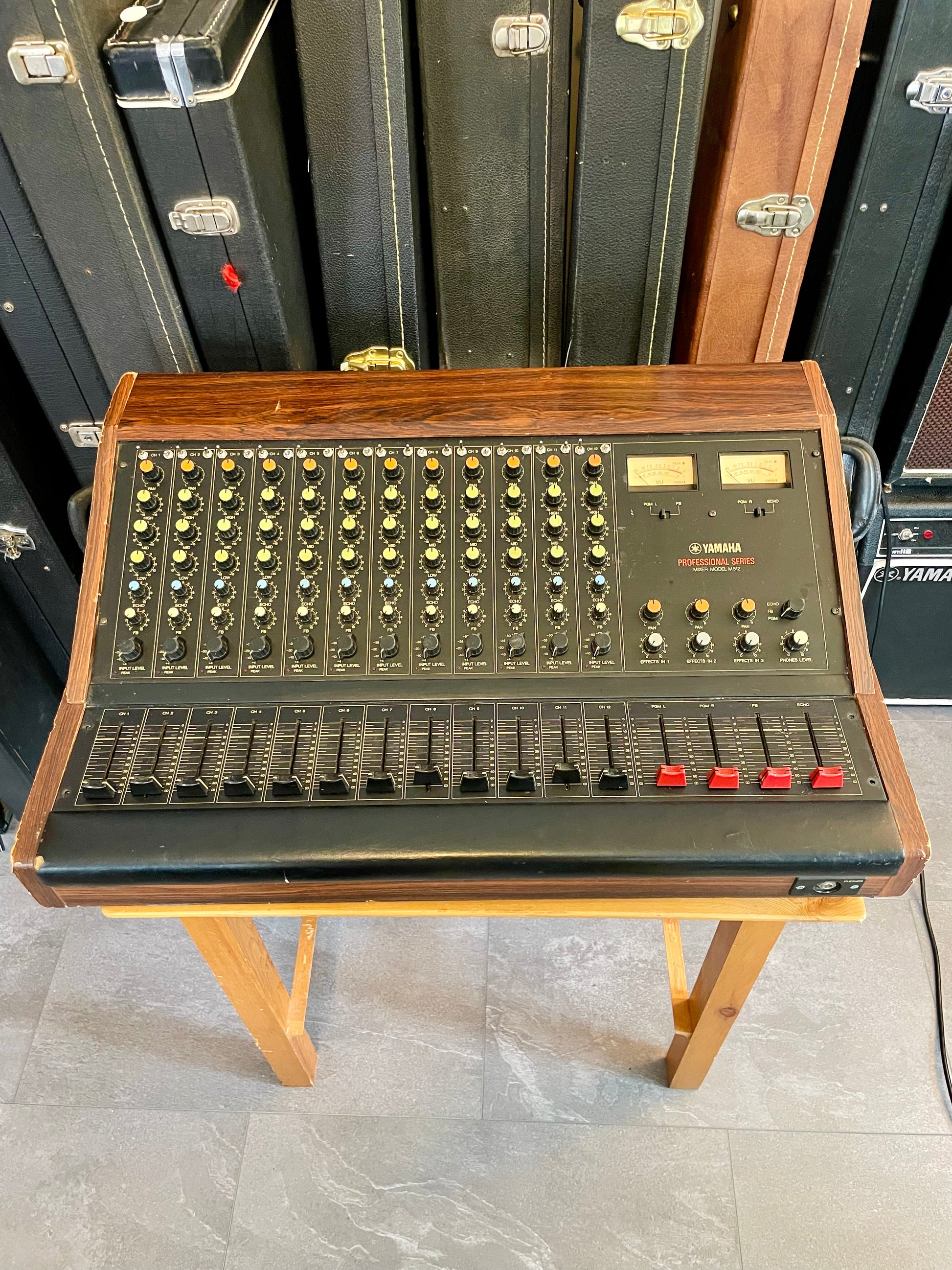

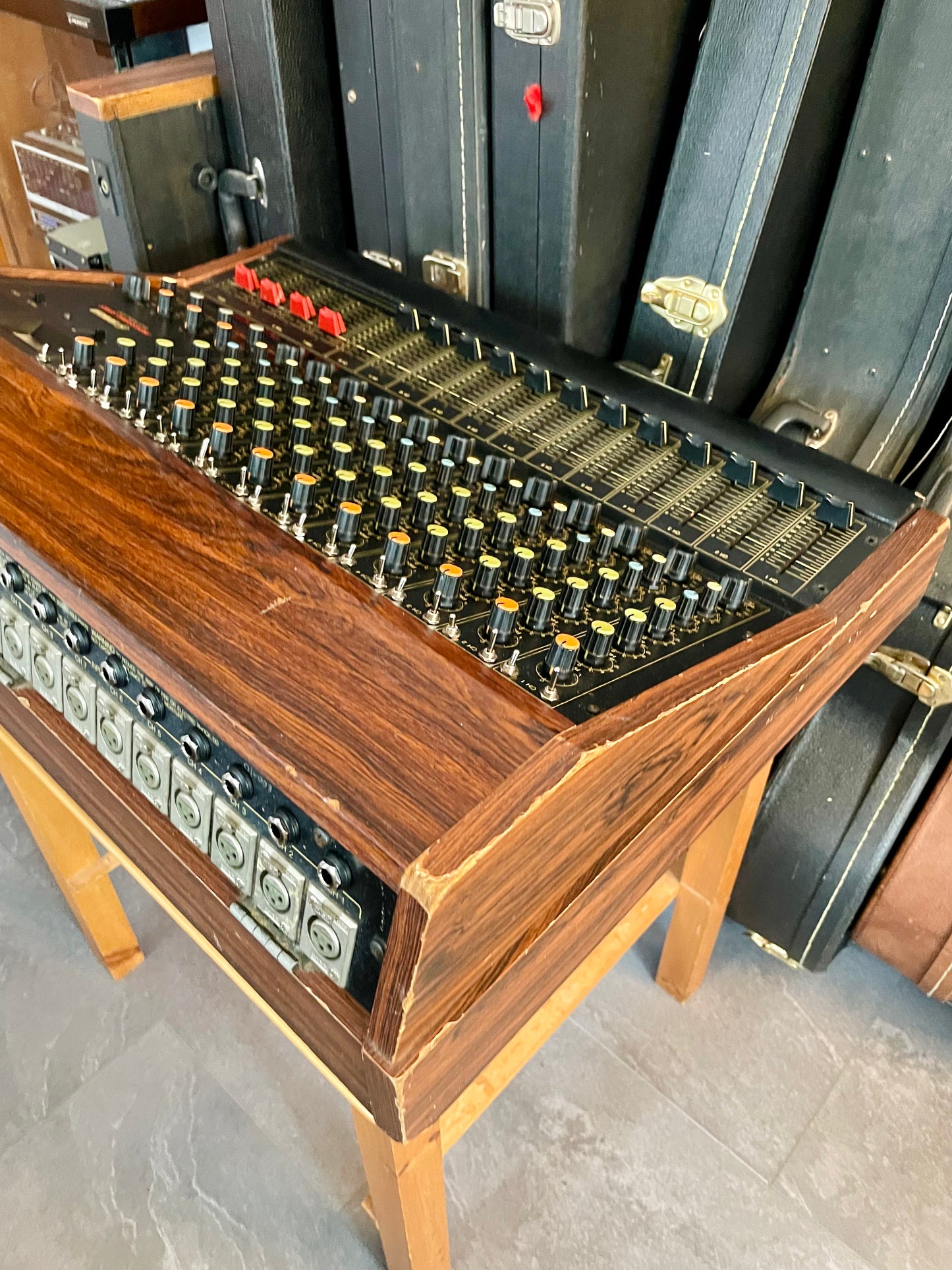

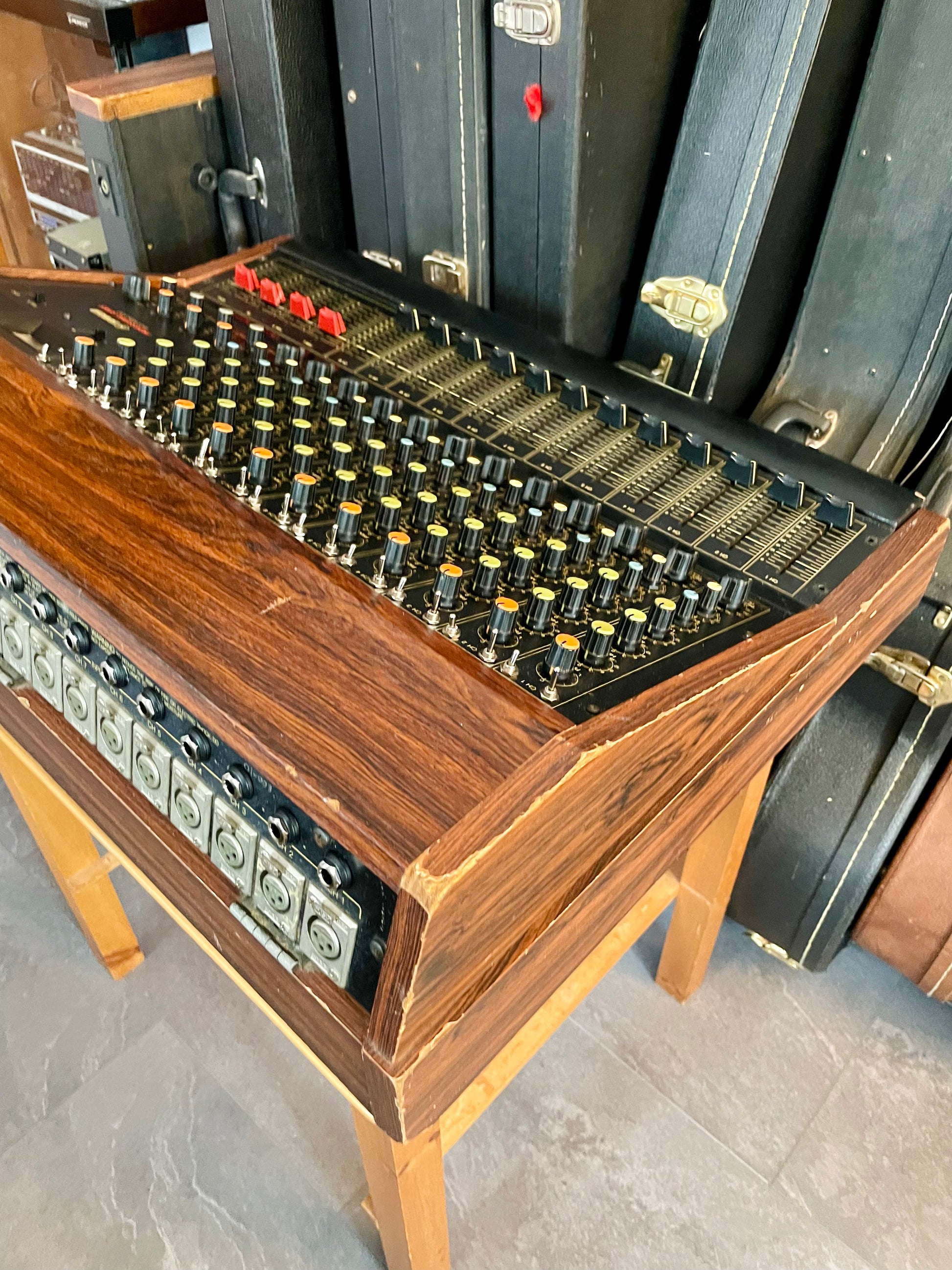

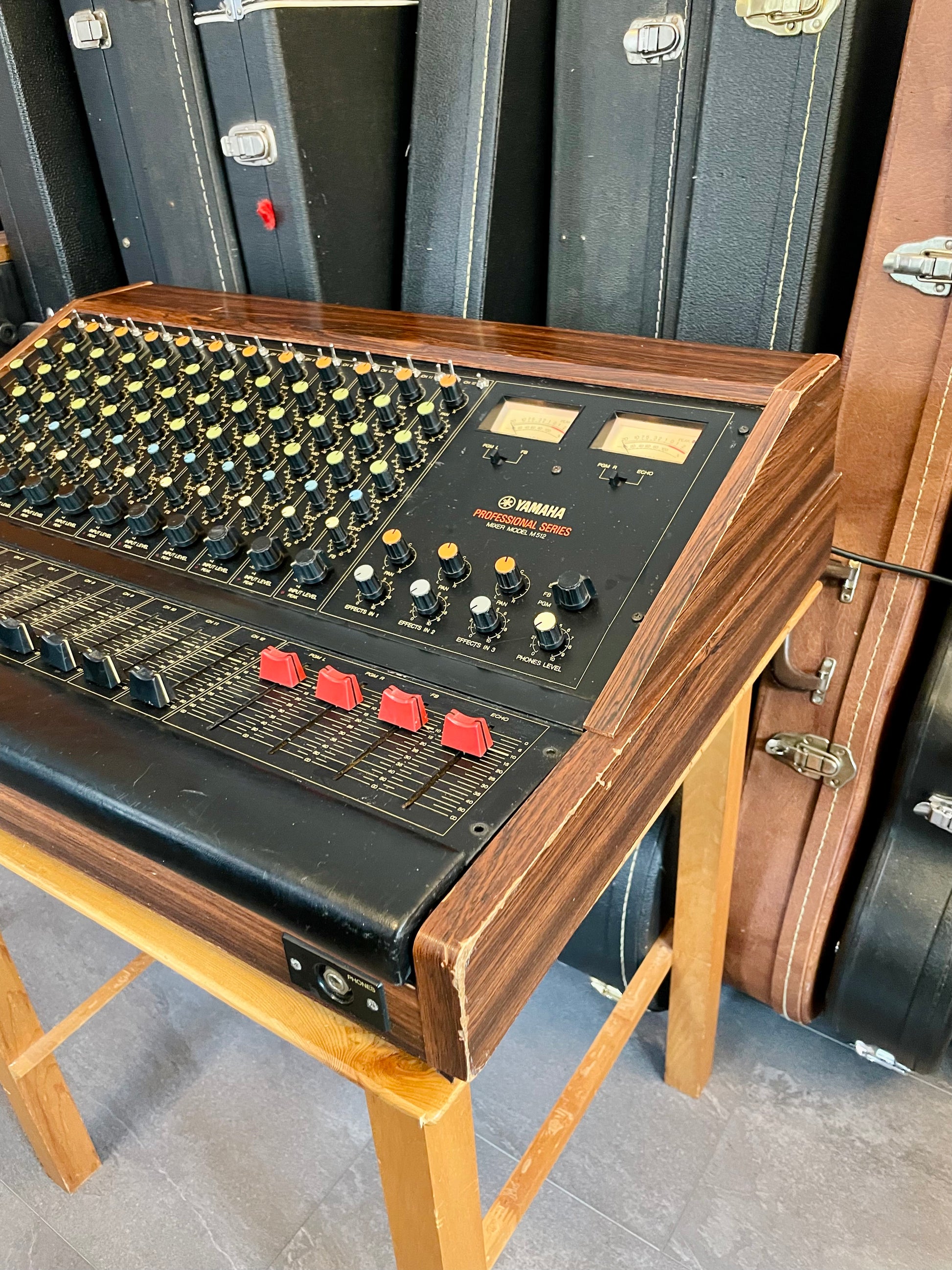

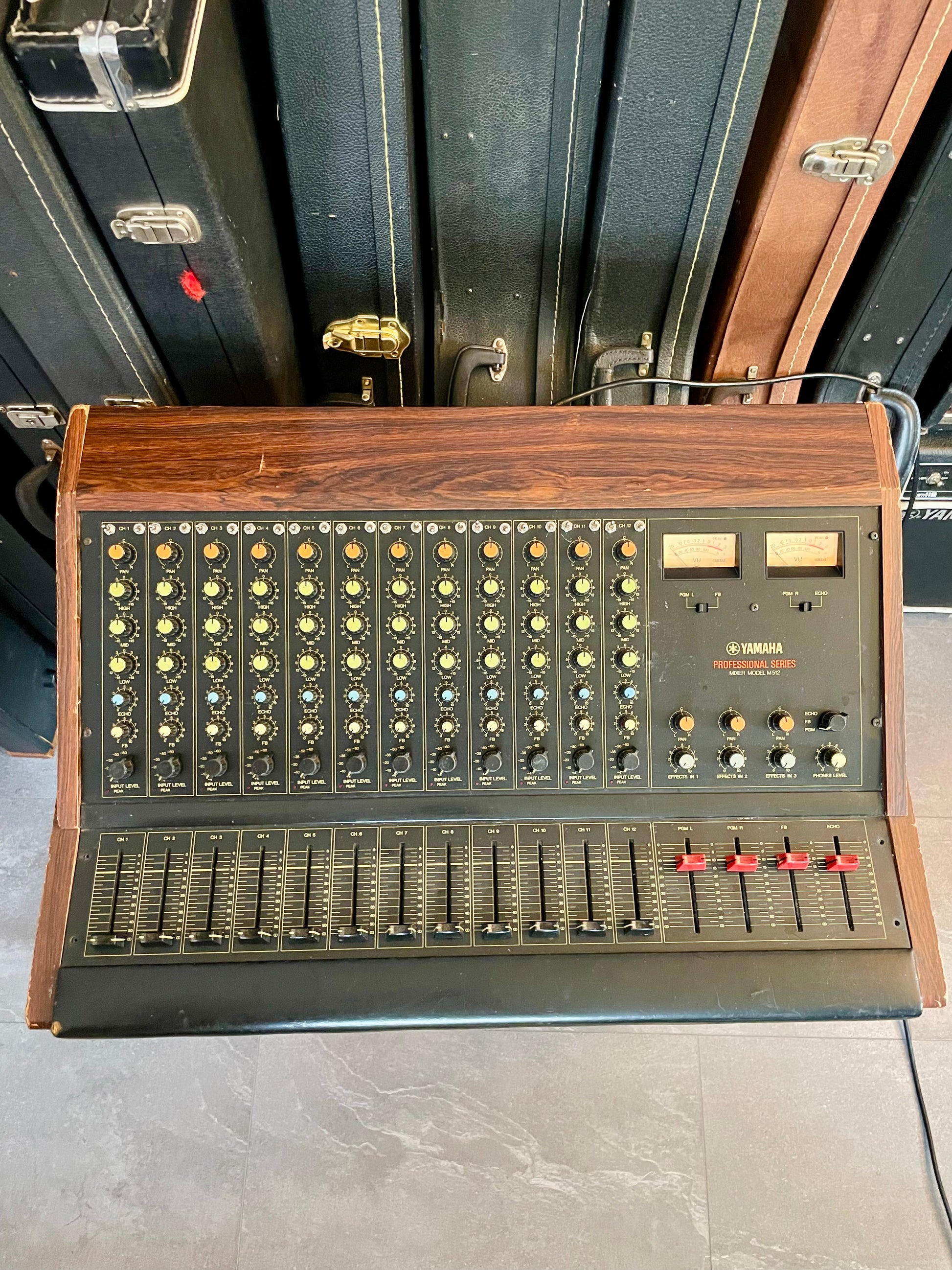

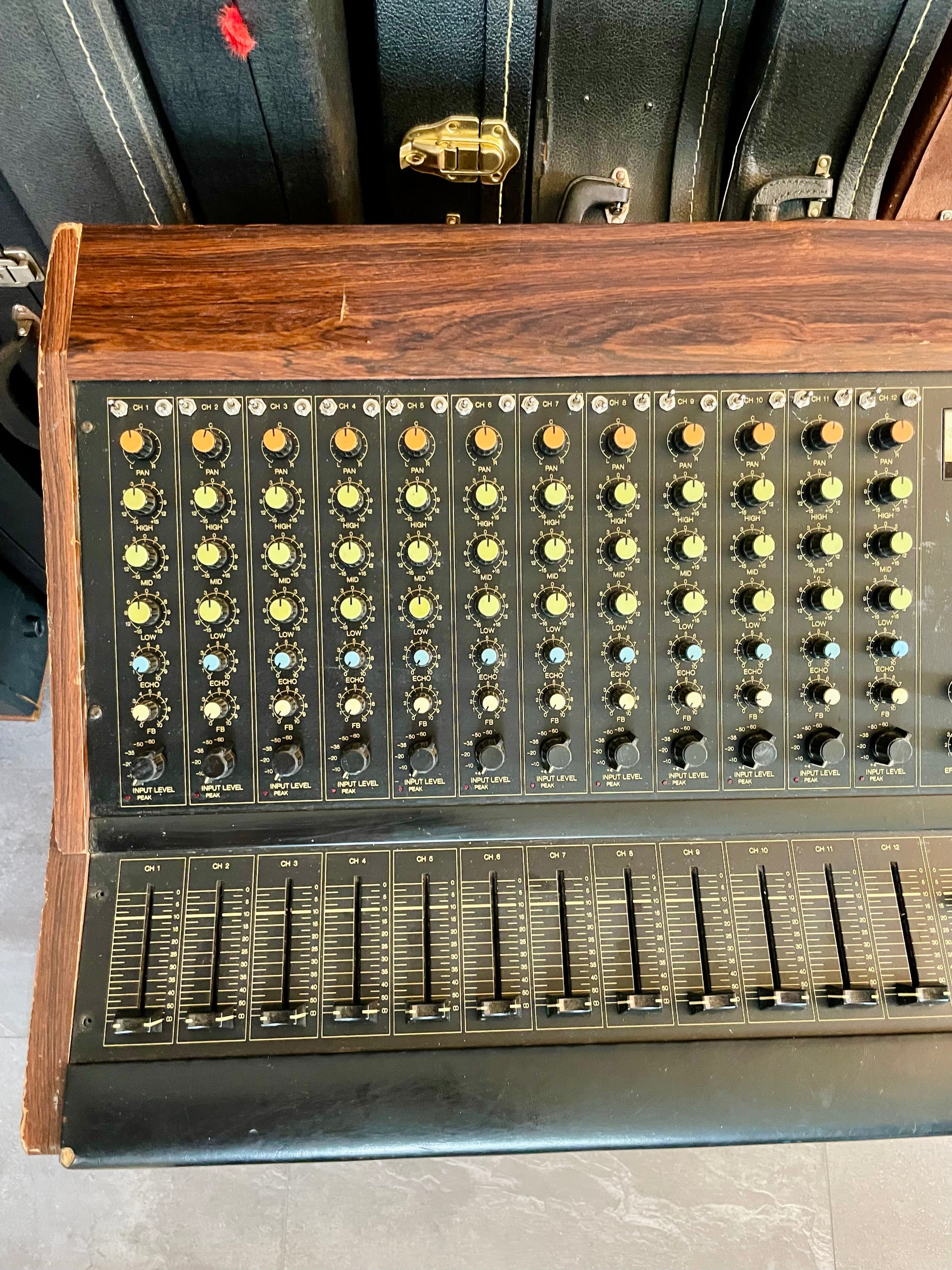

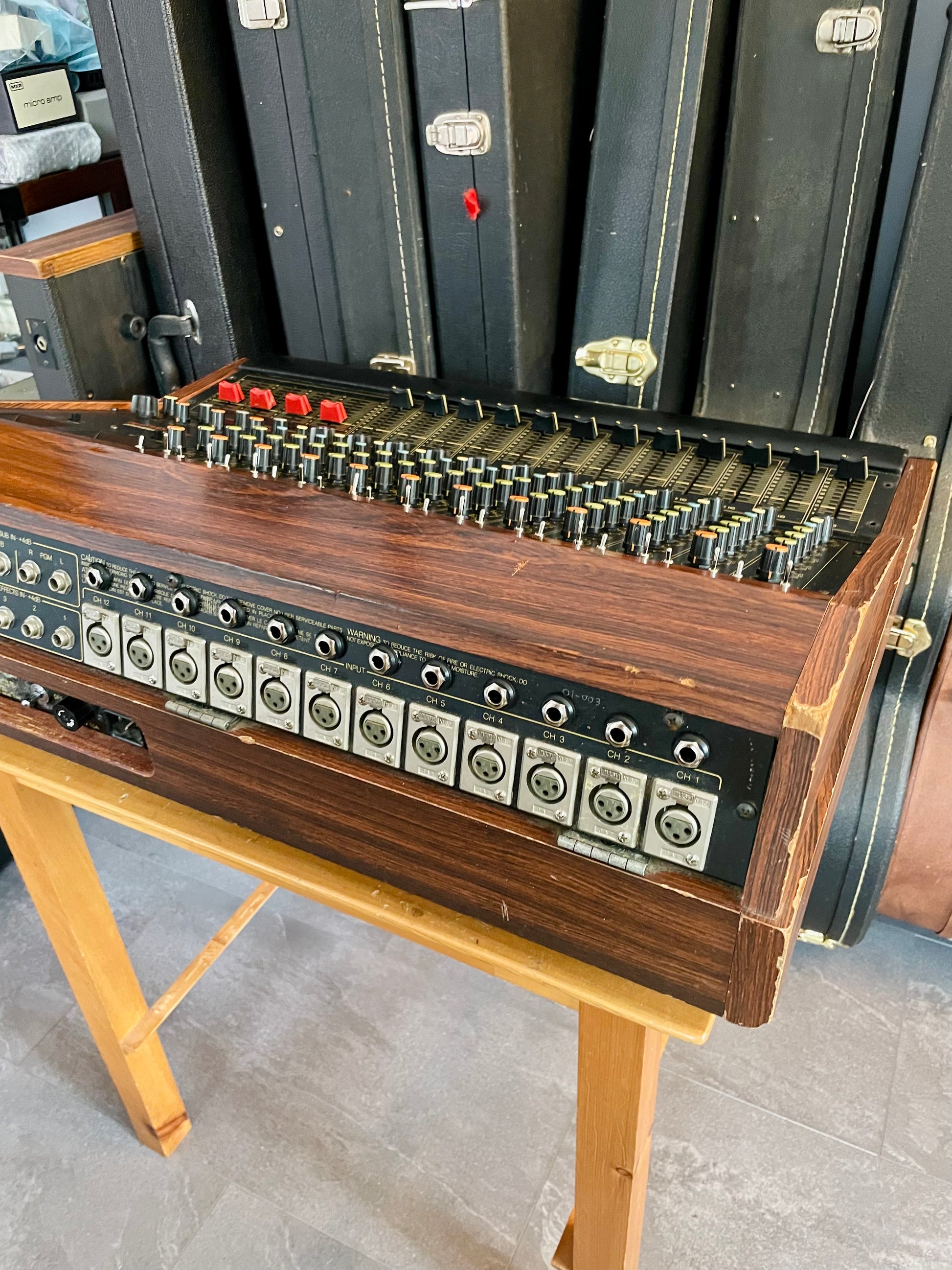

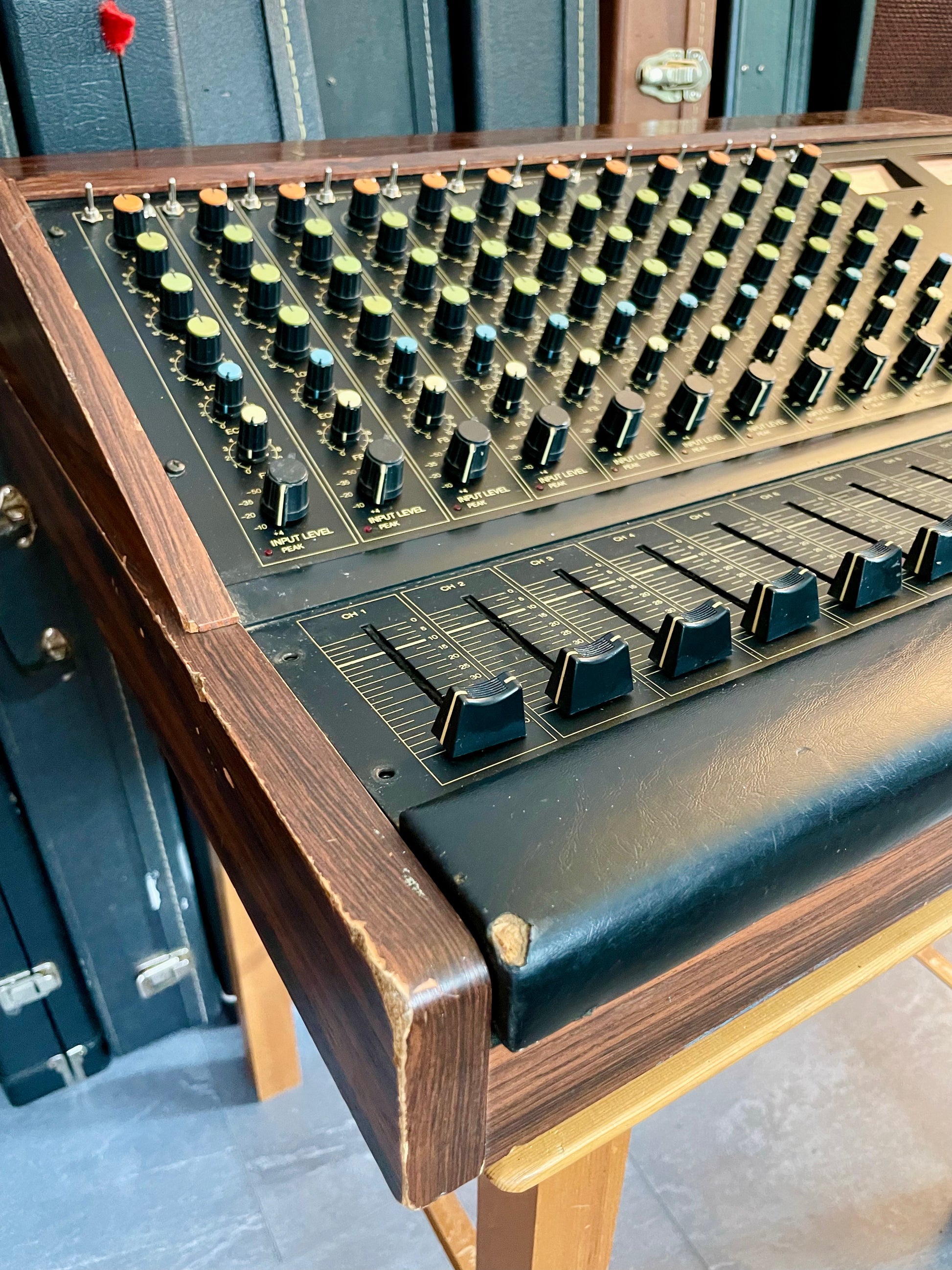

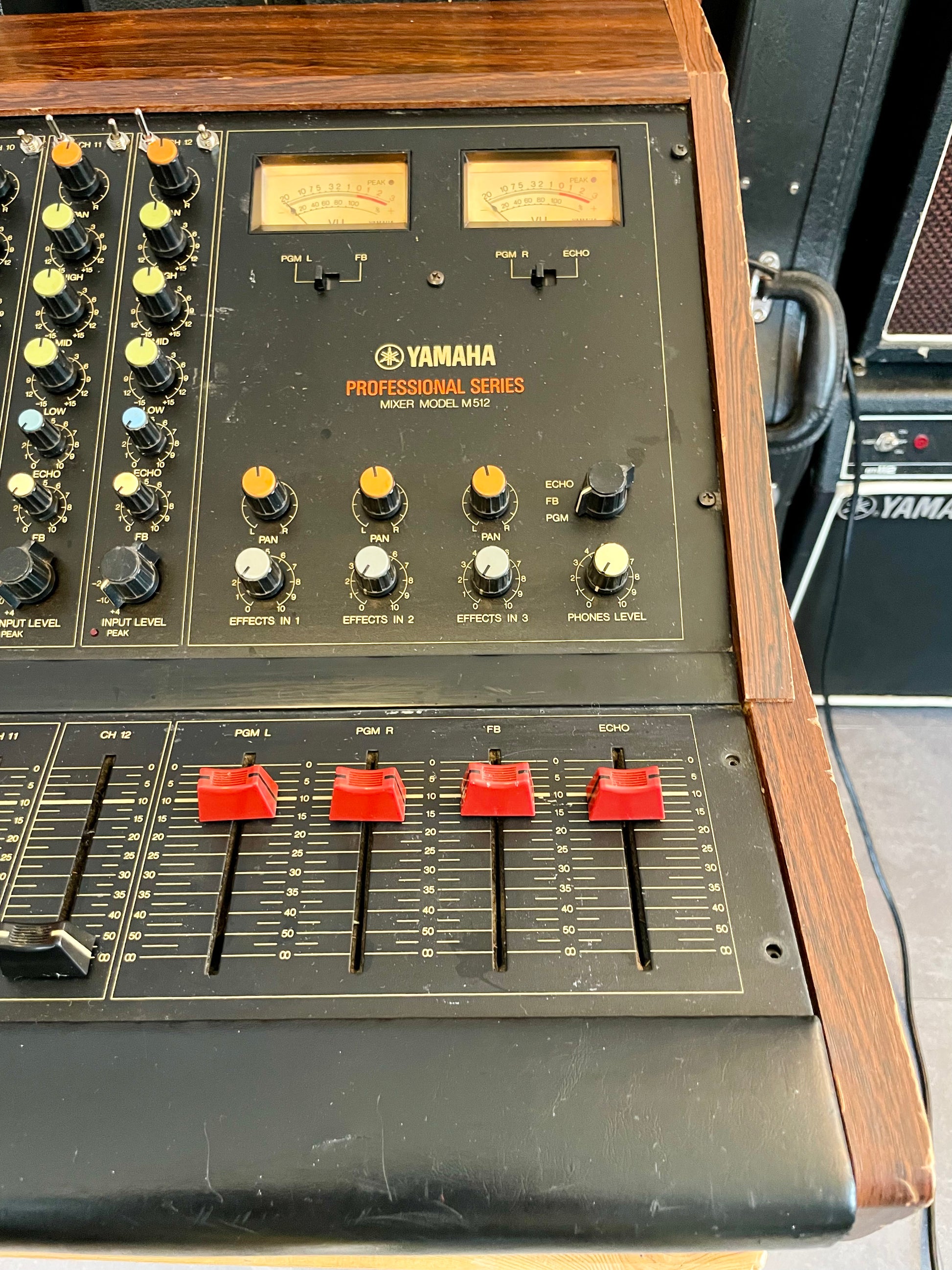

Yamaha M512 - JapaNeve with Direct Outs, Tamura transformers, Polarity Reverse & Send Switching - Fully recapped and serviced

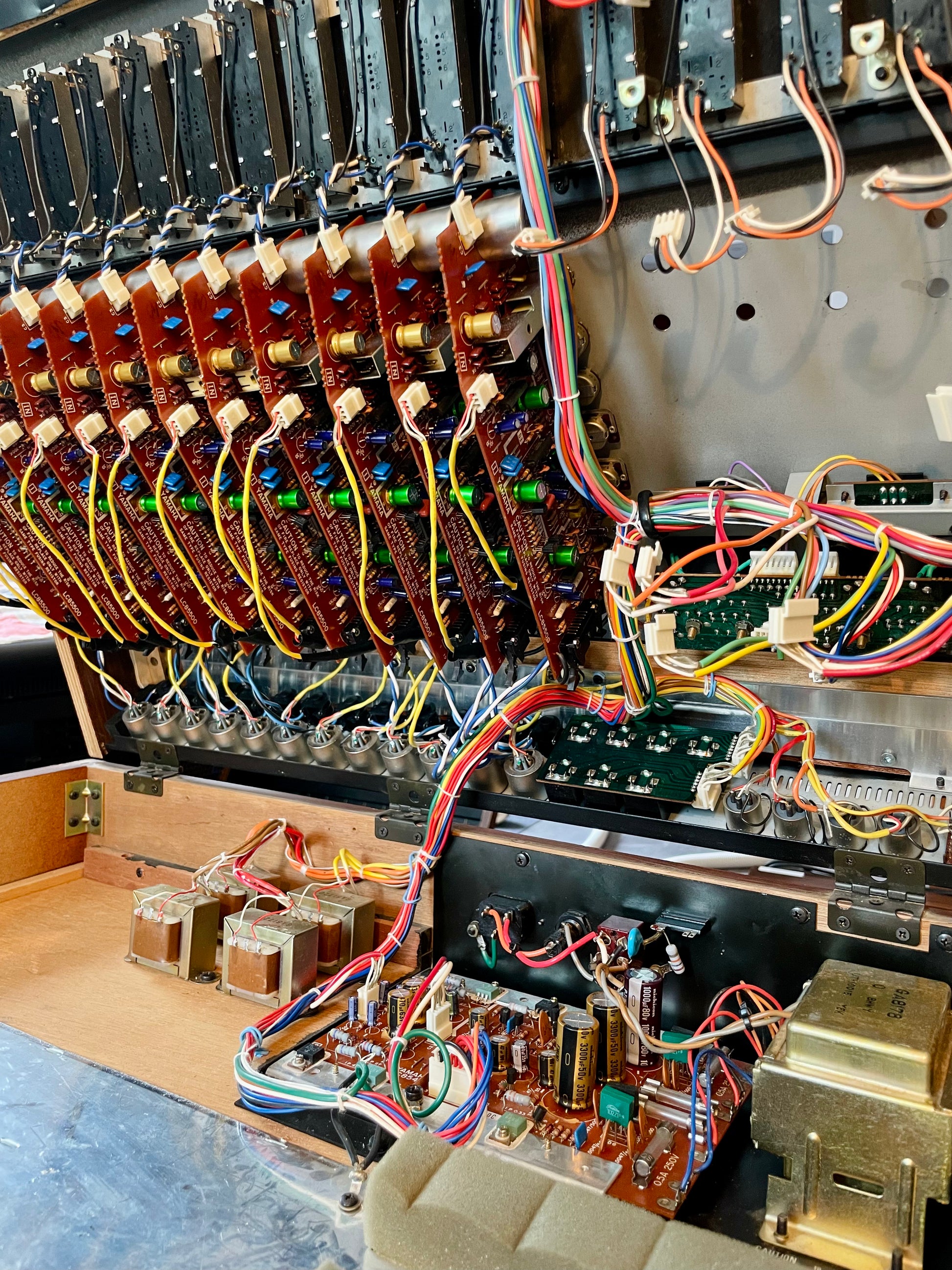

This Yamaha M512 has been fully serviced, restored, and recapped from top to bottom. Every potentiometer, switch, and fader has been cleaned and tested to ensure smooth, noise-free operation. The power supply section has been upgraded with higher-capacitance filtering for improved stability, lower noise, and improved headroom.

If you're familiar with vintage Yamaha mixers, the M512 needs little introduction. Built during Yamaha's golden era of professional analog console design.

Features & Modifications

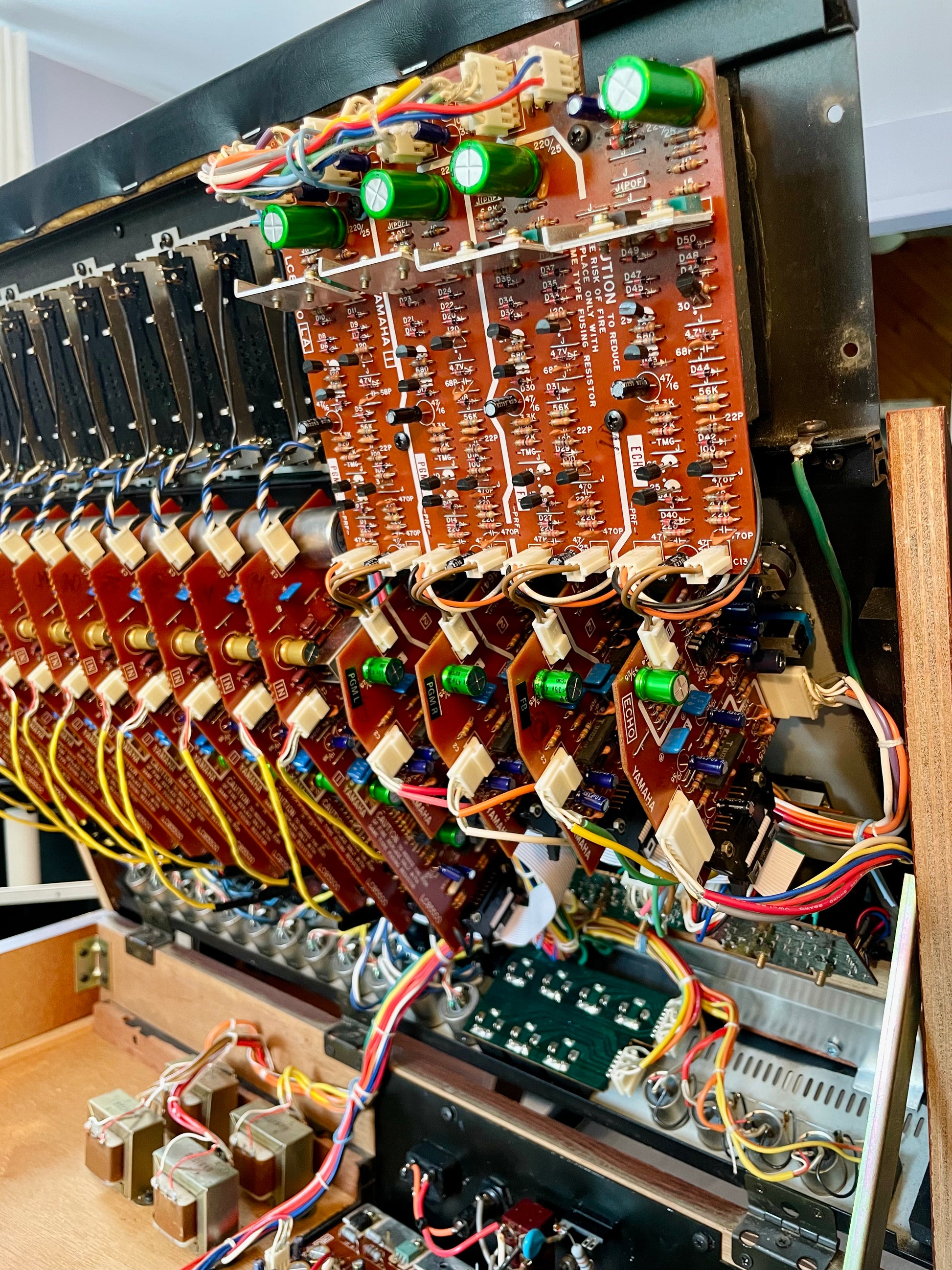

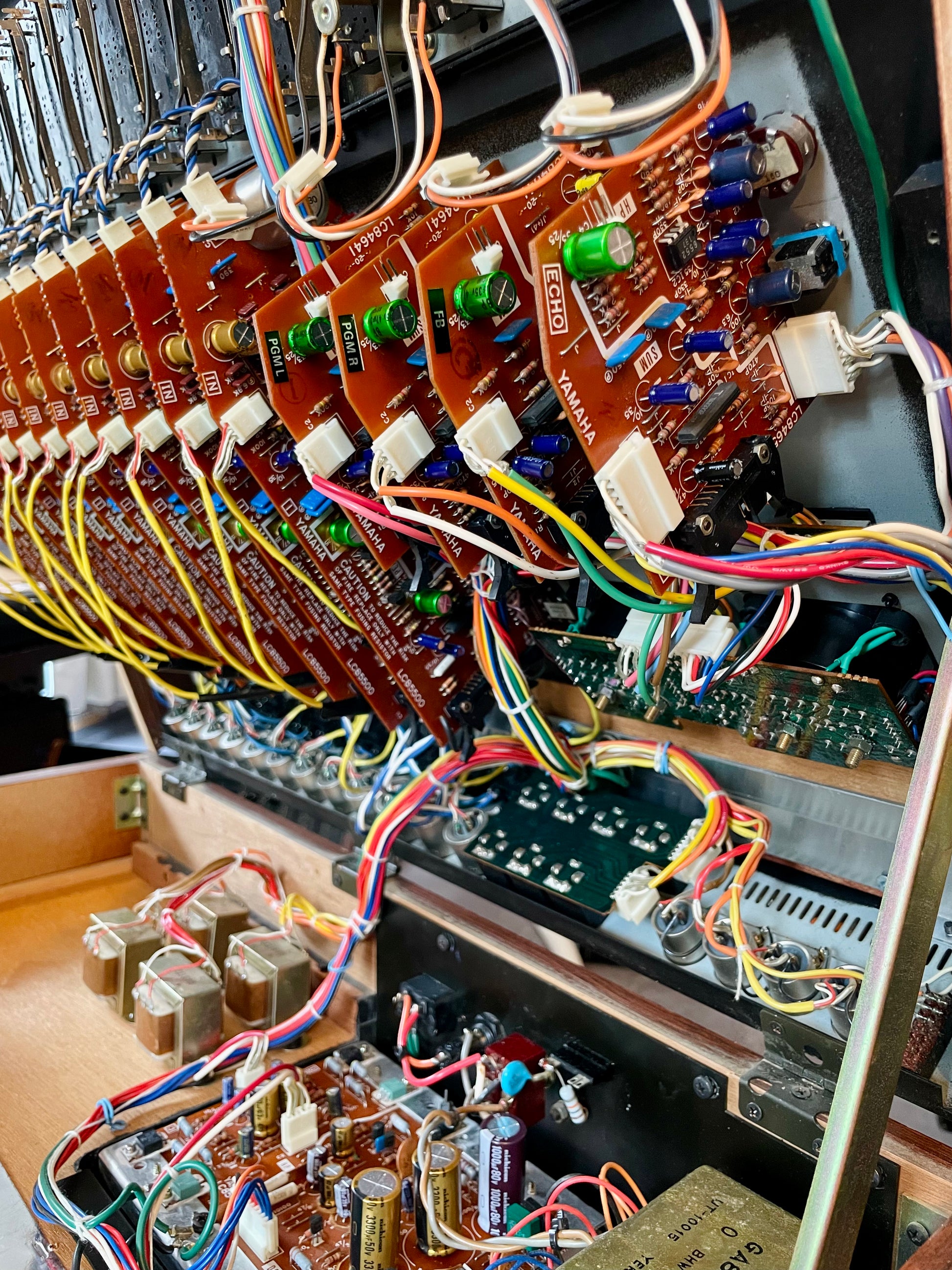

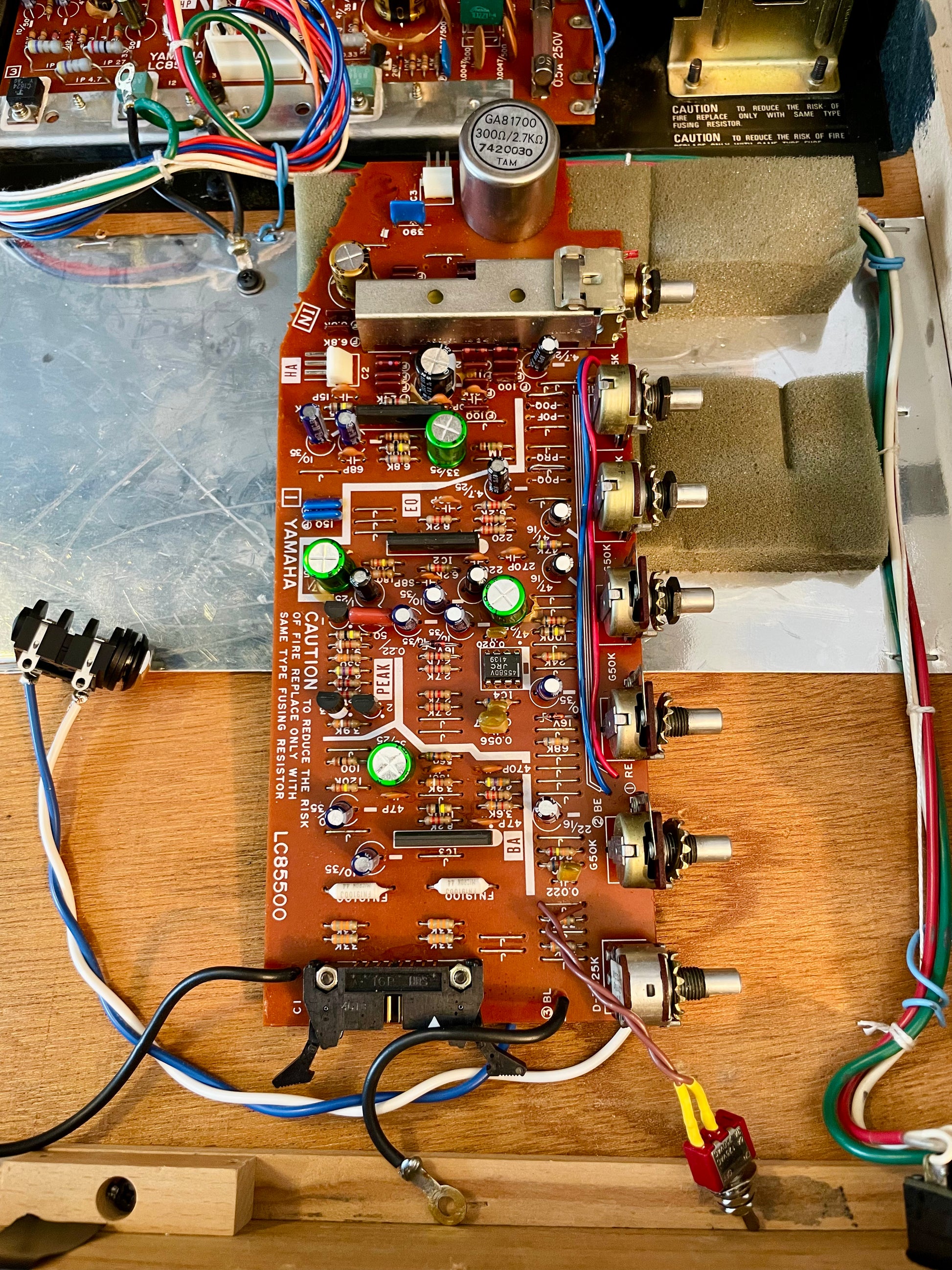

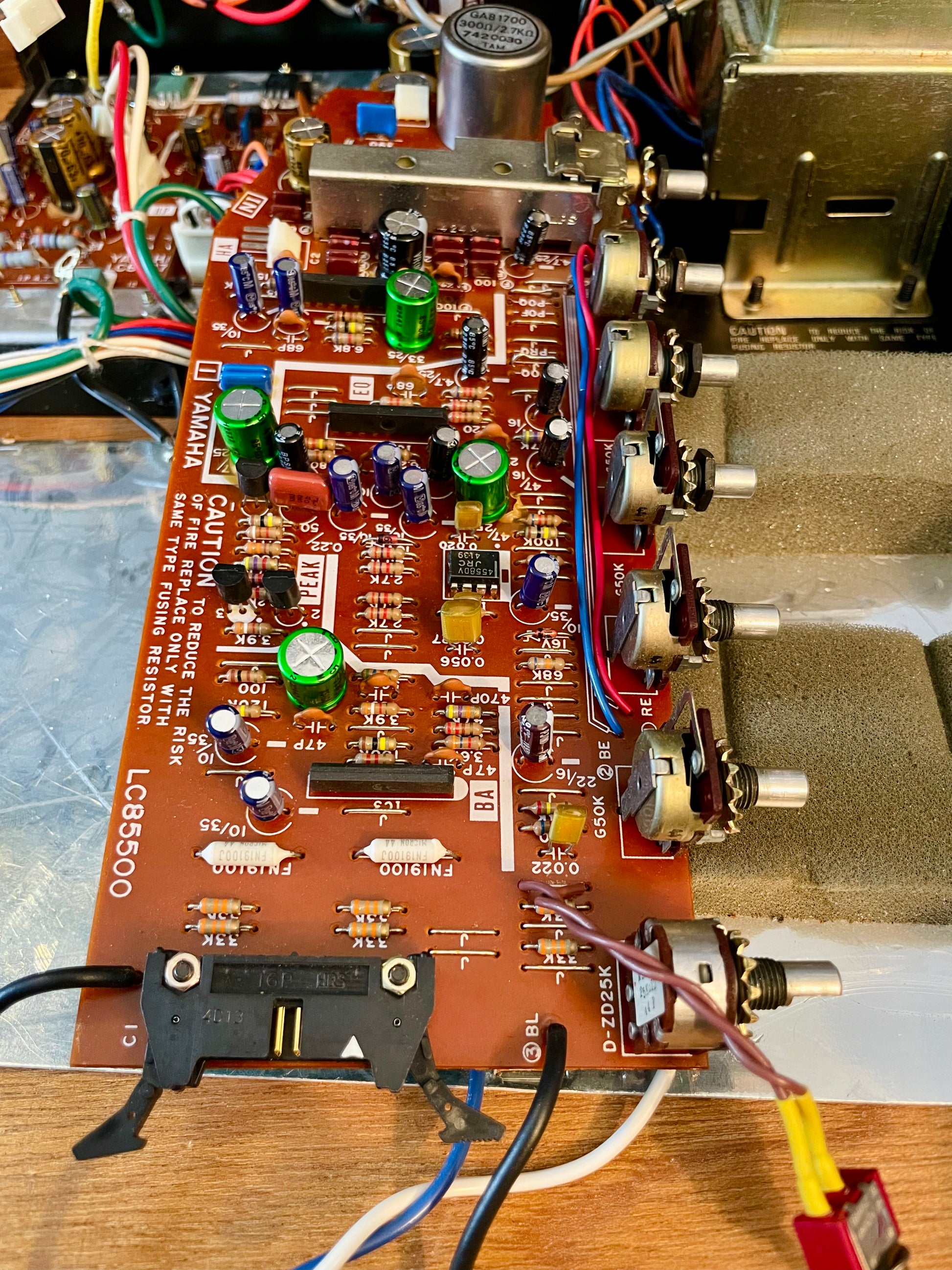

Fully Recapped & Restored

• Fully recapped with high-quality Nichicon capacitors.

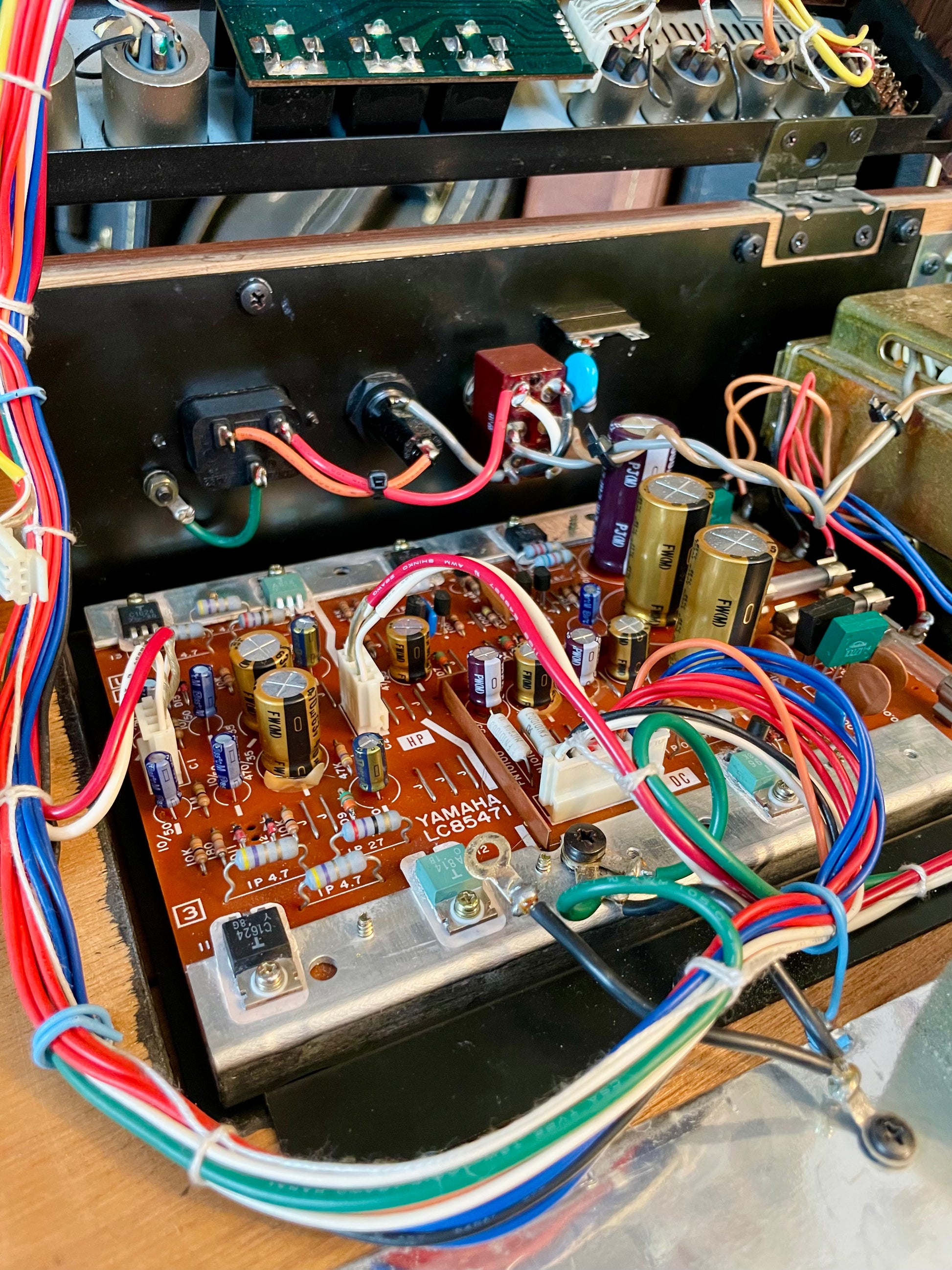

• Upgraded power supply filtering for improved stability and lower noise.

• All channels, switches, routing, meters, and outputs serviced and tested.

Direct Outs on Every Channel

• Direct outputs added to every channel.

• Post-EQ and post-fader for flexible tracking and hybrid mixing.

• Ideal for multitrack recording while retaining console character.

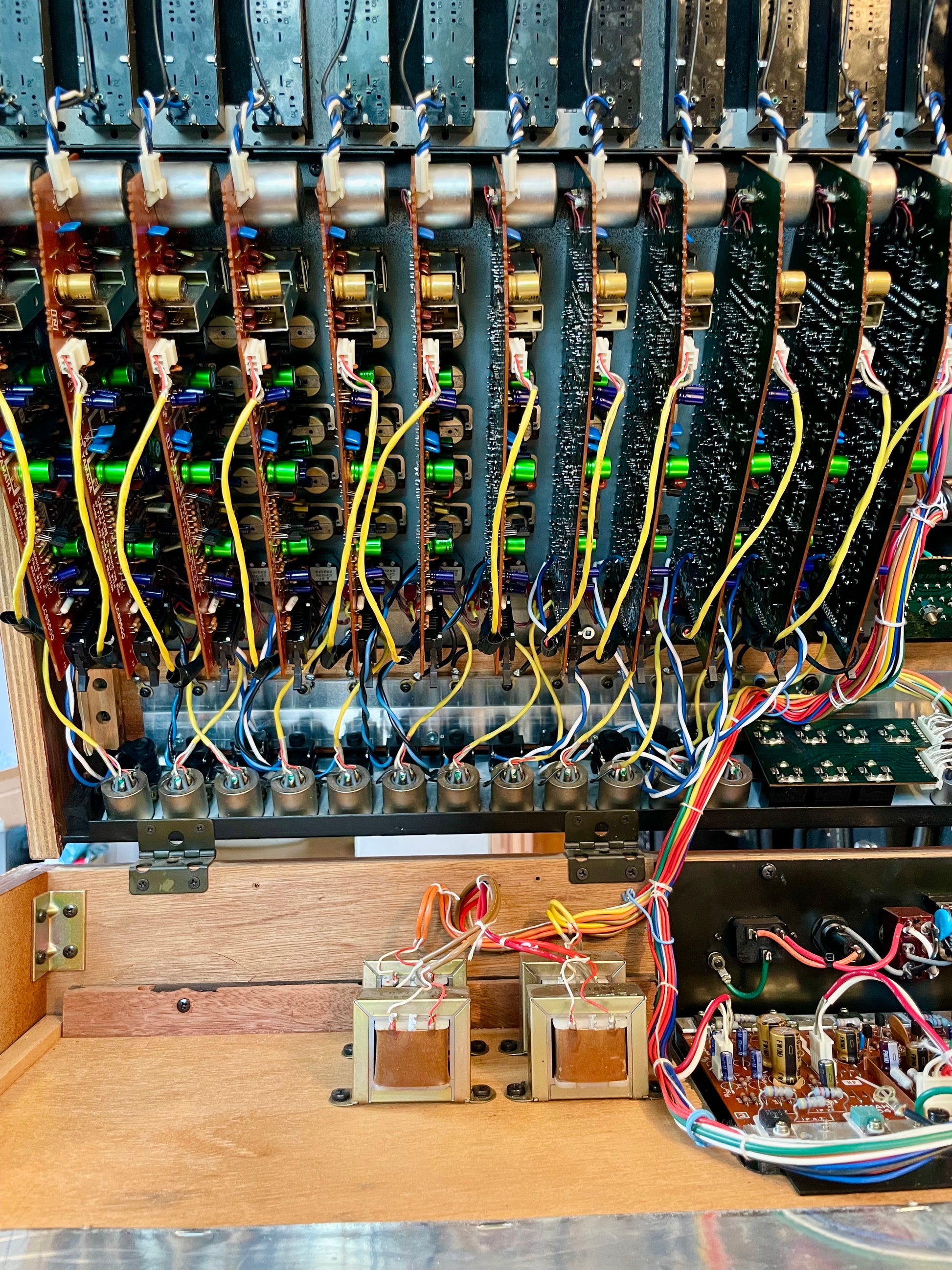

Tamura Transformers

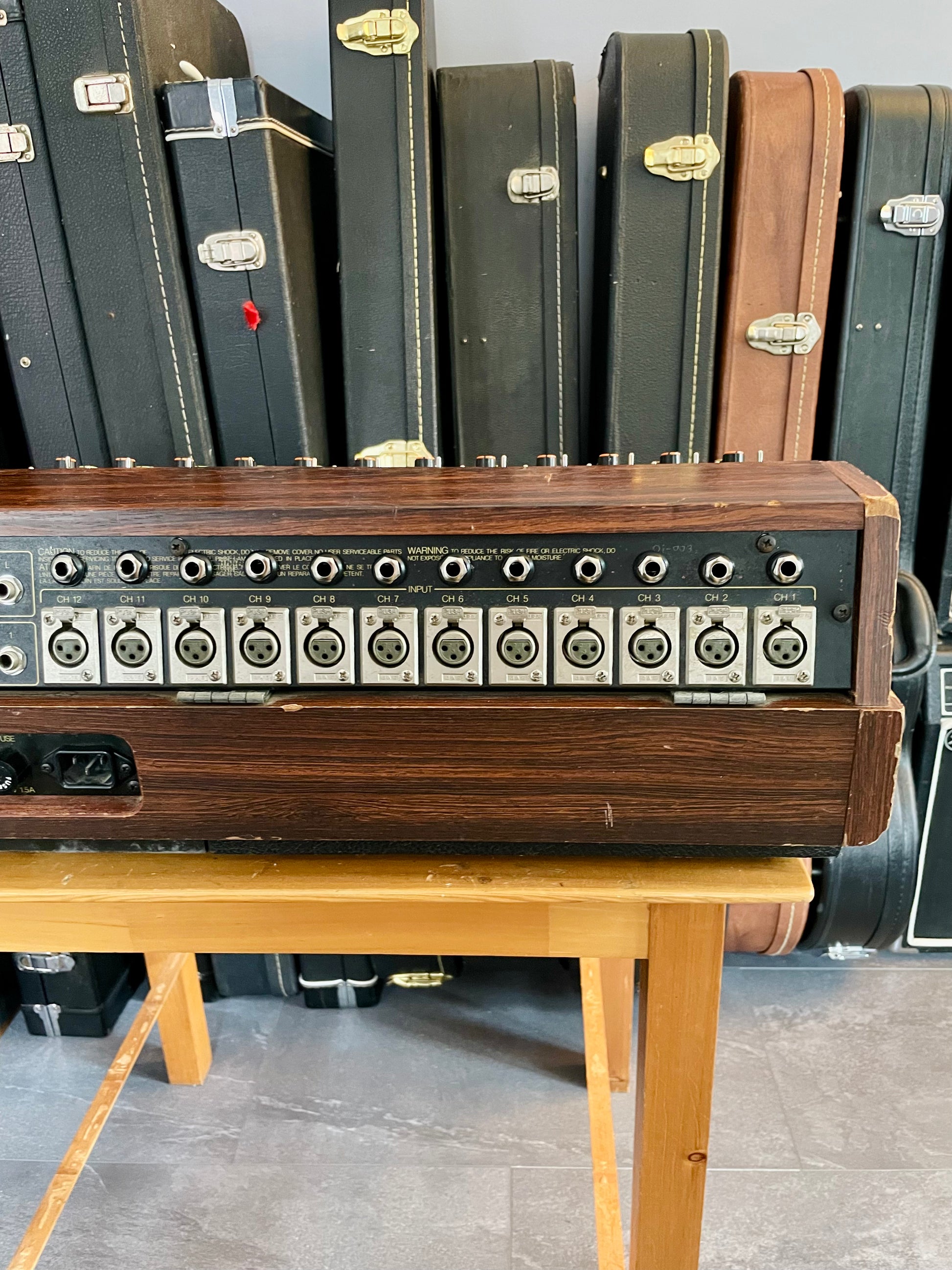

• 12 microphone input transformers.

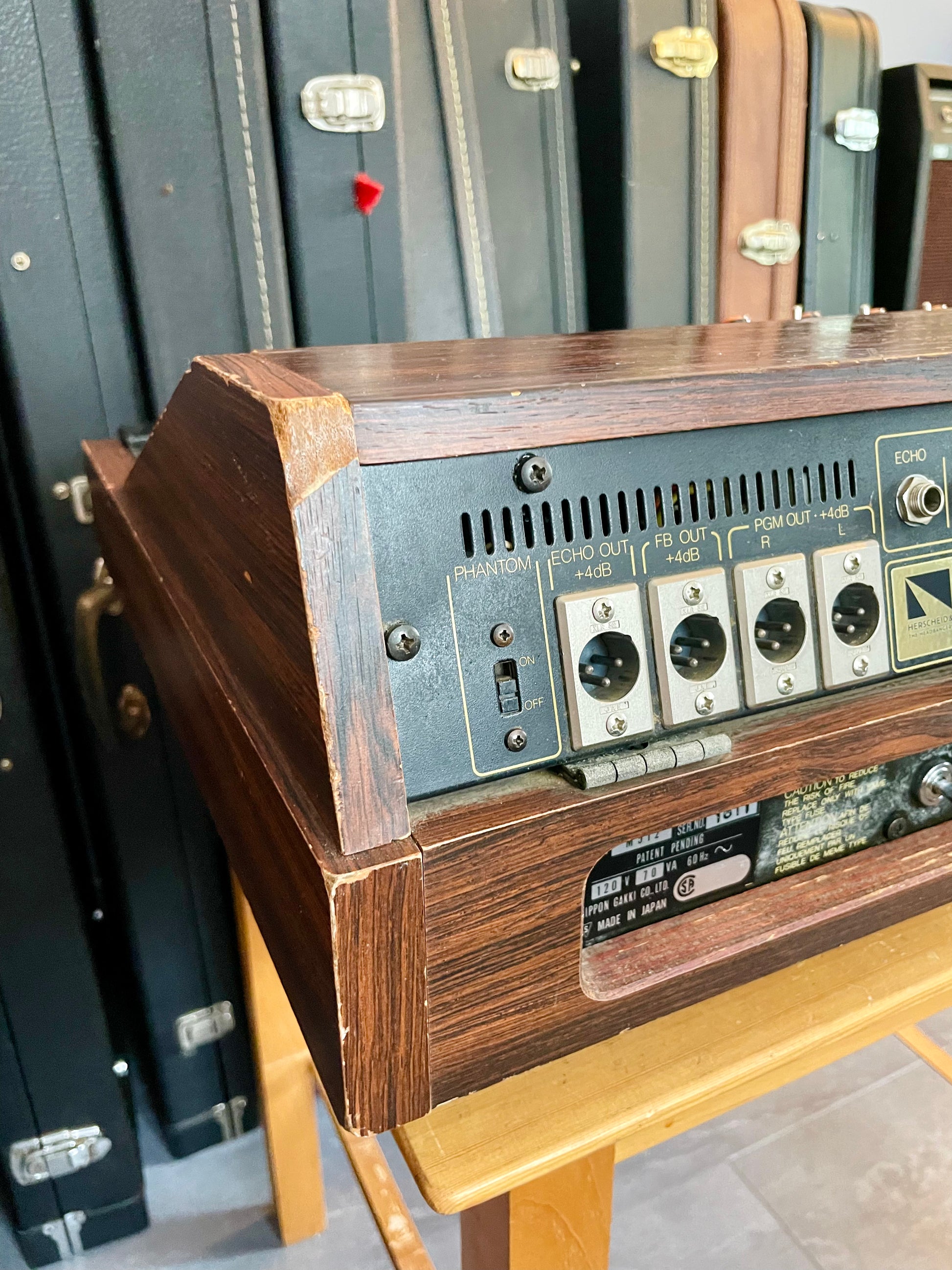

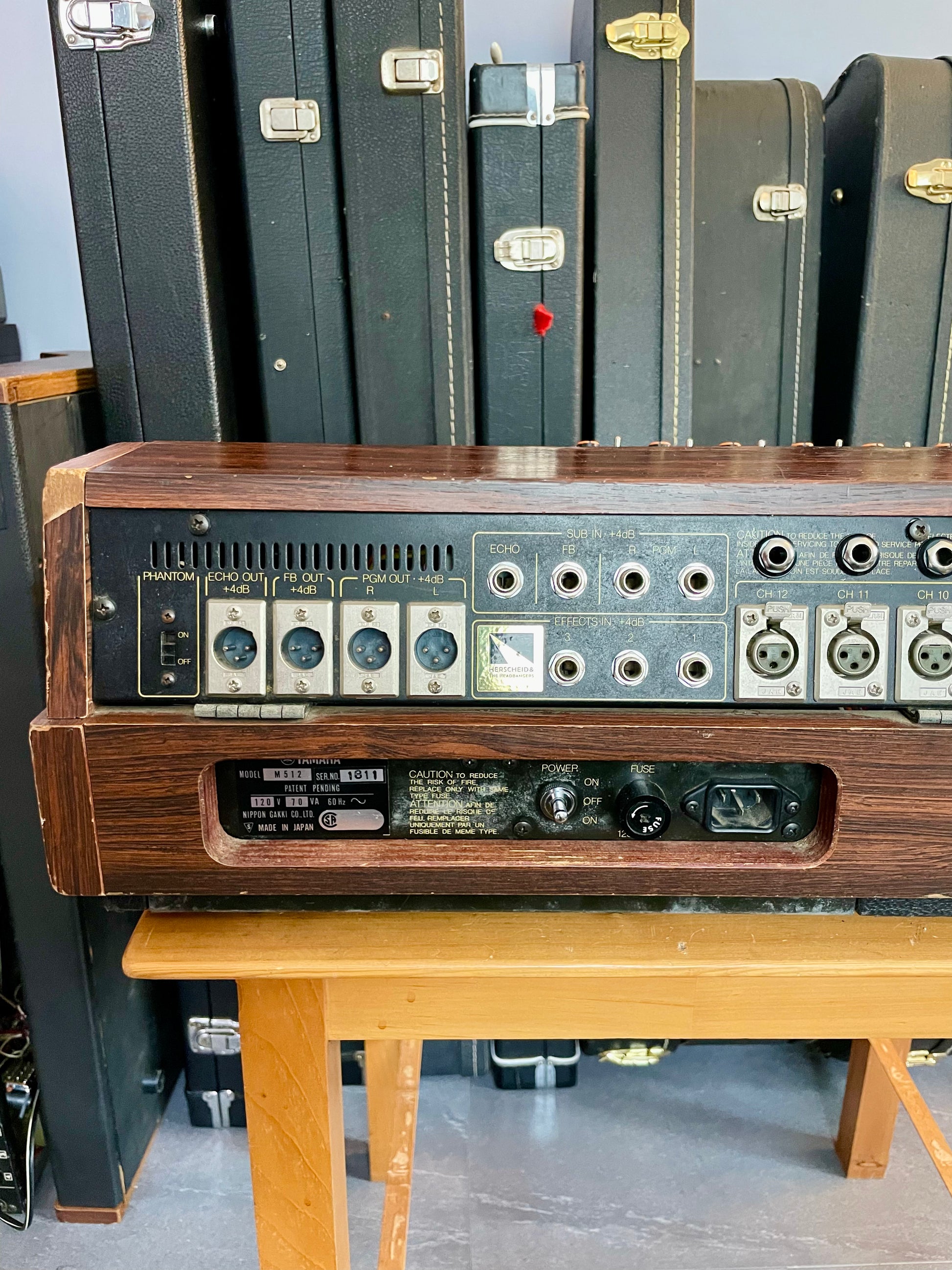

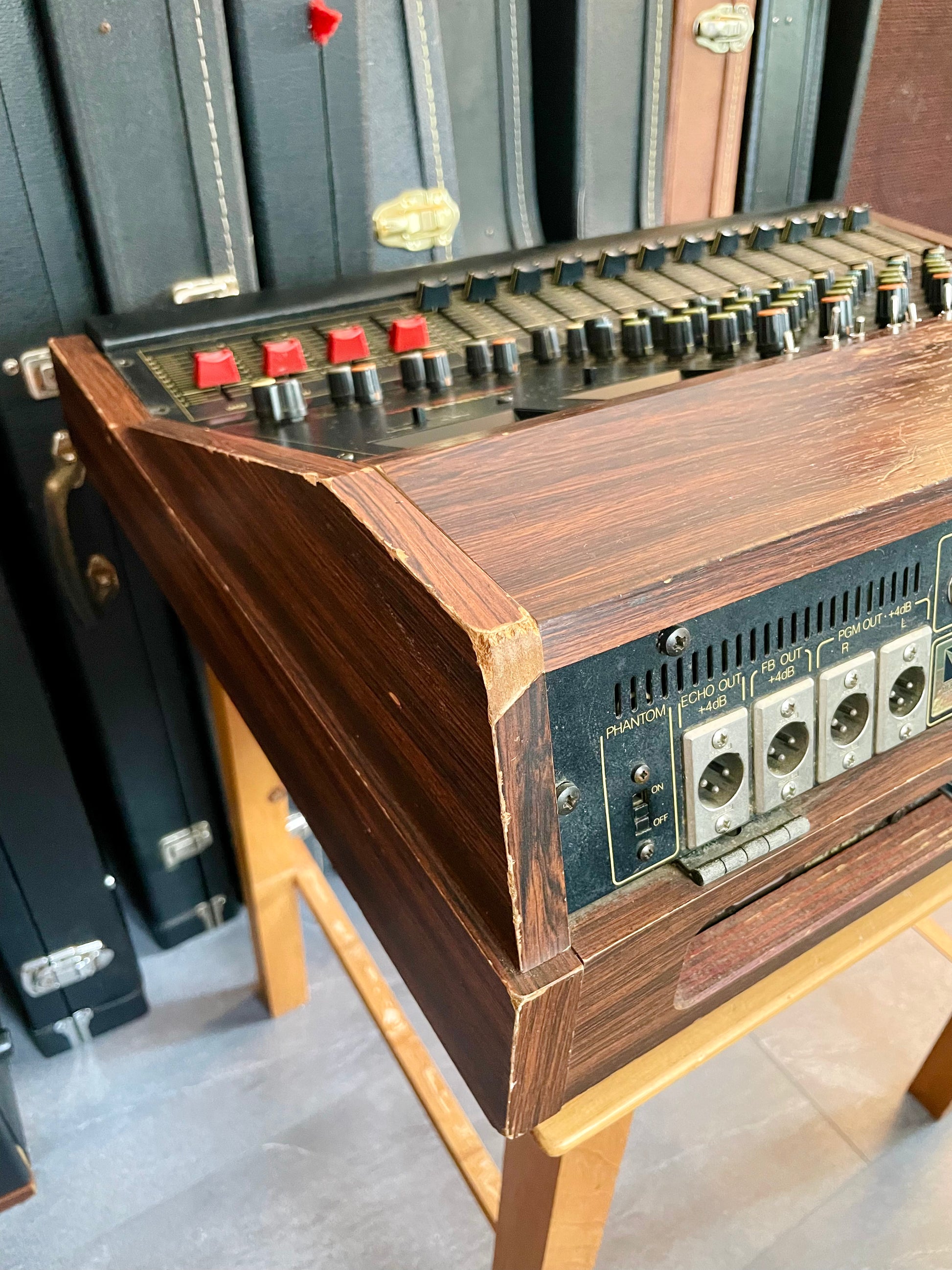

• 4 large output transformers handling PGM L–R, Echo, and Foldback.

Polarity Reverse Switch on Every Mic Input

• Per-channel polarity reverse on all mic inputs.

• Useful for drums, multi-mic setups, and phase correction.

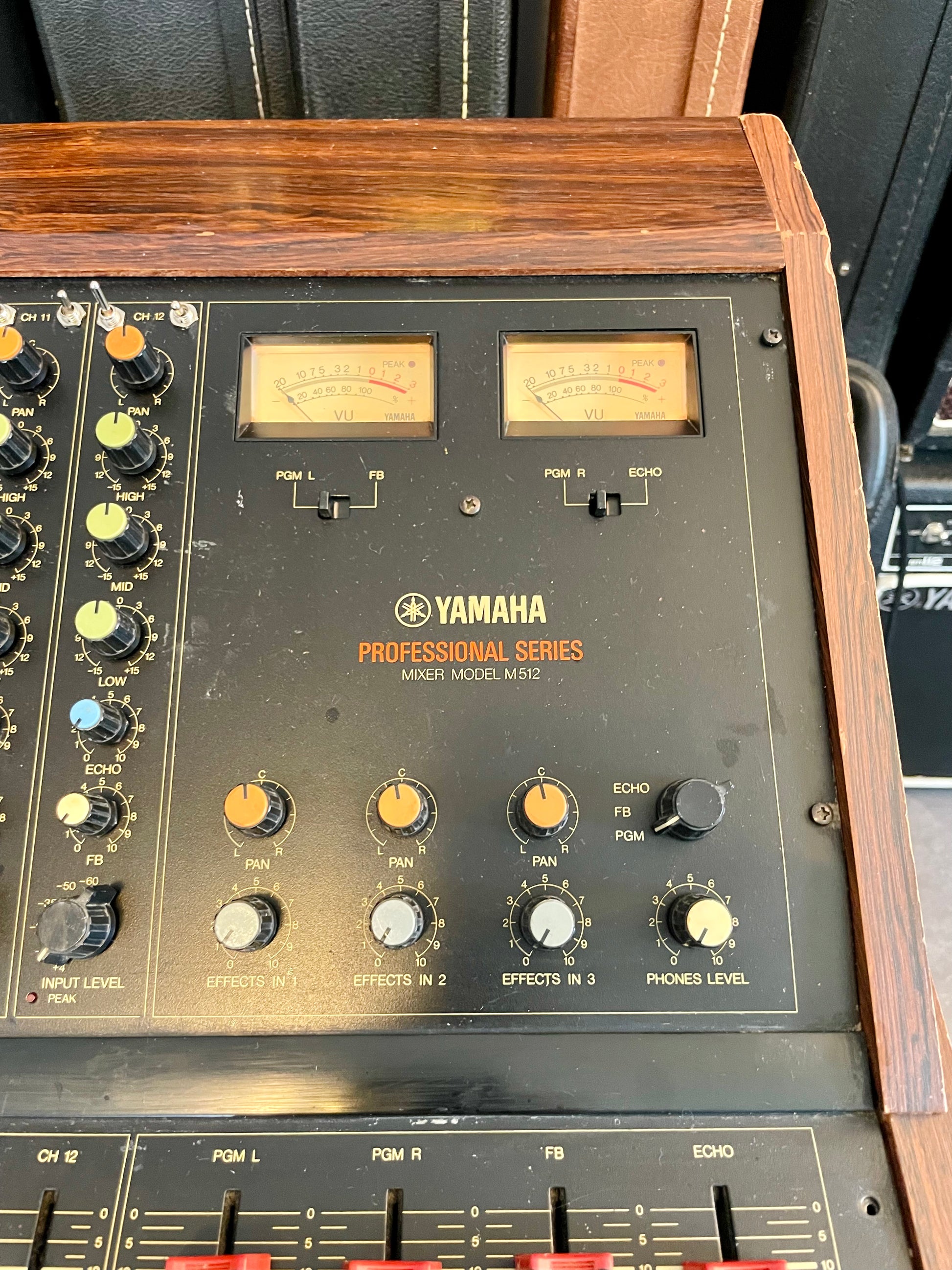

Main PGM Send On / Off

Choose whether you want to route the channel signal through the mixer's main bus, summed and output via the Tamura output transformers, or bypass it so the signal goes only through the direct out. (Echo and Foldback remain unchanged and operate independently.)

Sound & Character

The M512 delivers everything engineers love about classic Yamaha consoles: powerful punch, excellent transient response, musical EQs, and a surprisingly quiet signal path. It excels on drums, guitars, bass, synths, vocals, and full-band recordings.

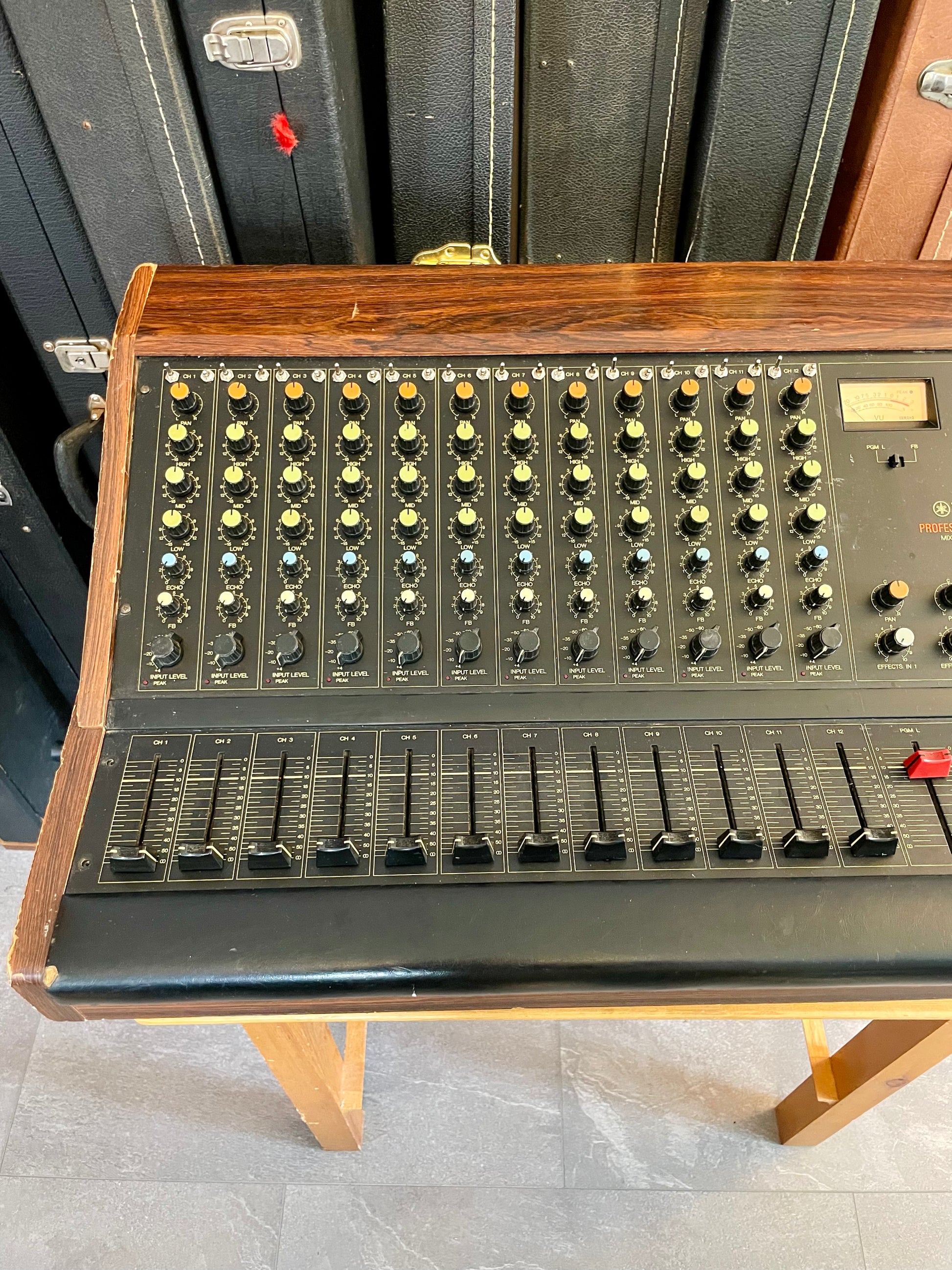

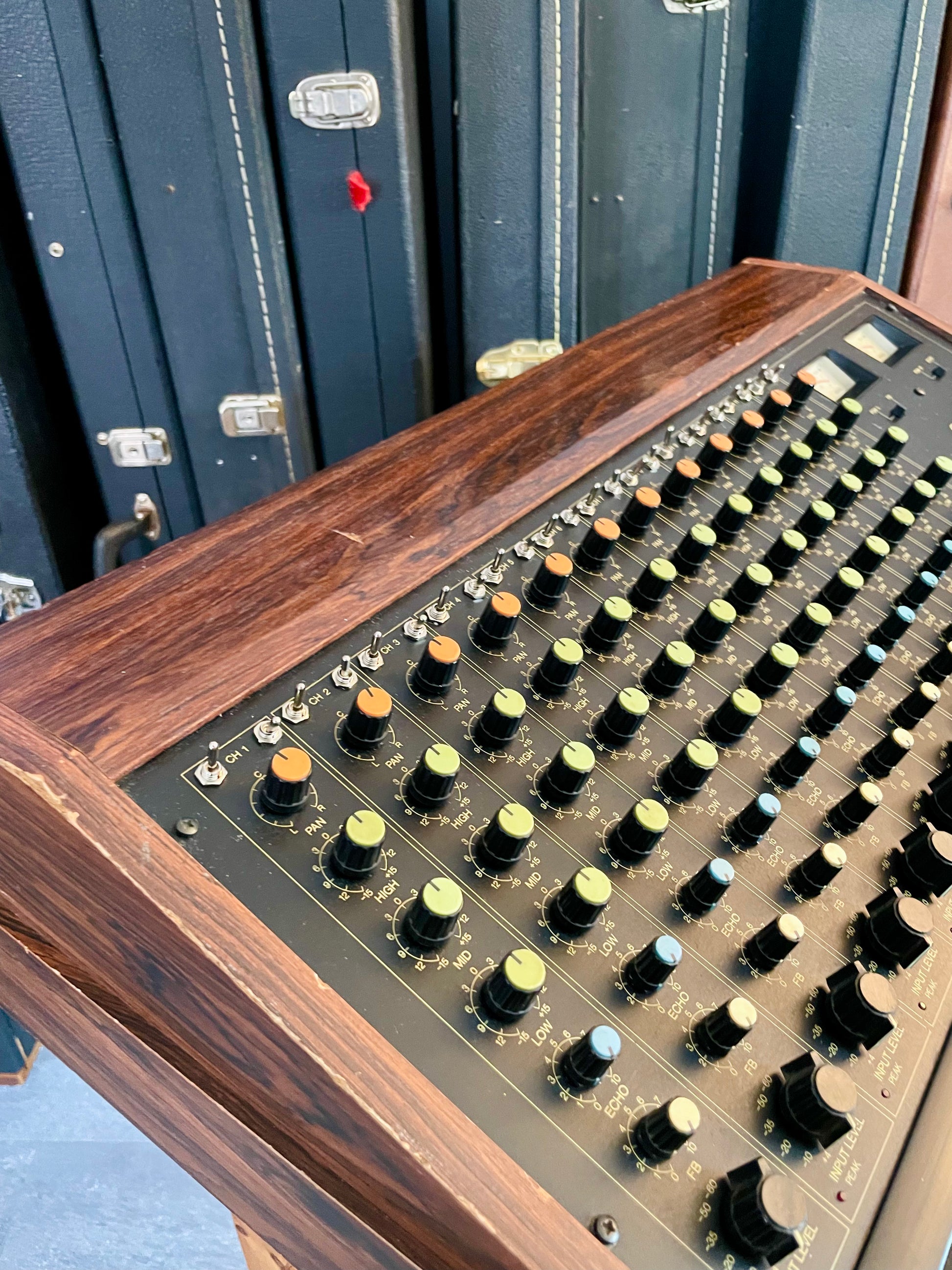

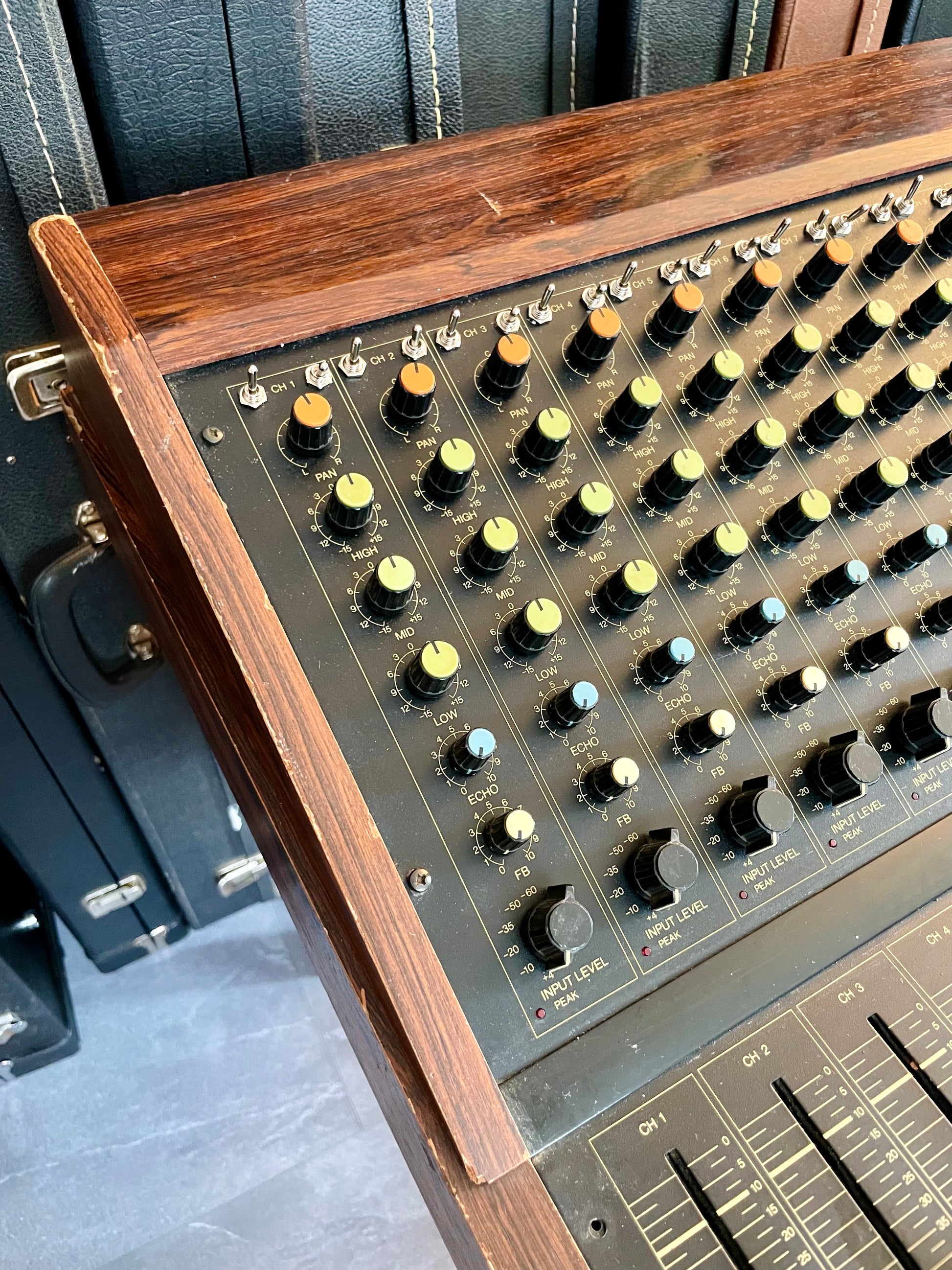

The EQ section is a straightforward 3‑band design with a sweepable midrange, but don’t let that simplicity fool you — the low EQ is absolutely massive. This is where the M512 really comes alive. You can dial in that deep, weighty bass and it just hits — tight, punchy, and seriously powerful without ever turning muddy. It’s the kind of low end that makes kick drums feel like they’re moving air in the room and bass guitars sit with authority in a mix.

At the same time, the midrange stays musical and easy to shape, so you can quickly carve out space or add presence without overcomplicating the workflow. Everything responds in a very predictable, musical way, so small adjustments go a long way without ever sounding brittle or exaggerated. Combined with the console’s generous headroom, it stays clean and controlled even on dynamic sources like drums, bass, and full mixes pushed at higher levels.

Whether you're tracking through it, summing with it, or using it as the centerpiece of a hybrid studio, the M512 brings a depth, weight, and analog character that modern budget mixers simply cannot replicate.

Like other vintage Yamaha M, PM, and MQ series mixers, the M512 shines for tracking and summing, delivering loud, punchy mixes with unmistakable analog character. With the addition of post-EQ/post-fader direct outs, polarity reverse switching, and per-channel send control, this console is now better equipped than ever for modern recording workflows while preserving everything that made these Yamaha desks legendary.
