Yamaha PM-430 "Japa-Neve" fully recapped + Direct-Out Headbangers Mod! Tamura transformers 8-Channel Mixing Console 1970s

At Herscheid & the Headbangers: Fully Serviced & Recapped Yamaha PM-430 with TRUE Balanced Direct Outs – Very Good Condition

This Yamaha PM-430 has been fully serviced and recapped and now runs quietly, smoothly and reliably. All faders and potentiometers move cleanly without crackle and it is ready for many more decades of real analog duty.

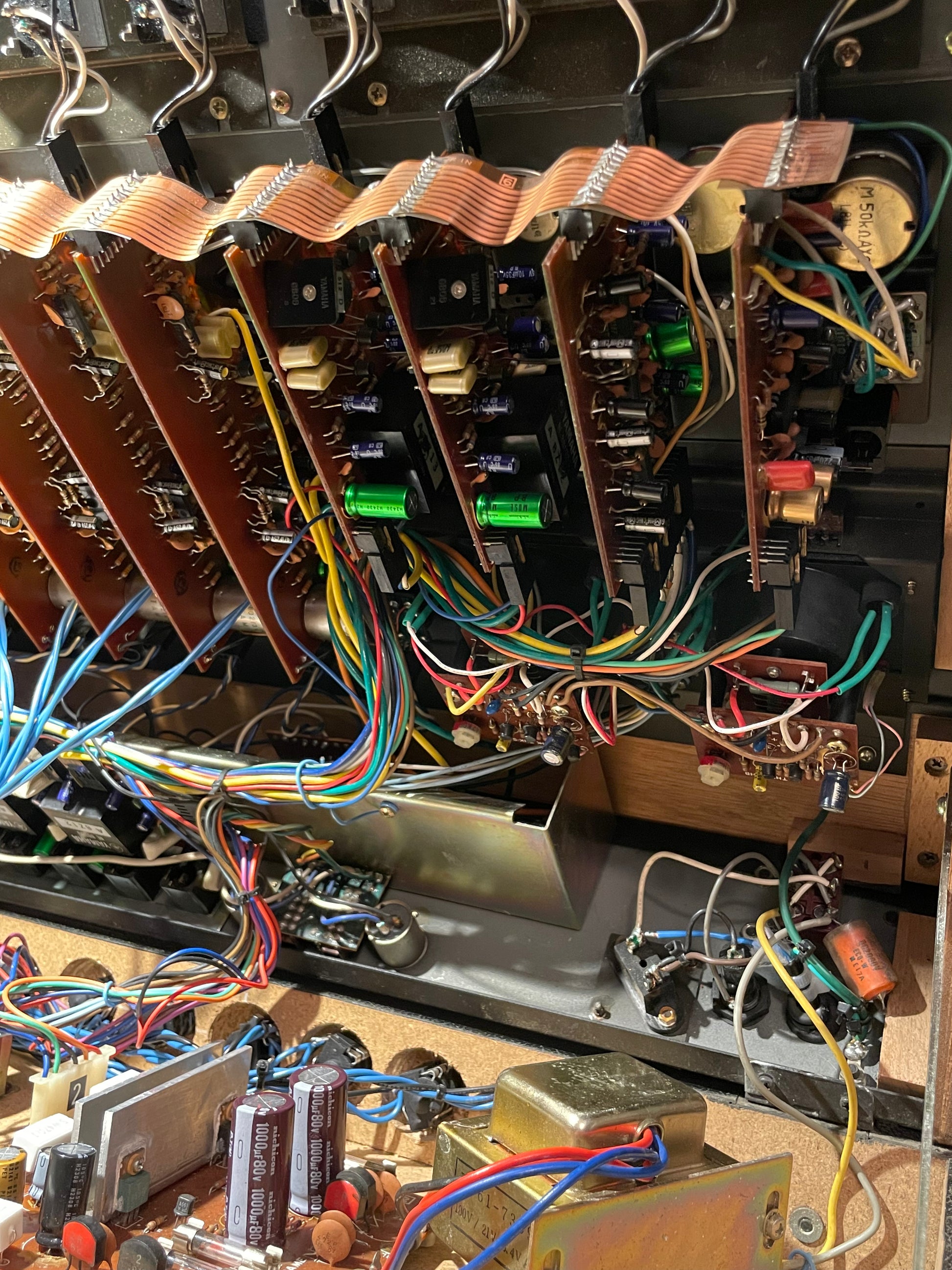

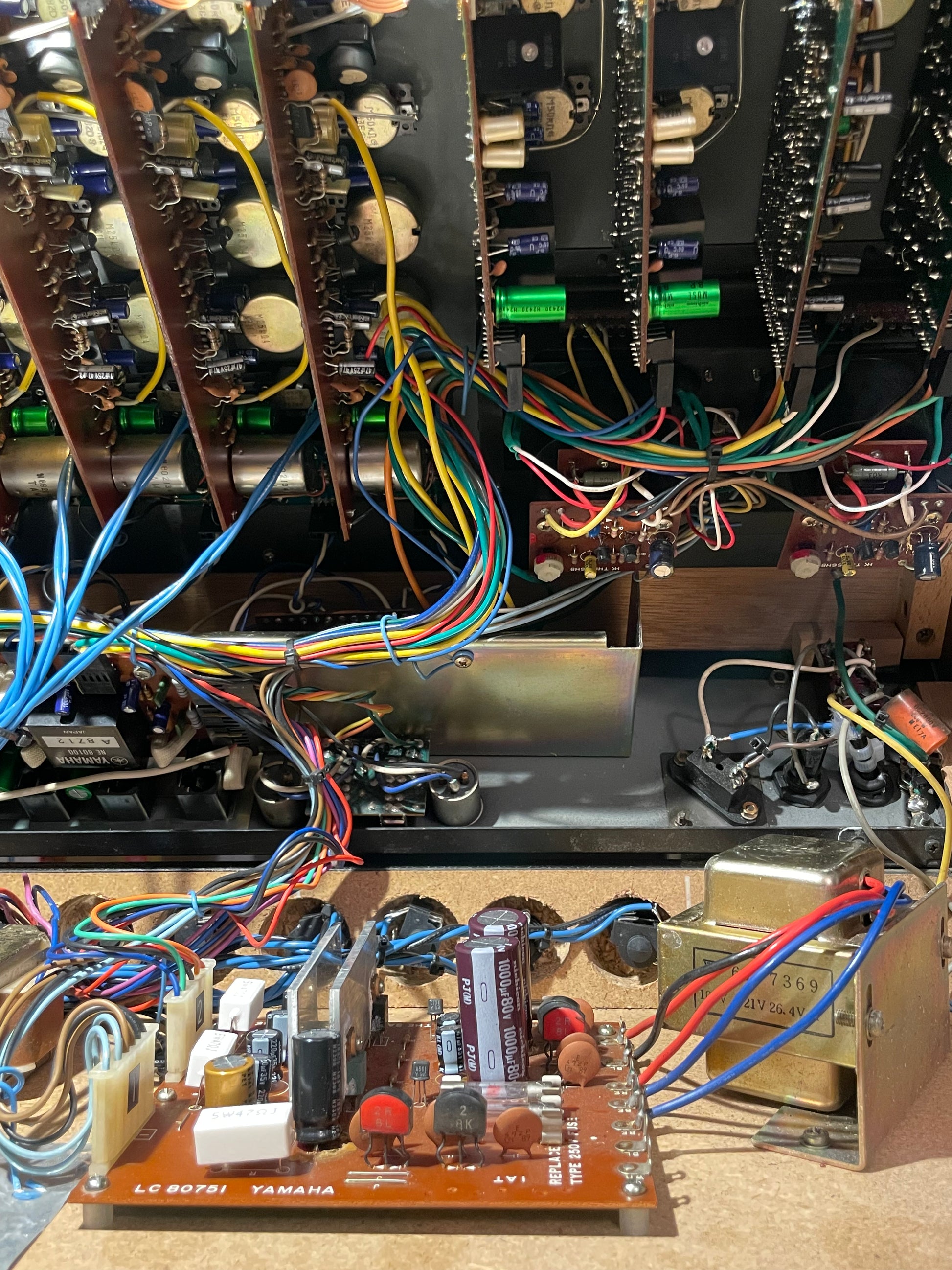

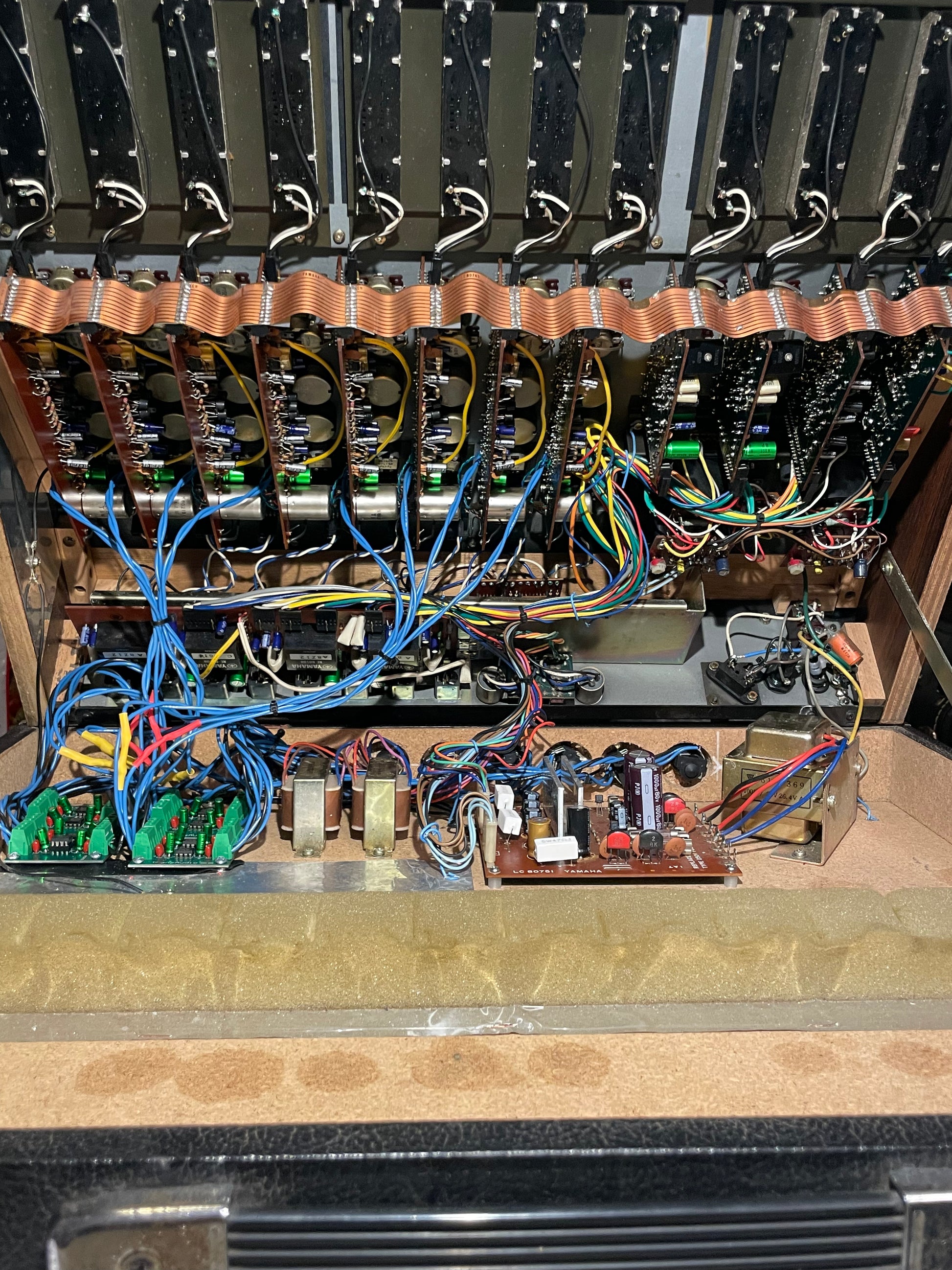

All electrolytic capacitors have been replaced using premium low-ESR Nichicon (Made in Japan), Nichicon Muse where circuit calls for Bipolar caps along with Panasonic where appropriate.

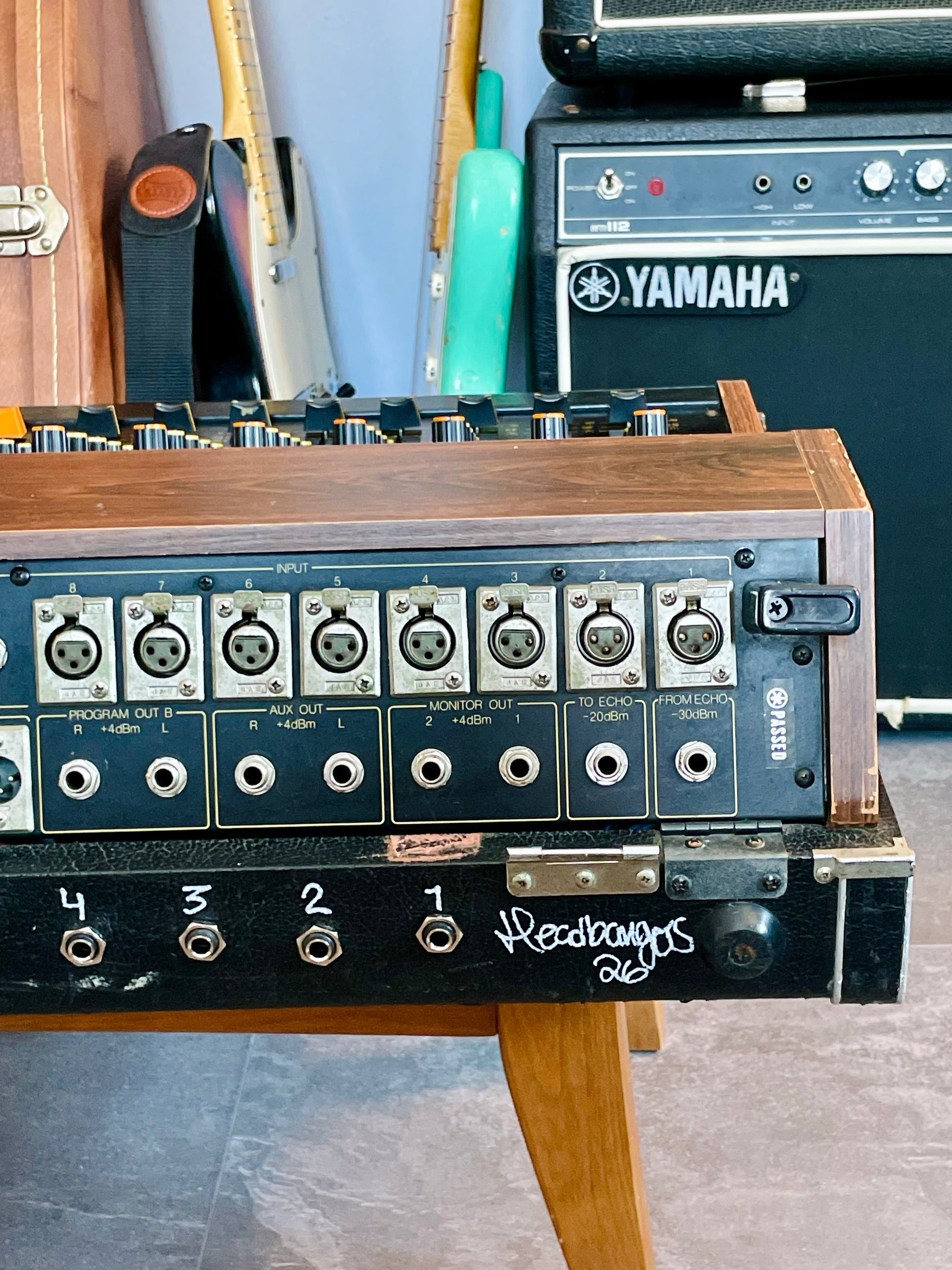

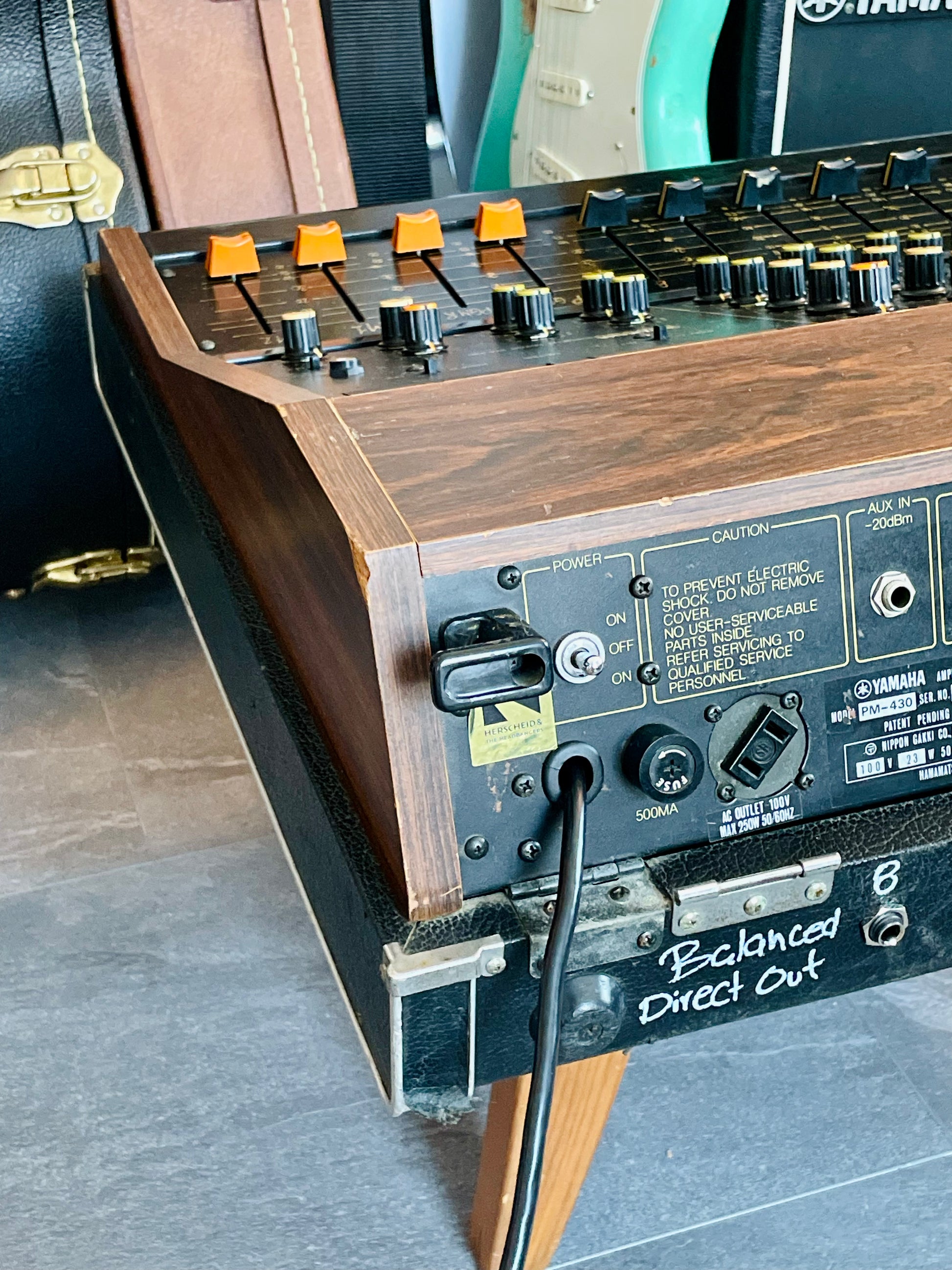

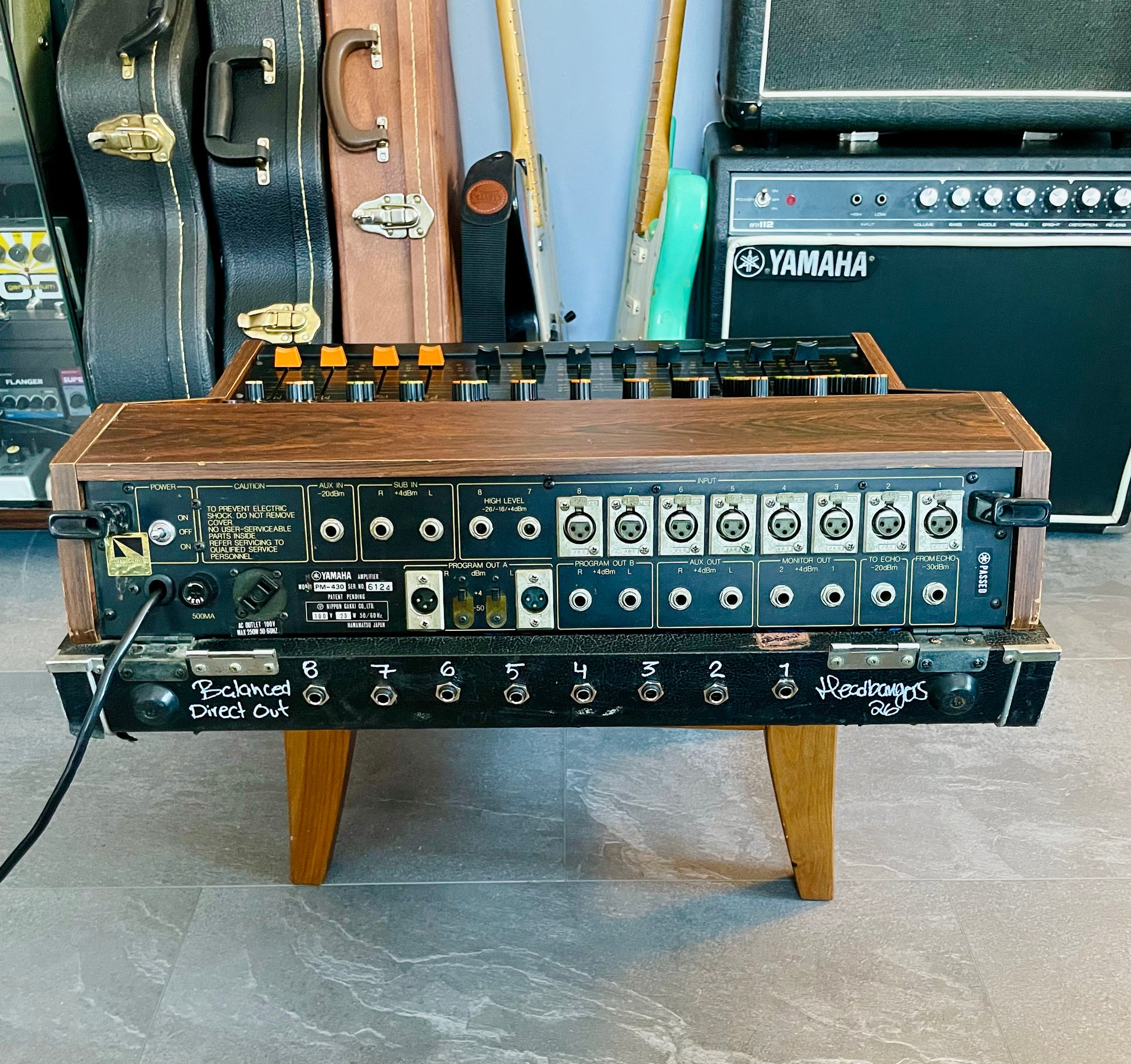

Direct outs remain post-EQ and post-fader so you still capture the actual mix decisions happening on the console. Direct outs run at classic semi-pro console level (around −10 dBV) since the final makeup gain lives in the master program stage. In practice this means healthy headroom and easy pairing with modern interfaces. You can hit converters cleanly without padding while keeping all the punch and tone created in the channel strip.

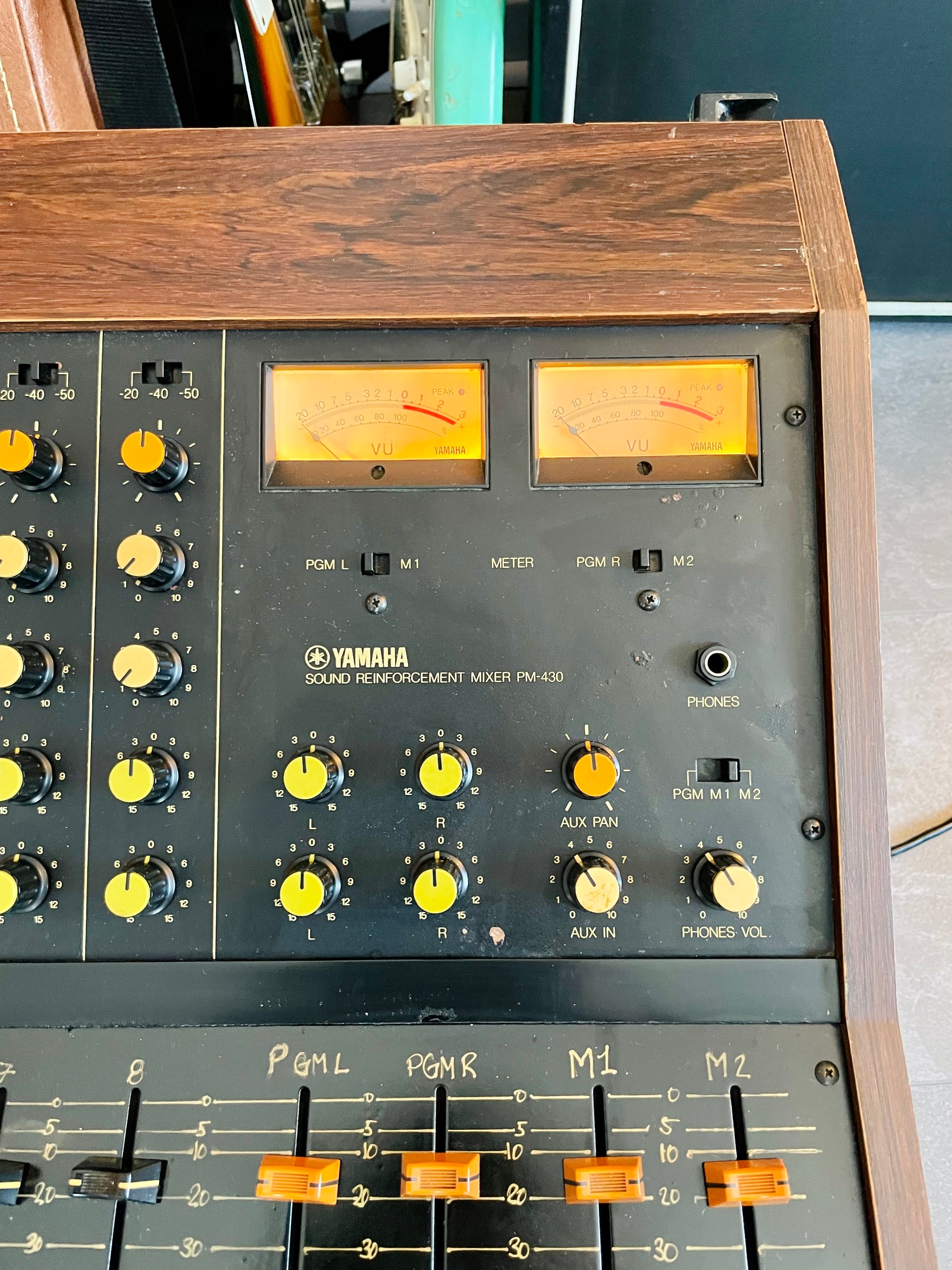

Exceptionally quiet with the unmistakable character of Tamura microphone input transformers and Yamaha NE80100 discrete op-amps on outputs and summing stages, giving the punchy Yamaha sound people track drums, bass and guitars through. VU meter lamps have been replaced.

EQ & Routing

The EQ on the PM-430 is deceptively simple but extremely musical. Two bands per channel yet it never feels limiting because the curves are broad and natural. You can push it hard without the sound collapsing or getting brittle. Boosting highs adds clarity instead of harshness and cutting them cleans mud without hollowing the signal.

The low band uses an inductor-based circuit rather than a simple capacitor filter. An inductor reacts to energy over time instead of just frequency, so the boost affects the body of the note rather than only its boom. The result is a tighter, punchier low end that reinforces kick and bass fundamentals while keeping definition, which is a big part of why these vintage Yamaha consoles sit so well in a mix.

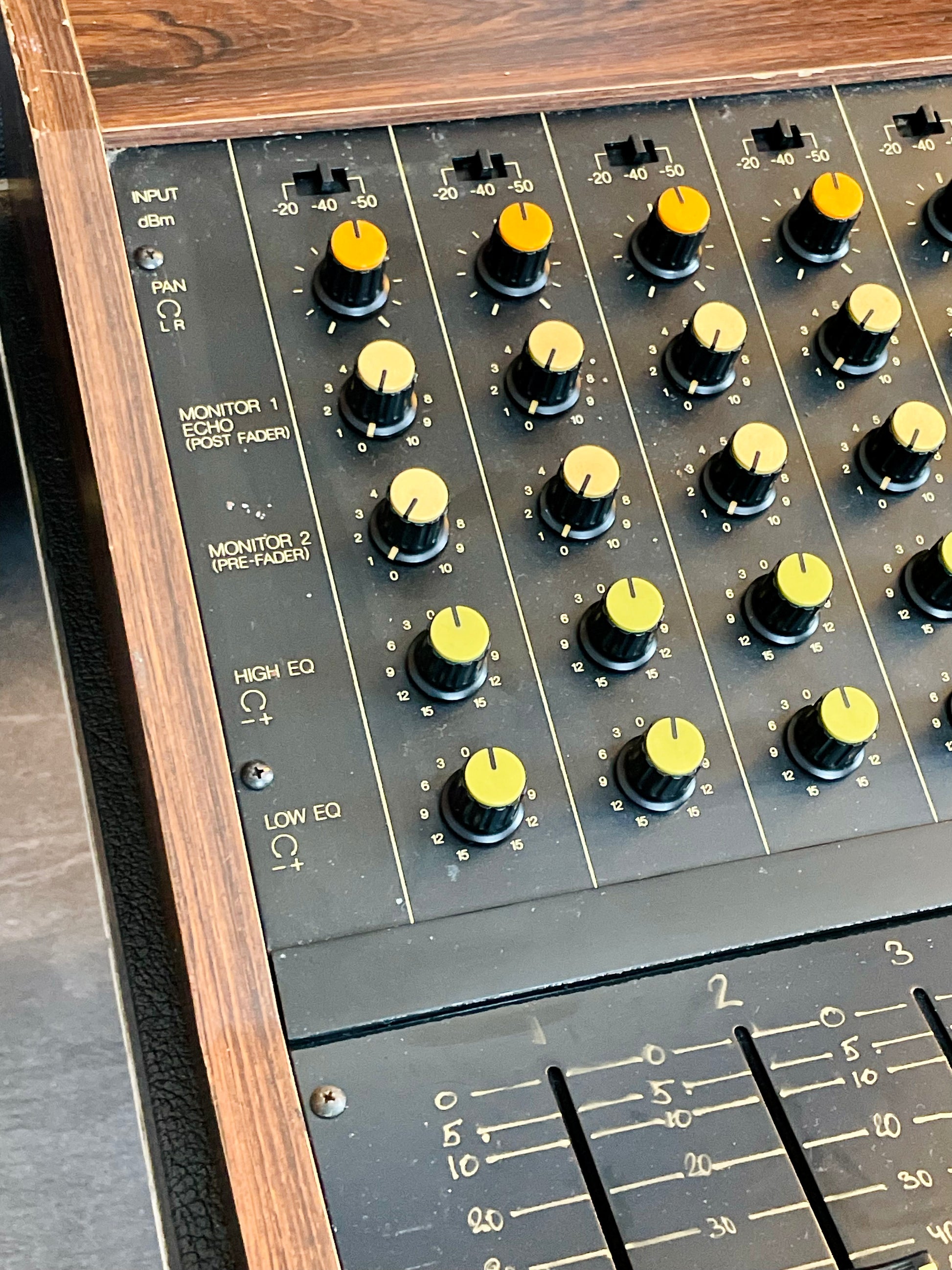

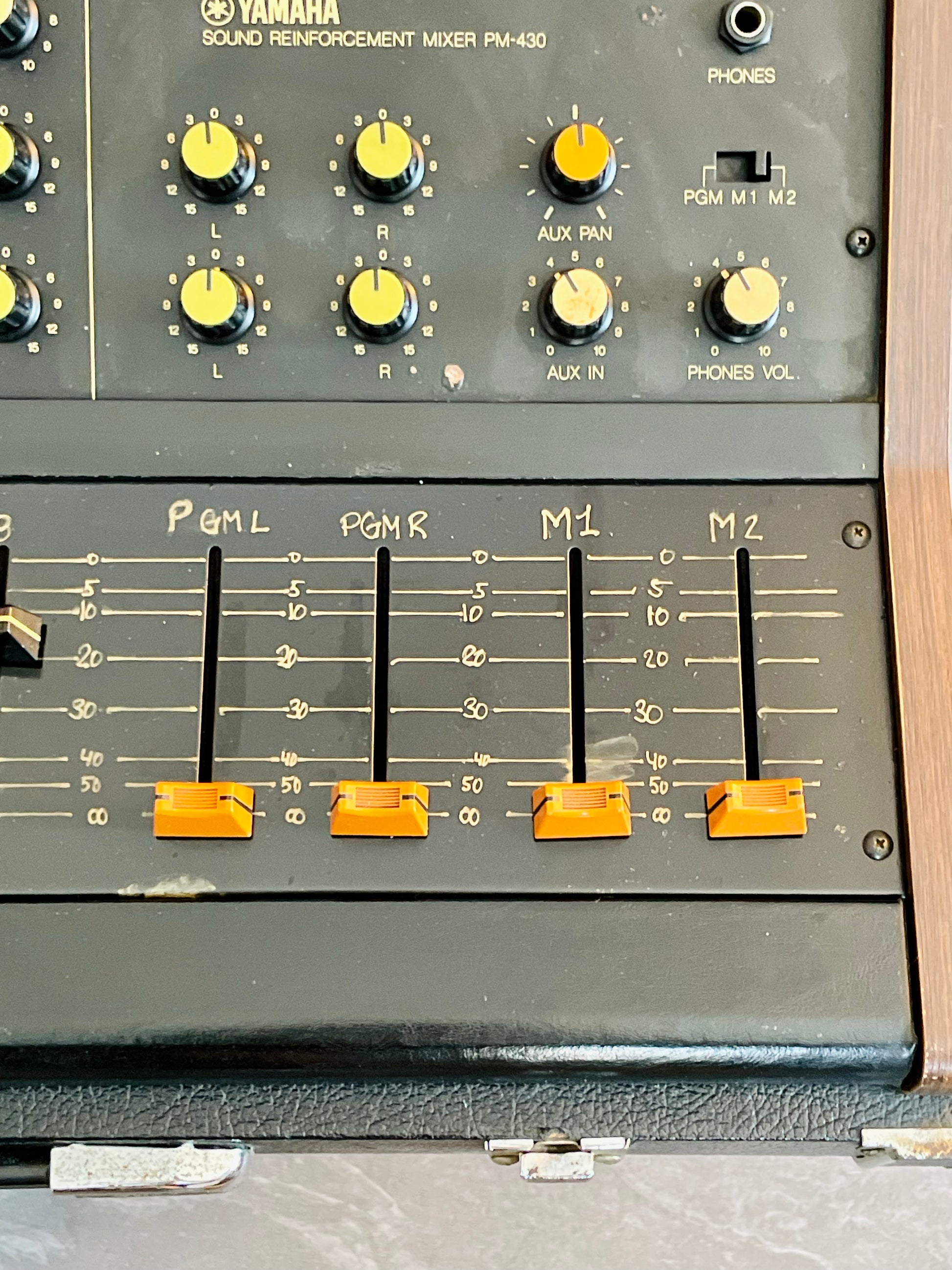

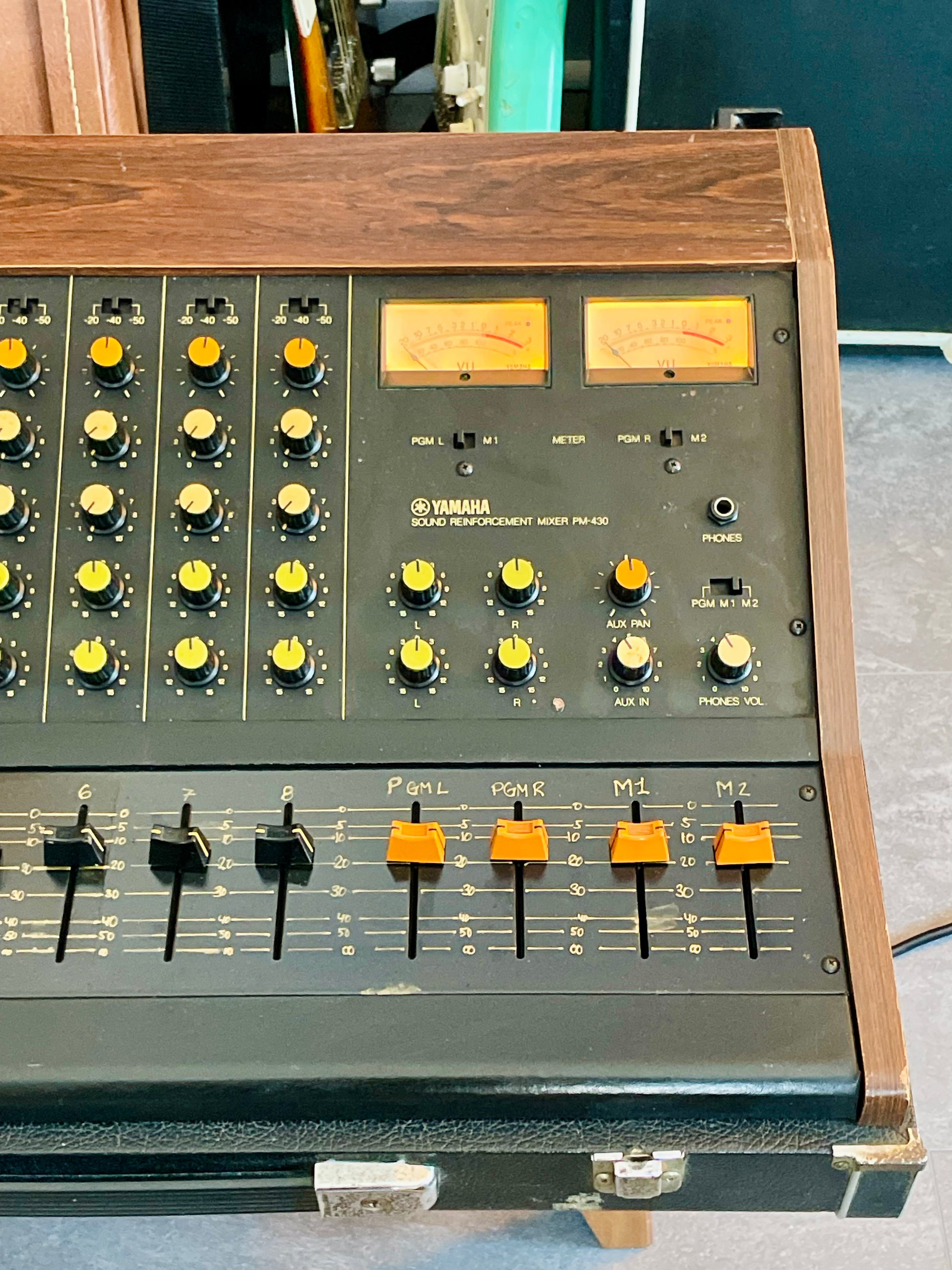

Each channel also features dual monitor sends with M1 pre-fader (also the Echo send) and M2 post-fader, plus a 3-position mic attenuation switch per input. The master section includes its own EQ for shaping the final program mix.

Echo Send

The Echo send lets you patch delays, reverbs or modulation and blend them naturally into the mix using a classic workflow that still feels faster than modern menu driven routing.

Output Stage

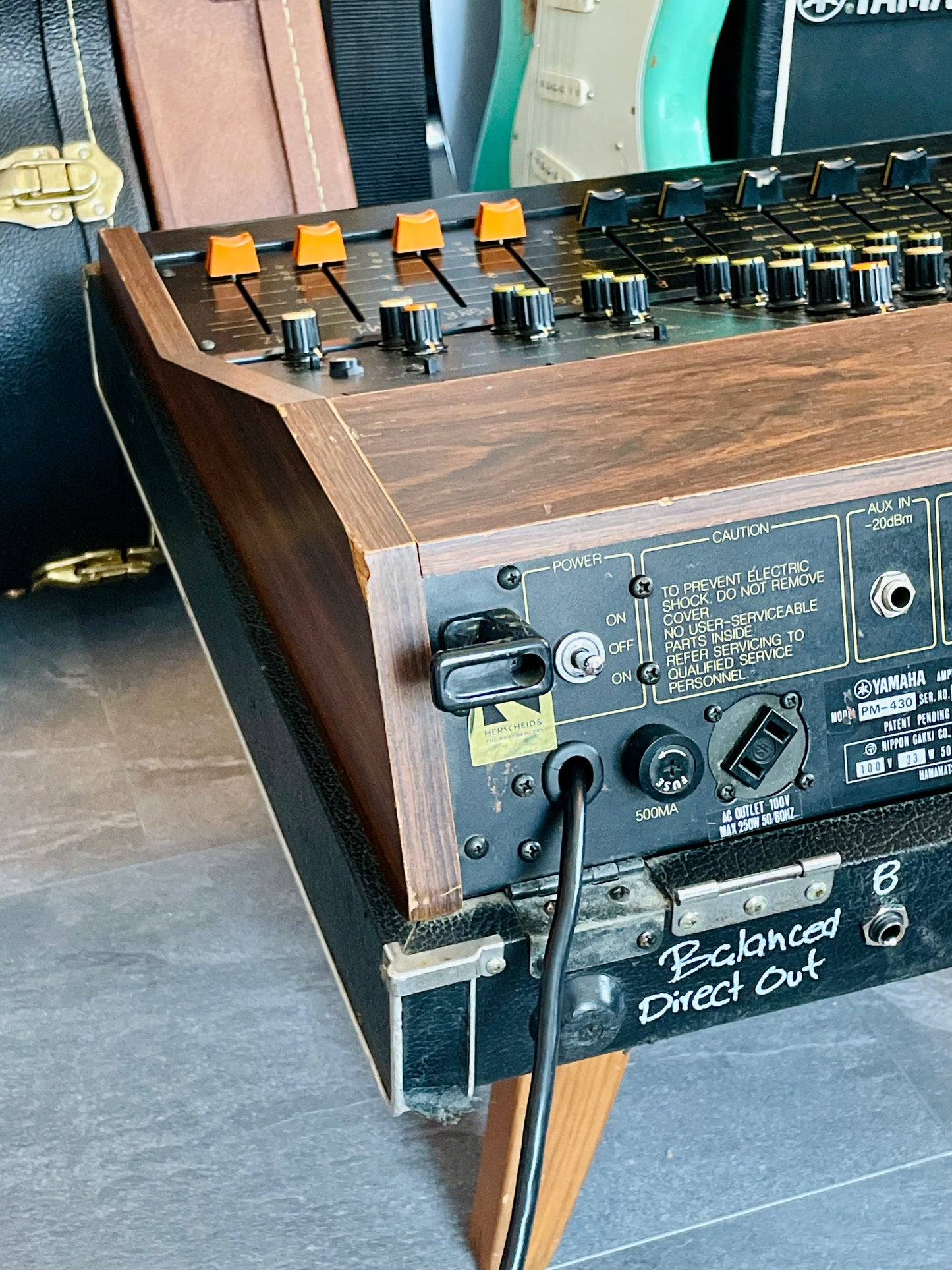

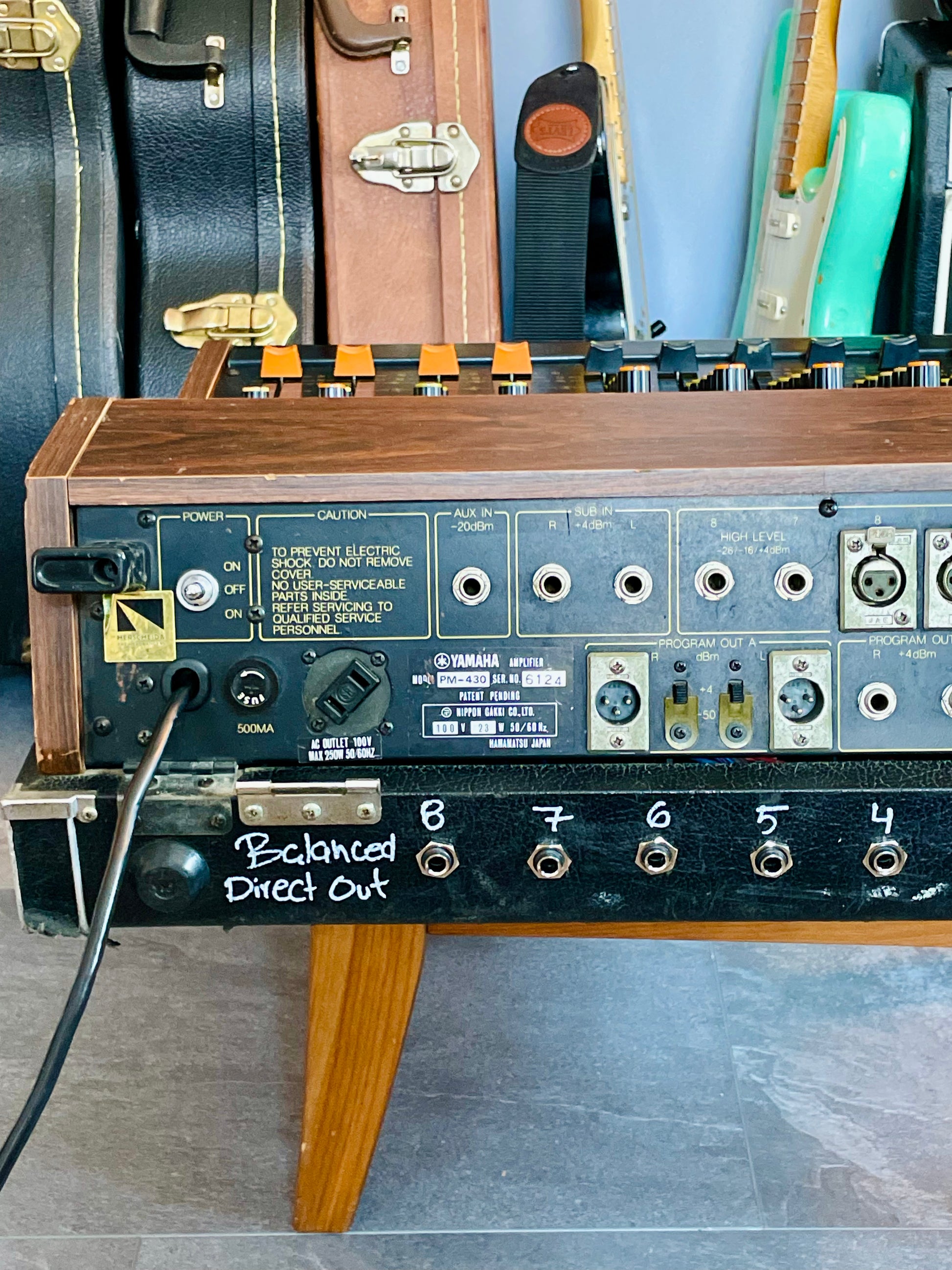

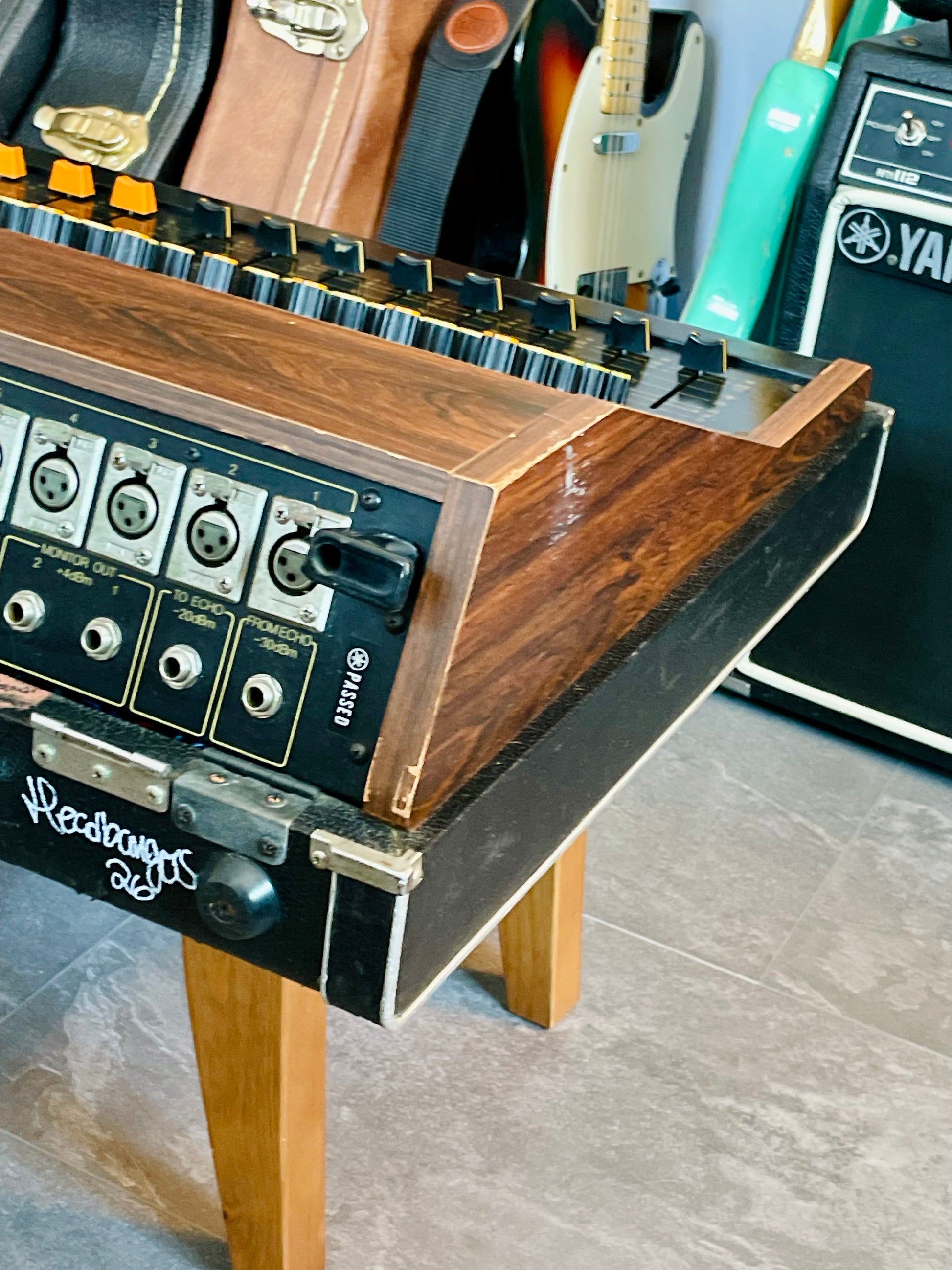

Tamura transformer-balanced XLR master outputs deliver weight and depth while the unbalanced PGM-B outputs provide a cleaner alternate capture path.

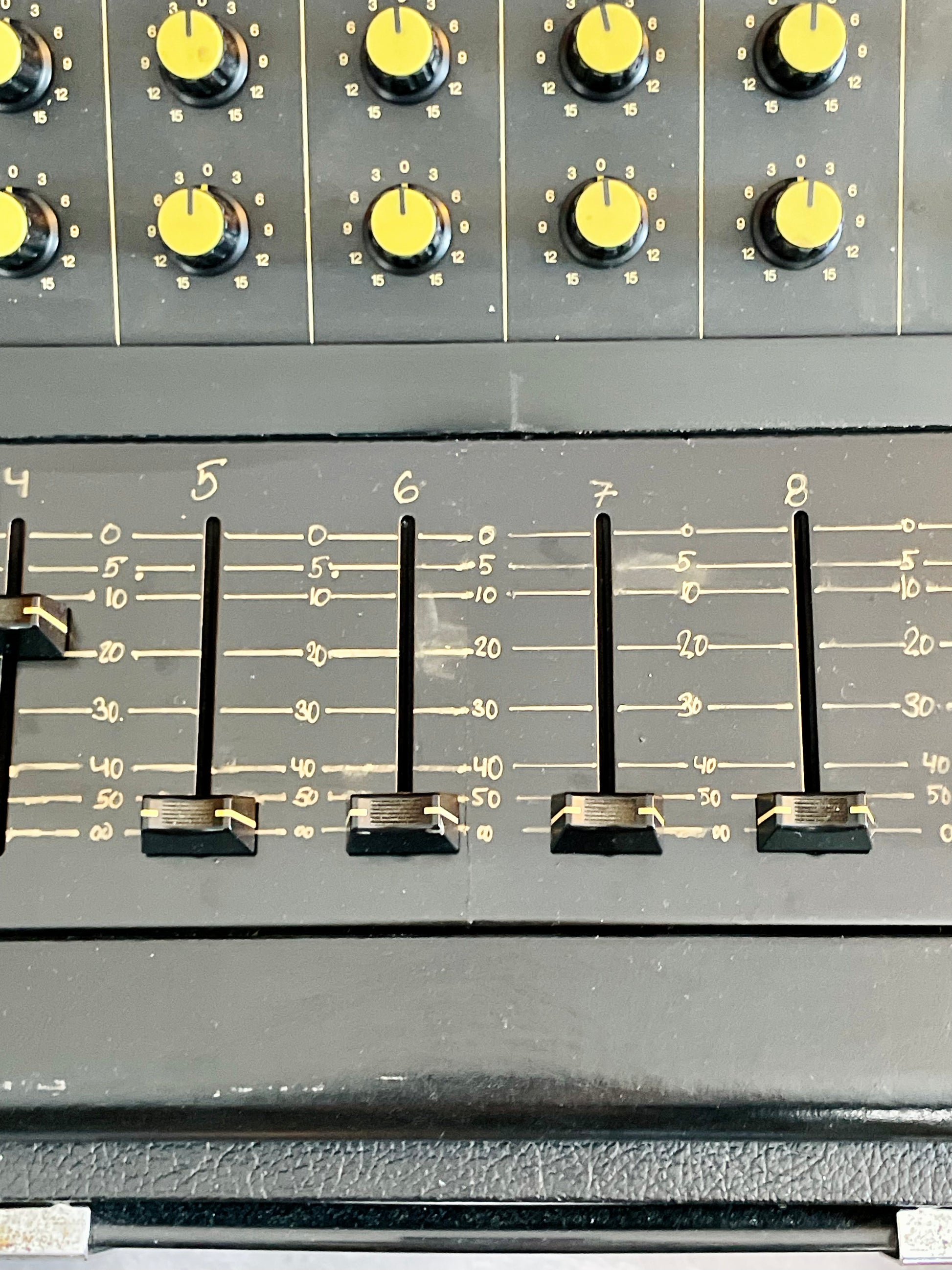

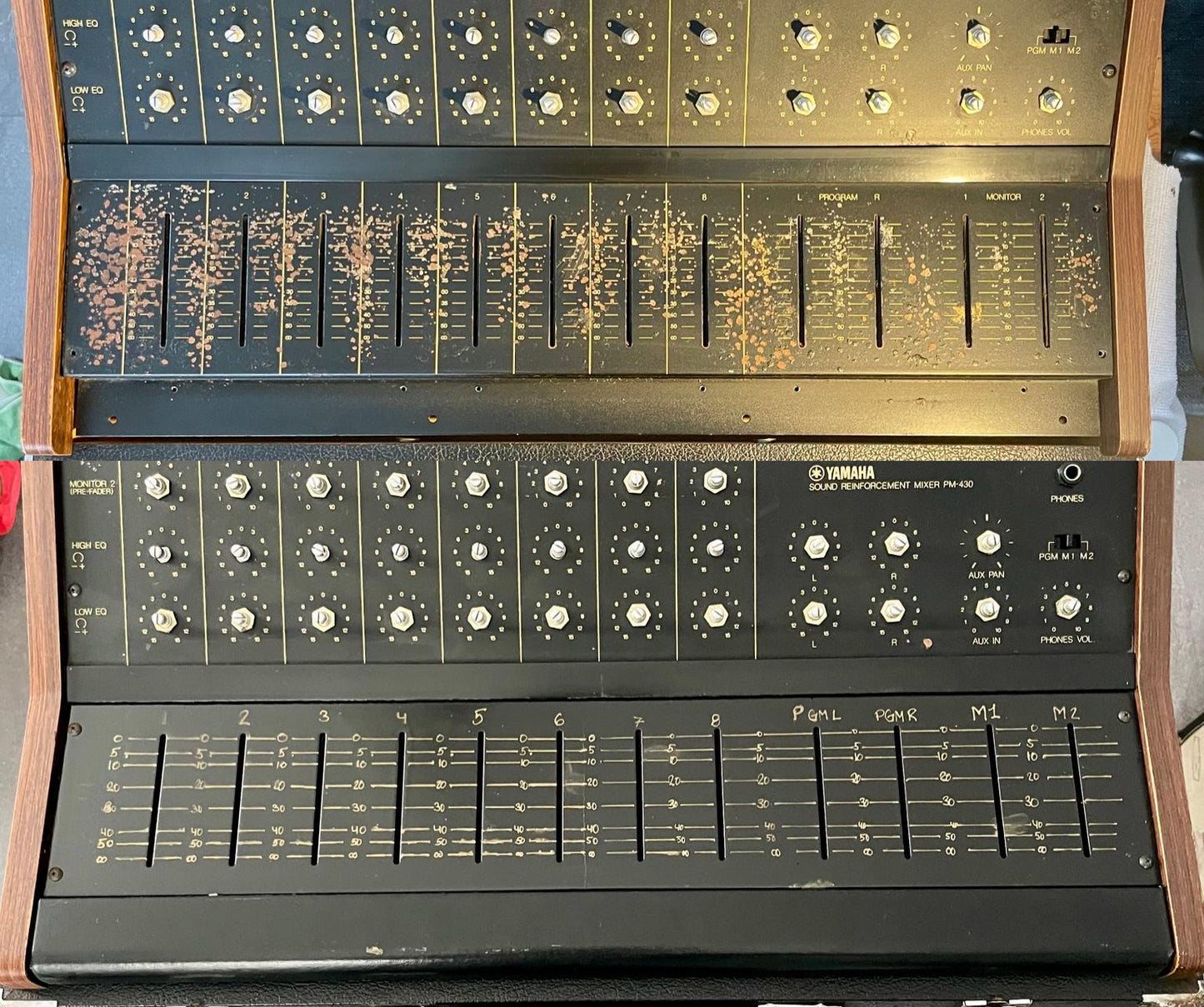

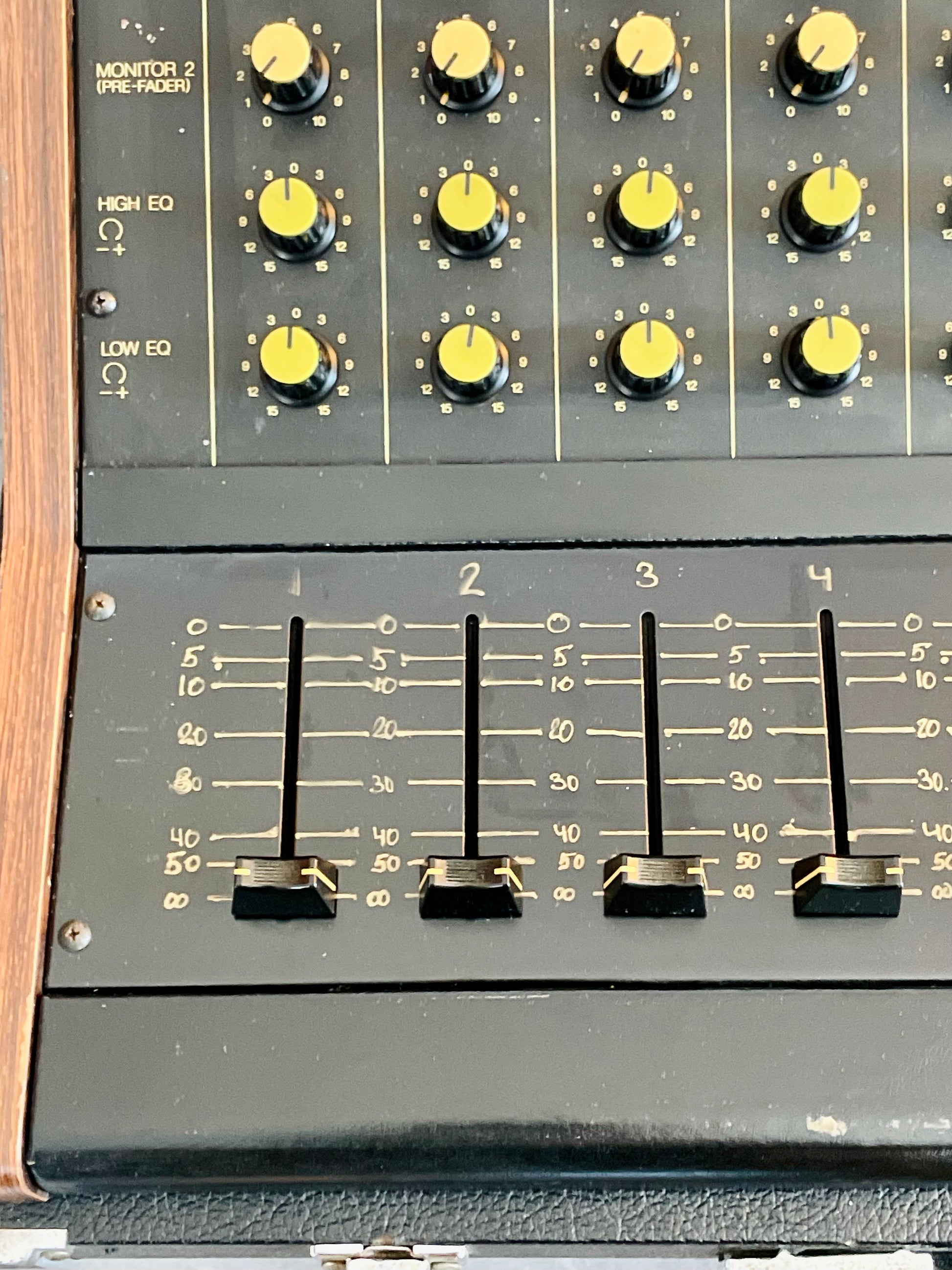

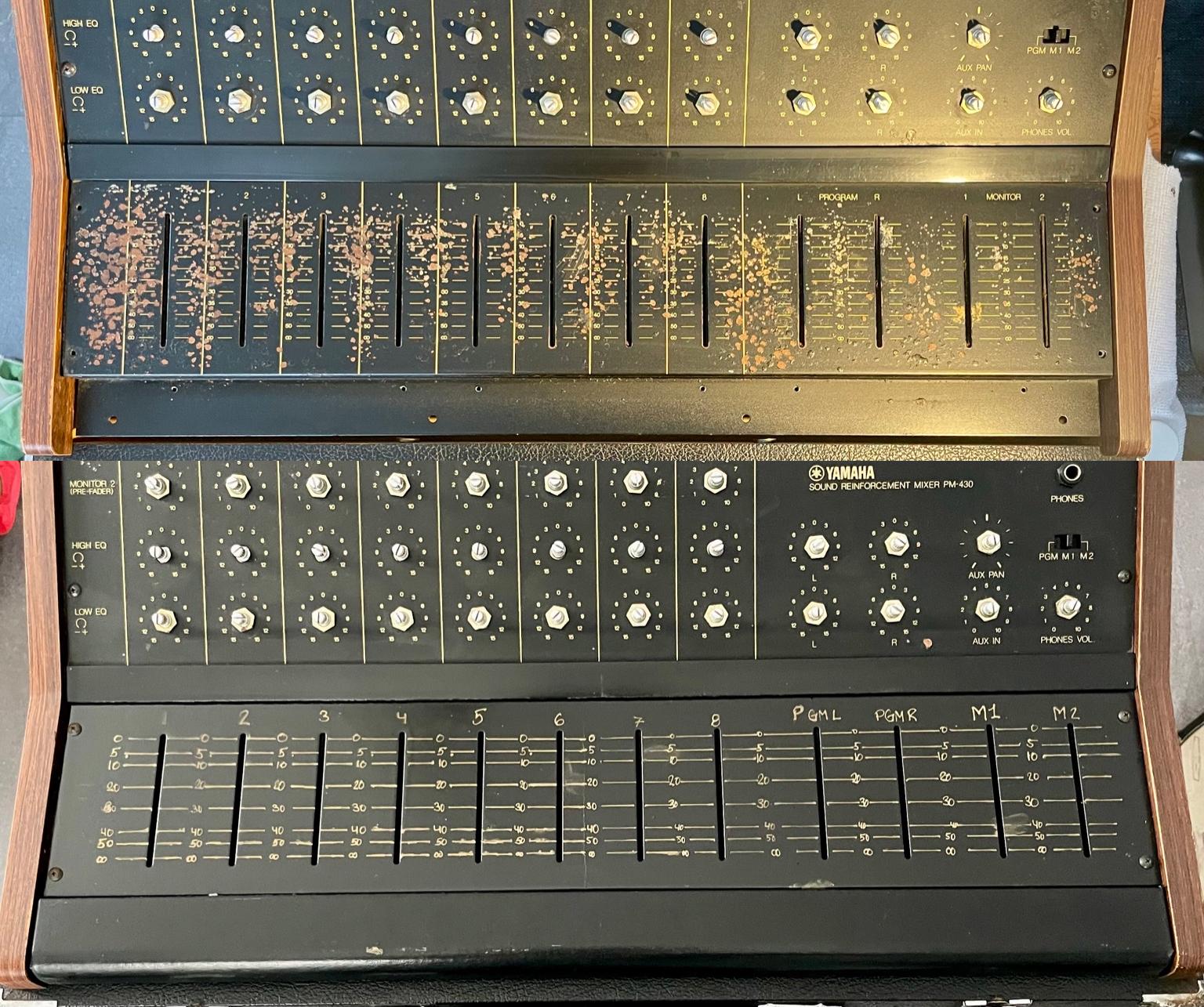

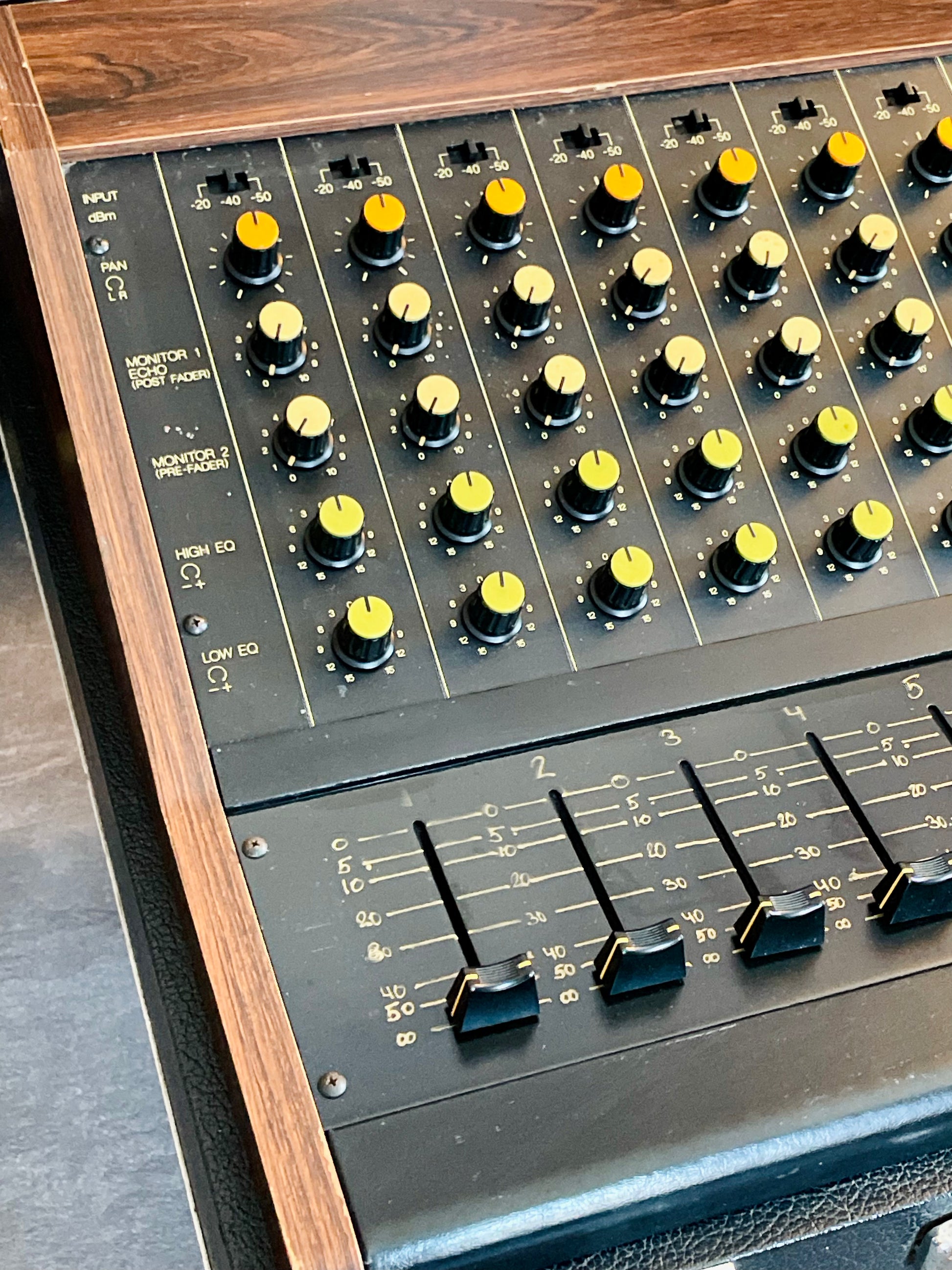

**As you might have noticed, I had to redo the entire plate on the faders board because of the amount of rust that was setting in. I have properly sanded it, painted + thick layer of protective lacquer. As you can see, arts and calligraphy are not my strong suit, but at least now the plate will not disintegrate in your channel's fader. Lines and indicators are a truthful representation of where the originals where.

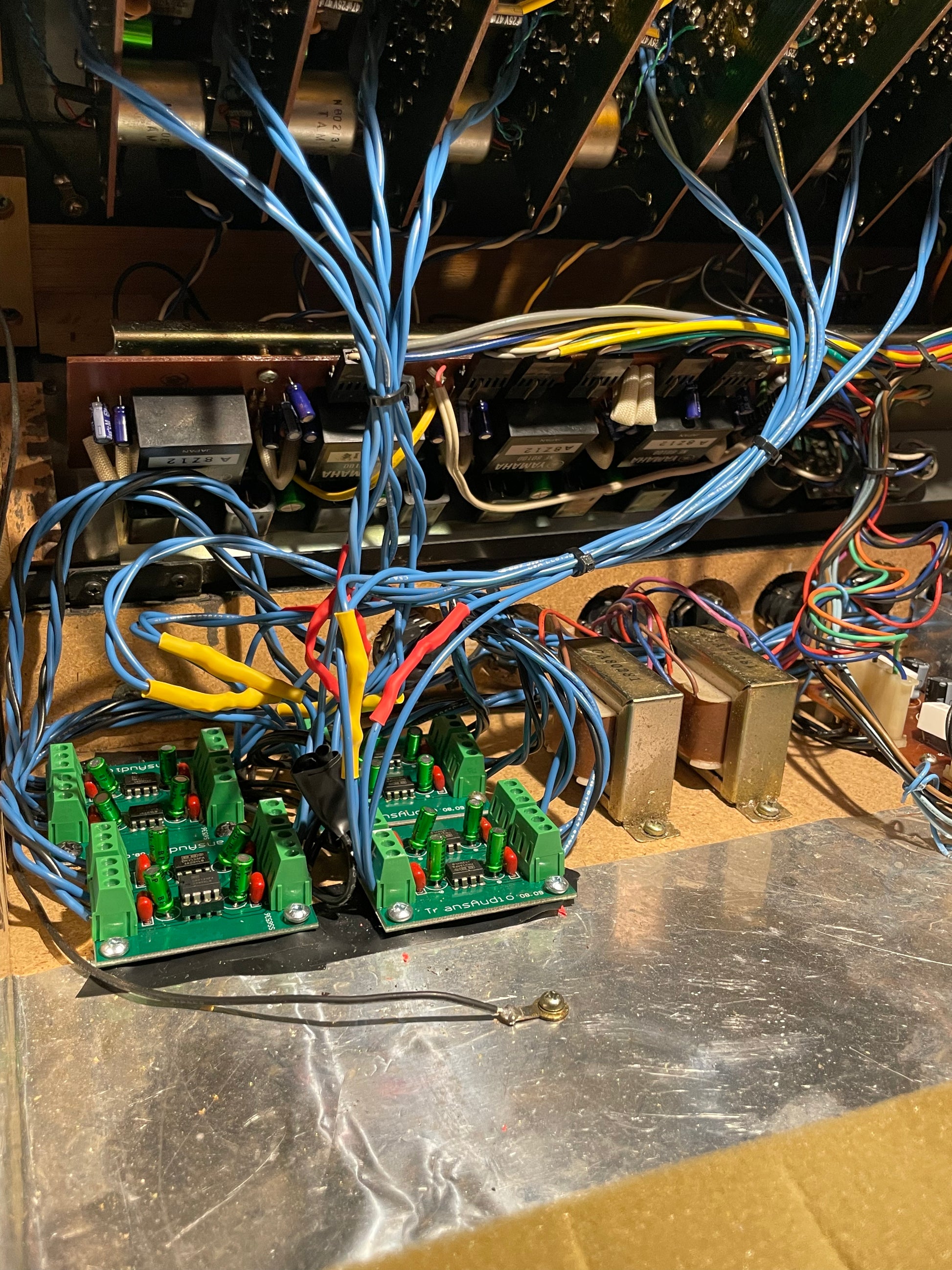

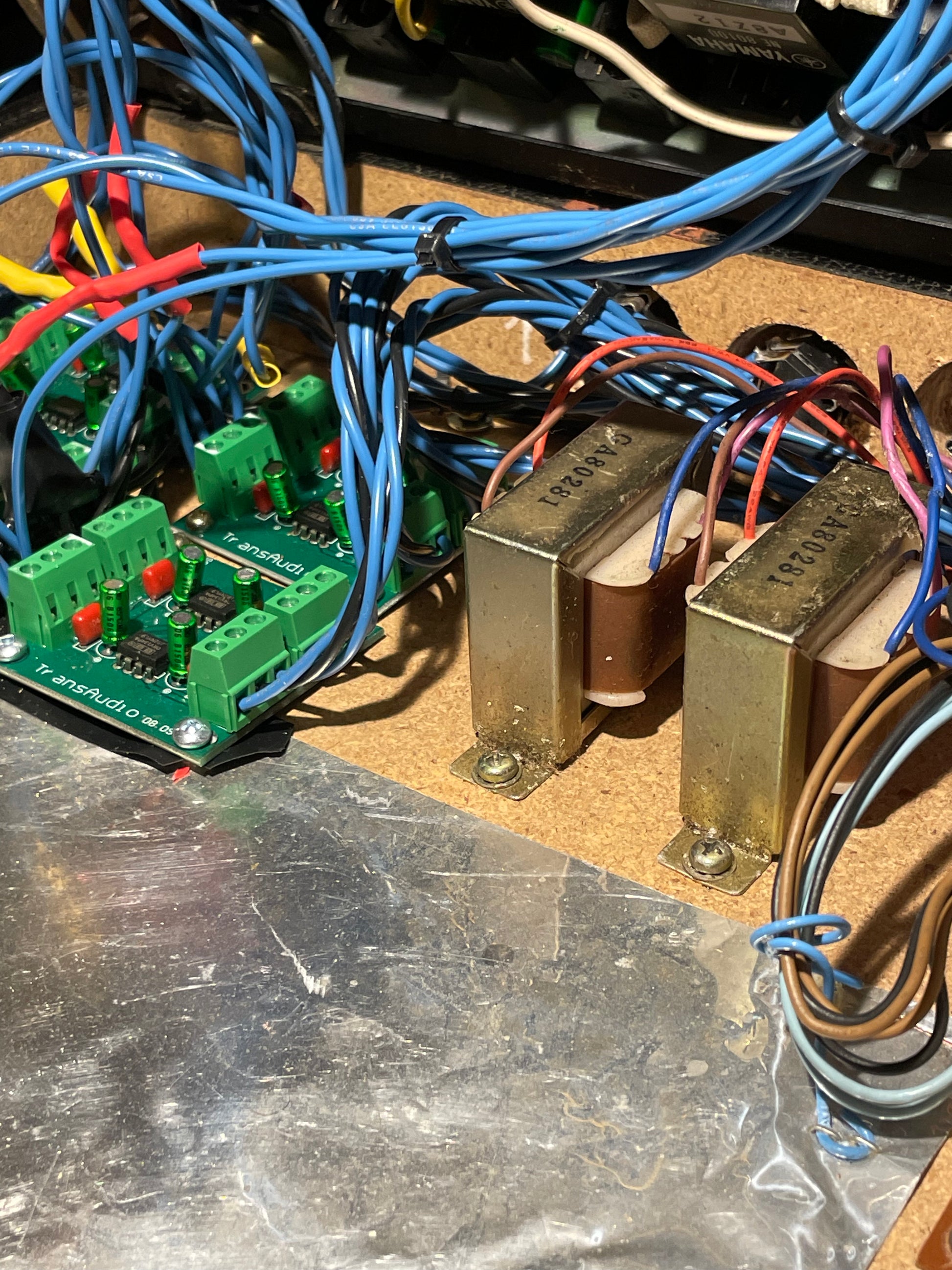

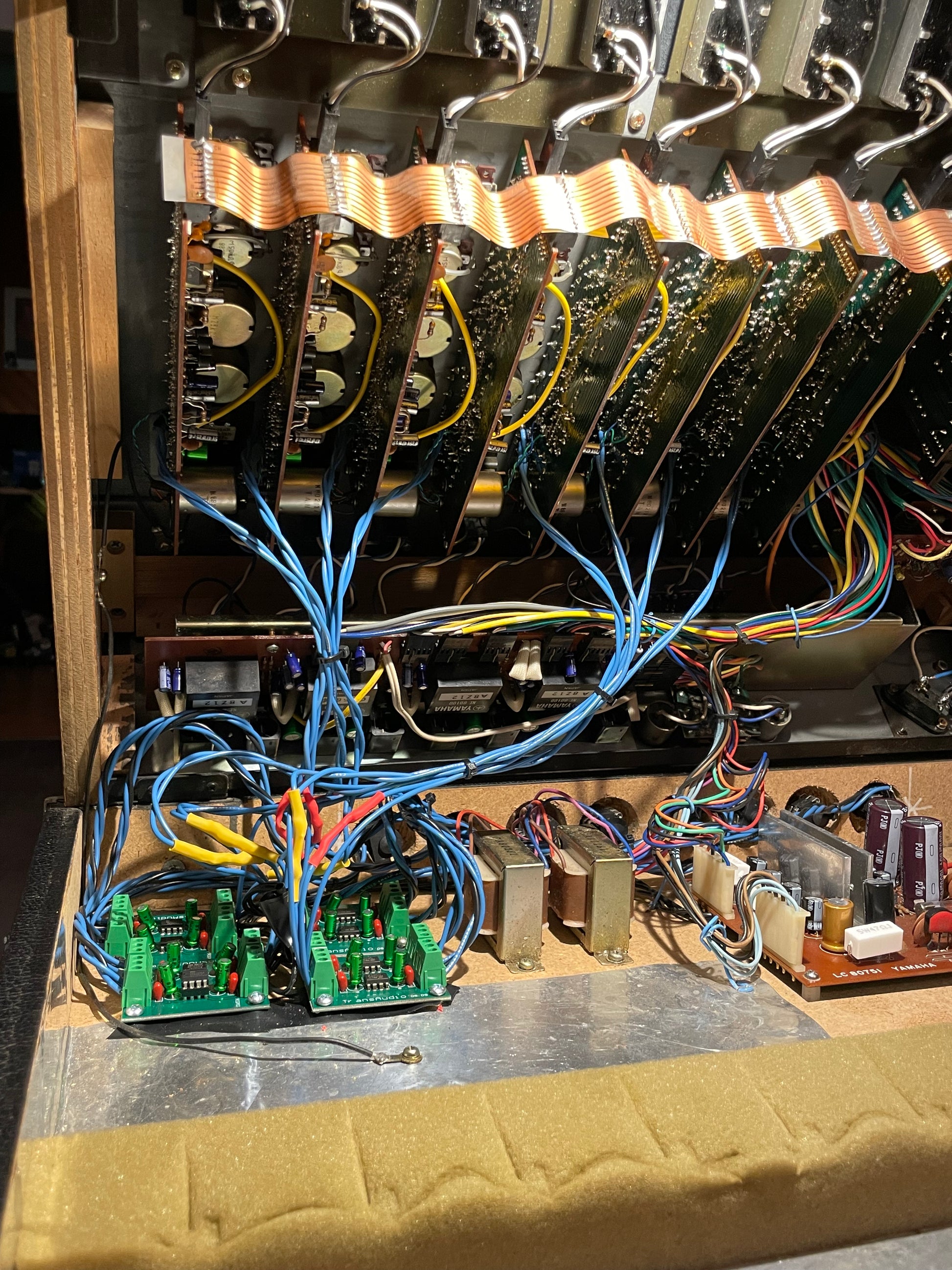

Vintage Yamaha M / PM / MQ consoles are loved for tracking and summing because they sit between hi-fi clean and analog punch, and this one integrates perfectly into modern rigs thanks to the DRV134 balanced outputs.

Quick and fully insured shipping.
