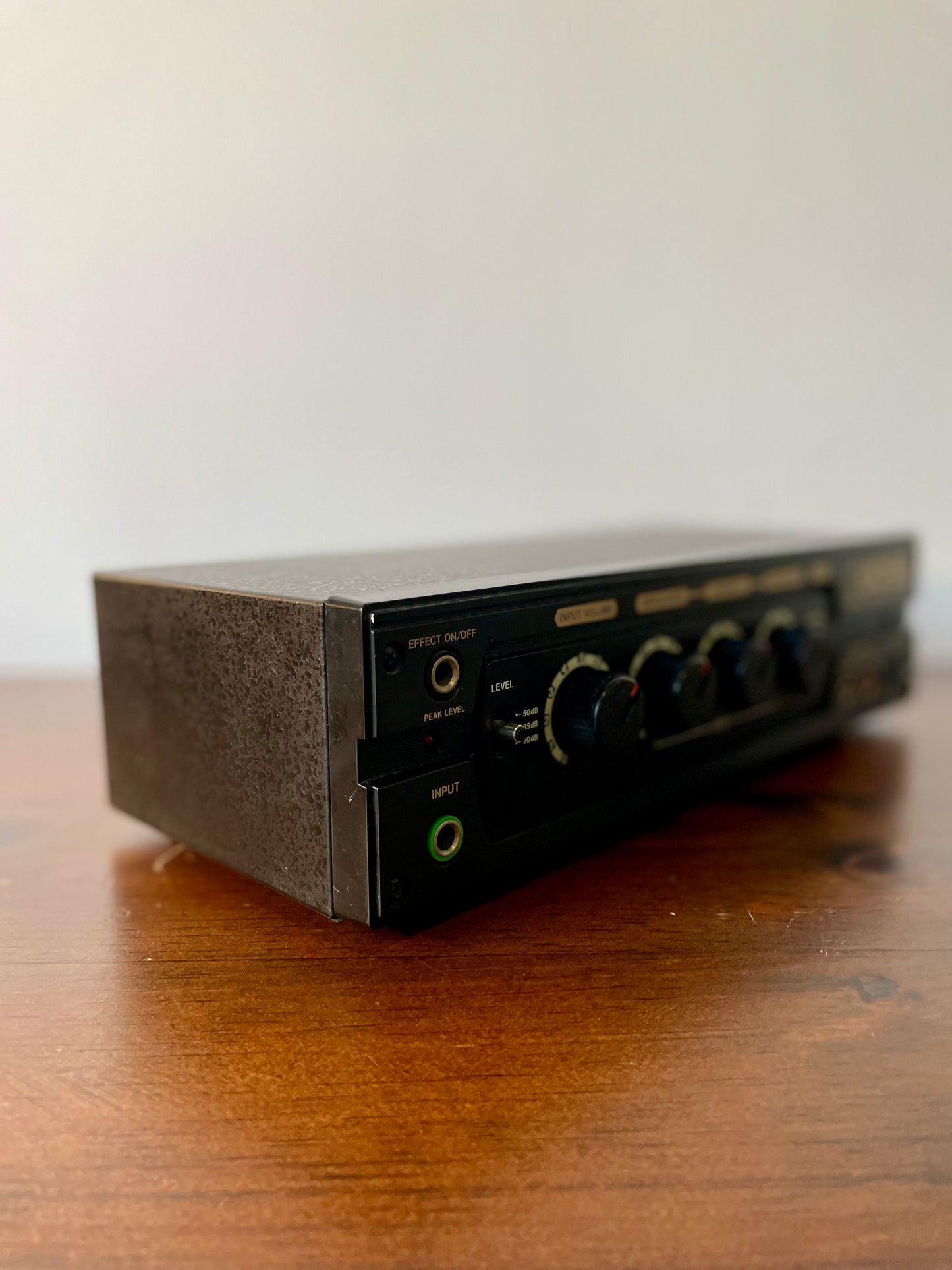

Boss DM-100 Delay Machine - 1980s

At Herscheid & the Headbangers : A great vintage analog delay & Chorus by Boss

Delay Machine DM-100 in very condition!

This Made in Japan analog delay unit uses a MN3005 BBD circuit; the same chip used in the first issue DM-2 Delay pedal. Plus it includes a number of other features and controls over the compact pedal version.

Input Jack, plus separate Effect and Direct+Effect outputs. There are also dB cut switches on the input and output to adjust to your original sound source. The main controls are similar as for a DM-2 pedal, with Repeat Rate (speed of repeats), Intensity (number of repeats) and Echo Volume.

In addition to the delay, there is a switchable Chorus setting with Intensity control at the back, for that classic Roland chorus sound. The Chorus can only be used independently of the delay by switching to either the Echo or Chorus modes on the front. The intensity control adjusts the amount of the chorus effect, from mild to deep.

The unit is in great working order. We have cleaned the pots and installed a new power switch. As we could only find a 3 way we wired it On-Off-Off. Doesn't impact the good functioning of the unit and follows the front '' On - Off '' display.

Quick and insured shipping!
