RANE MP 24 Mixer Preamplifier Original Model 1989 in Excellent condition

At Herscheid & the Headbangers: RANE MP24 Mixer with preamp (first version) from 1989.

General Description

The Rane MP 24 Mixer is a giant step forward for night club mixers. Following the advice of the most renowned figures in the night club market, Rane developed the MP 24 to break down the limiting barriers of previous mixer designs.

Featuring four Stereo Input mixing Channels, each supplied with a selection of several PHONO and LINE Inputs, the MP 24 easily suits the needs of the most complex audio/video installations. A total of six Stereo LINE Inputs are available plus three Stereo PHONO Inputs.

The MIC CONTROL section of the MP 24 handles two microphones simultaneously. Both mics may be contoured by the three-band Mic Equalizer as well as processed through a MIC LOOP jack. On the rear of the unit, a 3-pin low-Z MAIN MIC Input with switchable PHANTOM POWER, and a ¼" hi-Z AUX MIC Input are both mixable.

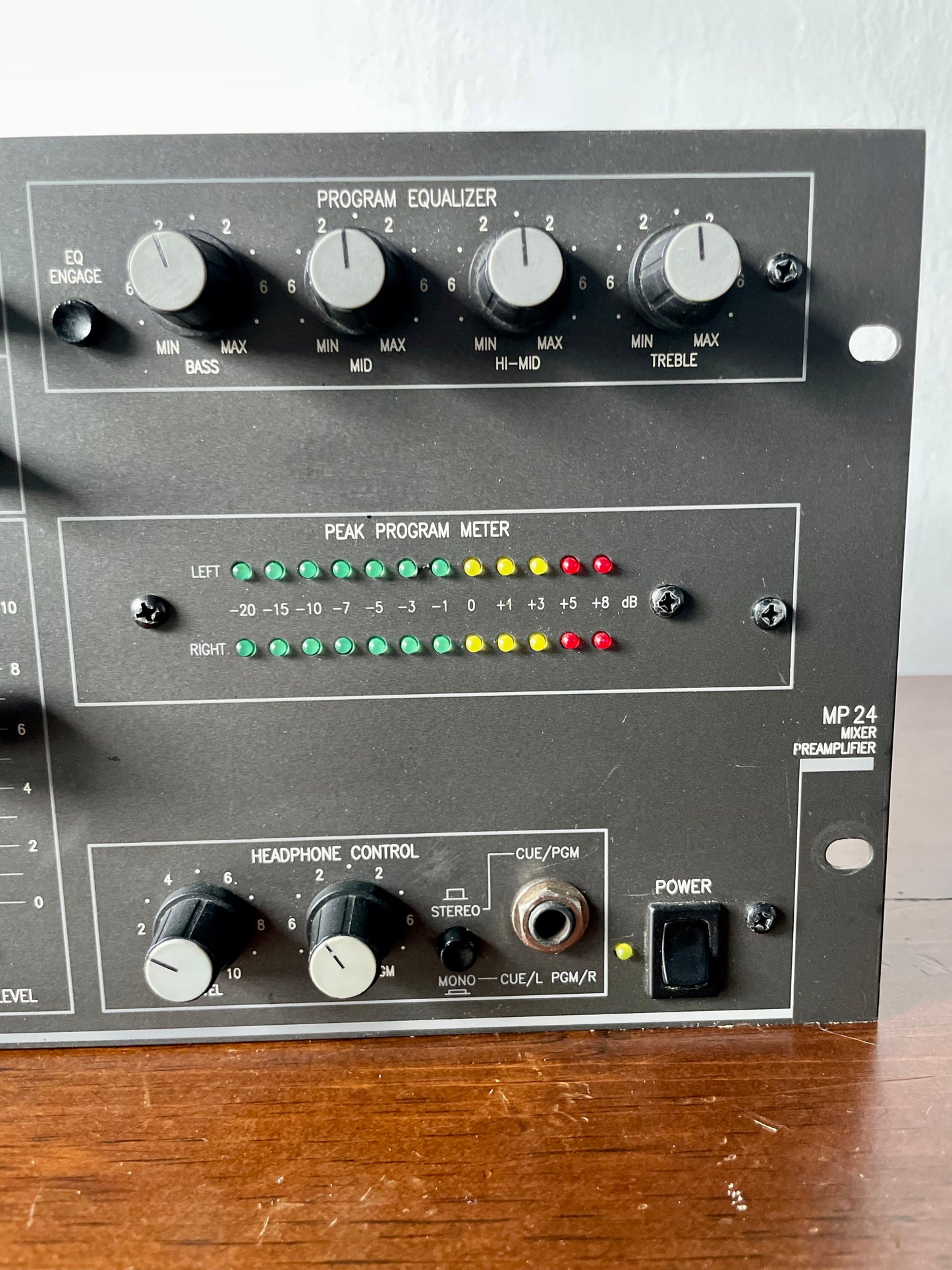

The Output section of the MP 24 provides a MASTER LEVEL fader, four band PROGRAM EQUALIZER (independent of the Microphone EQ), two auxiliary output controls (ZONE and BOOTH), a stereo 12-segment PEAK PROGRAM METER and full HEADPHONE CONTROL monitoring and cueing system.

The rear of the MP 24, besides holding all of the normal Input and Output connectors, features a transformer isolated LIGHT CONTROL OUTPUT with associated LEVEL control, balanced 3-pin MAIN OUTPUT connectors, Program Equalizer EQ RANGE switch (±4dB or ±8dB) and a SYSTEM MONO switch.

All sliders on the MP 24 are studio-quality, side wipe faders as found on high quality audio mixing consoles.

New features have been added to the MP 24. The crossfader is now front panel replaceable. Each of the PHONE Inputs can be converted to LINE Inputs by moving internal jumpers. Another internal jumper allows defeating the BoothDucker circuit when the mic is activated—this feature has been requested by those wishing to use the BOOTH OUTPUT as a second record output or second zone. Another jumper allows the MIC section to be mixed to the TAPE OUTS—the default setting is “music only”.

Features

• FOUR STEREO INPUT MIXING CHANNELS

• SIX STEREO LINE INPUTS

• THREE STEREO PHONO INPUTS

• TWO MIC INPUTS WITH THREE BAND EQ

• MIC & TWO PROGRAM EFFECTS LOOPS

• HEADPHONE CUEING

• FOUR BAND PROGRAM EQ

• 12 SEGMENT STEREO OUTPUT METERING

• BALANCED 3-PIN MASTER OUTPUTS

• TWO AUXILIARY OUTPUTS

• ISOLATED LIGHT CONTROL OUTPUT

• FRONT PANEL REPLACEABLE CROSSFADER

• PHONO INPUTS CONVERTIBLE TO LINE

• SWITCHABLE BOOTH DUCKER

• SULPHIDE-RESISTANT ALPS FADERS
