Yamaha M406 "JapaNeve" Direct Out Mod. Fully serviced + Recapped Headbangers

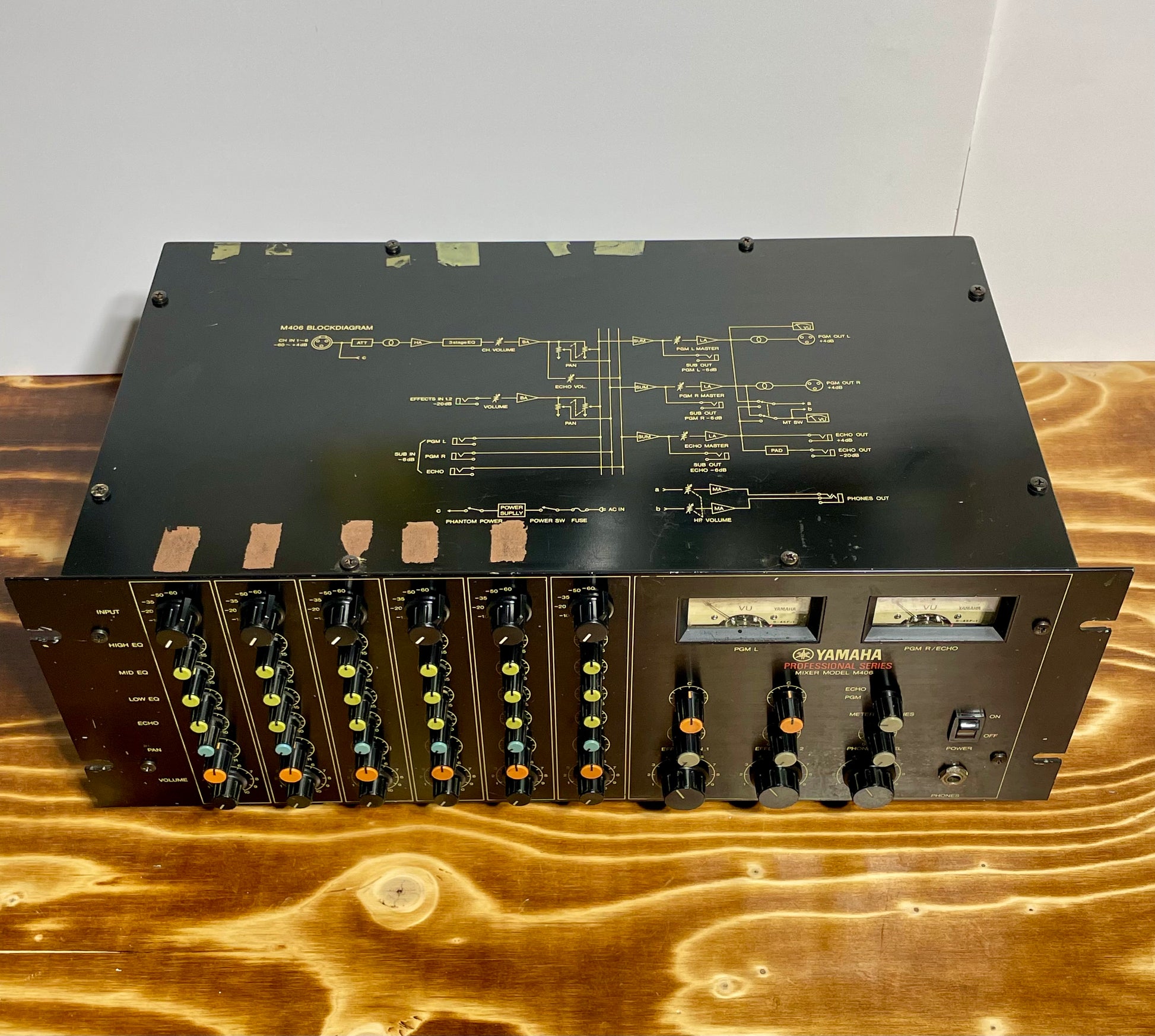

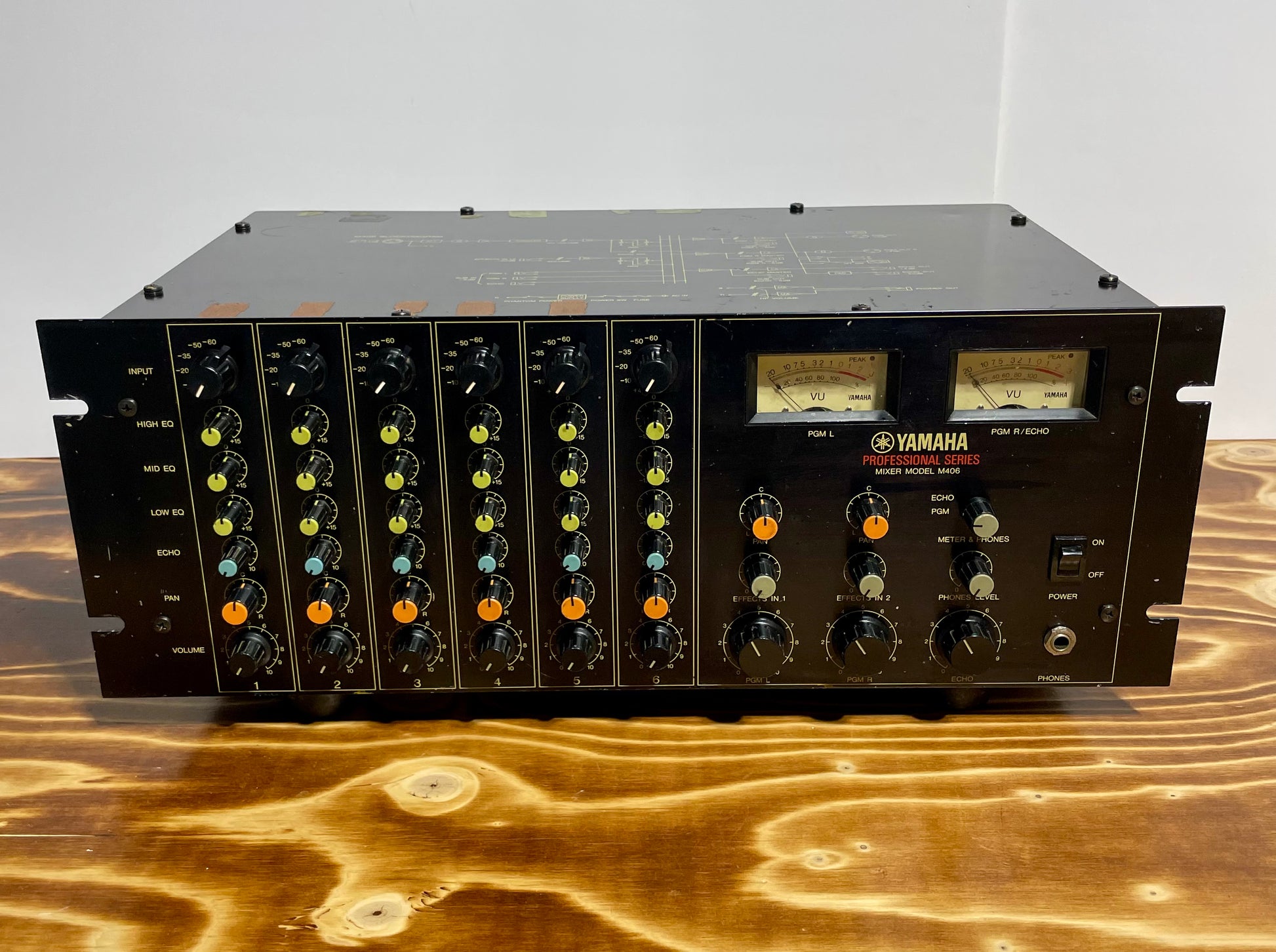

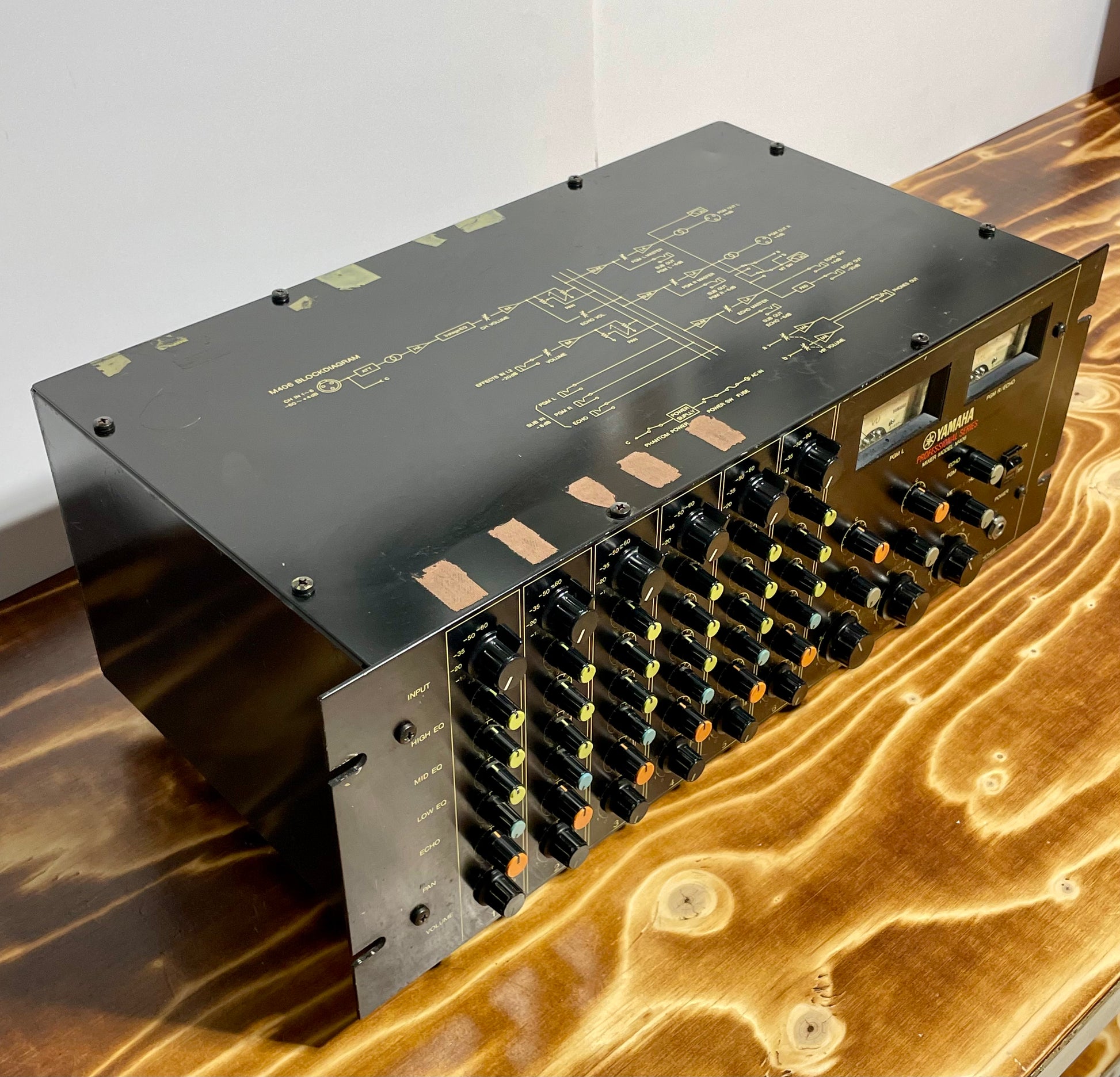

Yamaha M406 – Vintage Analog Rackmount 6-Channel Mixer (Fully Serviced)

• Made in Japan 🇯🇵
• 6-channel vintage analog rackmount mixer
• 6 × Tamura mic input transformers (same family as PM-1000 / PM-2000)

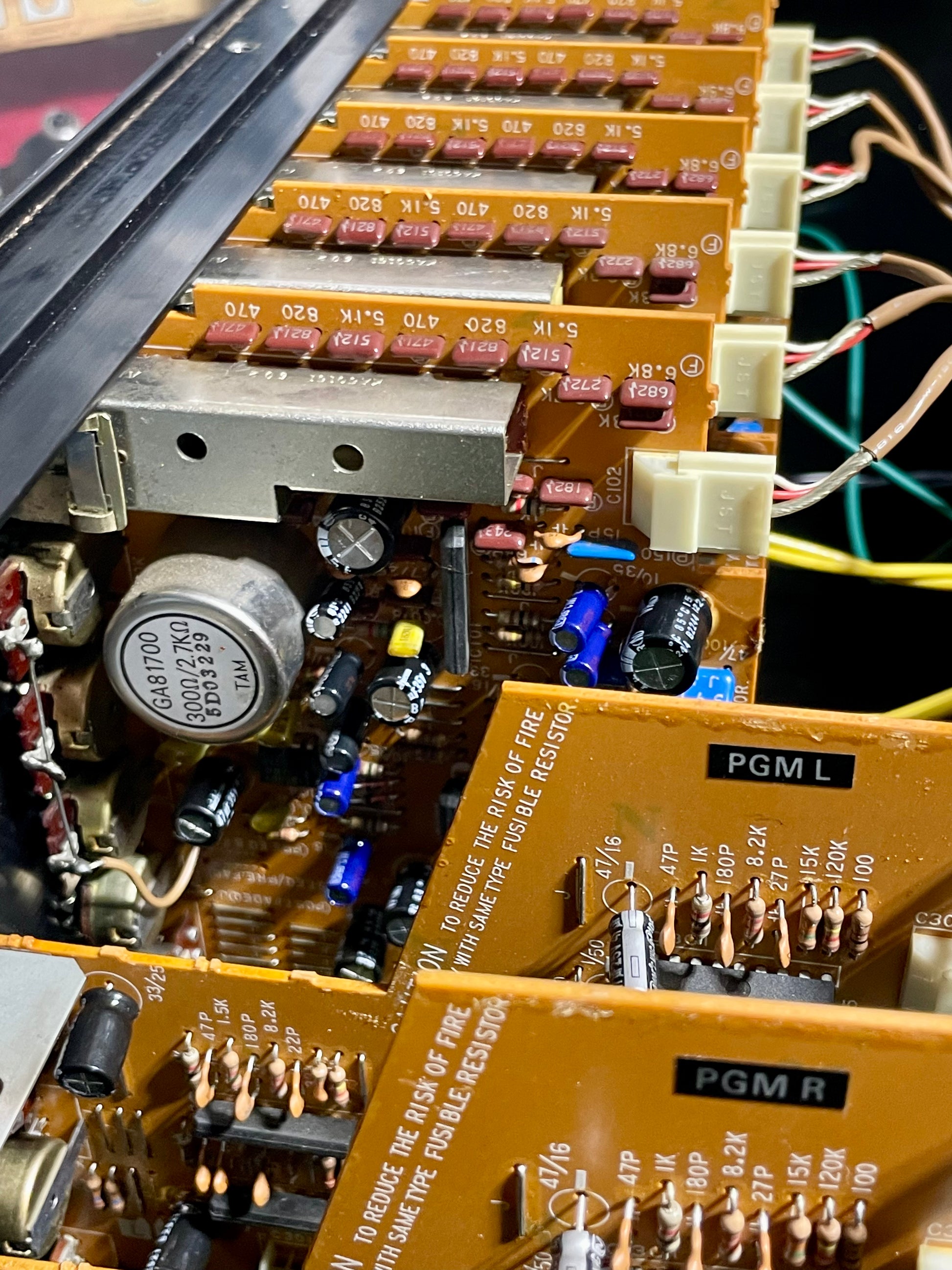

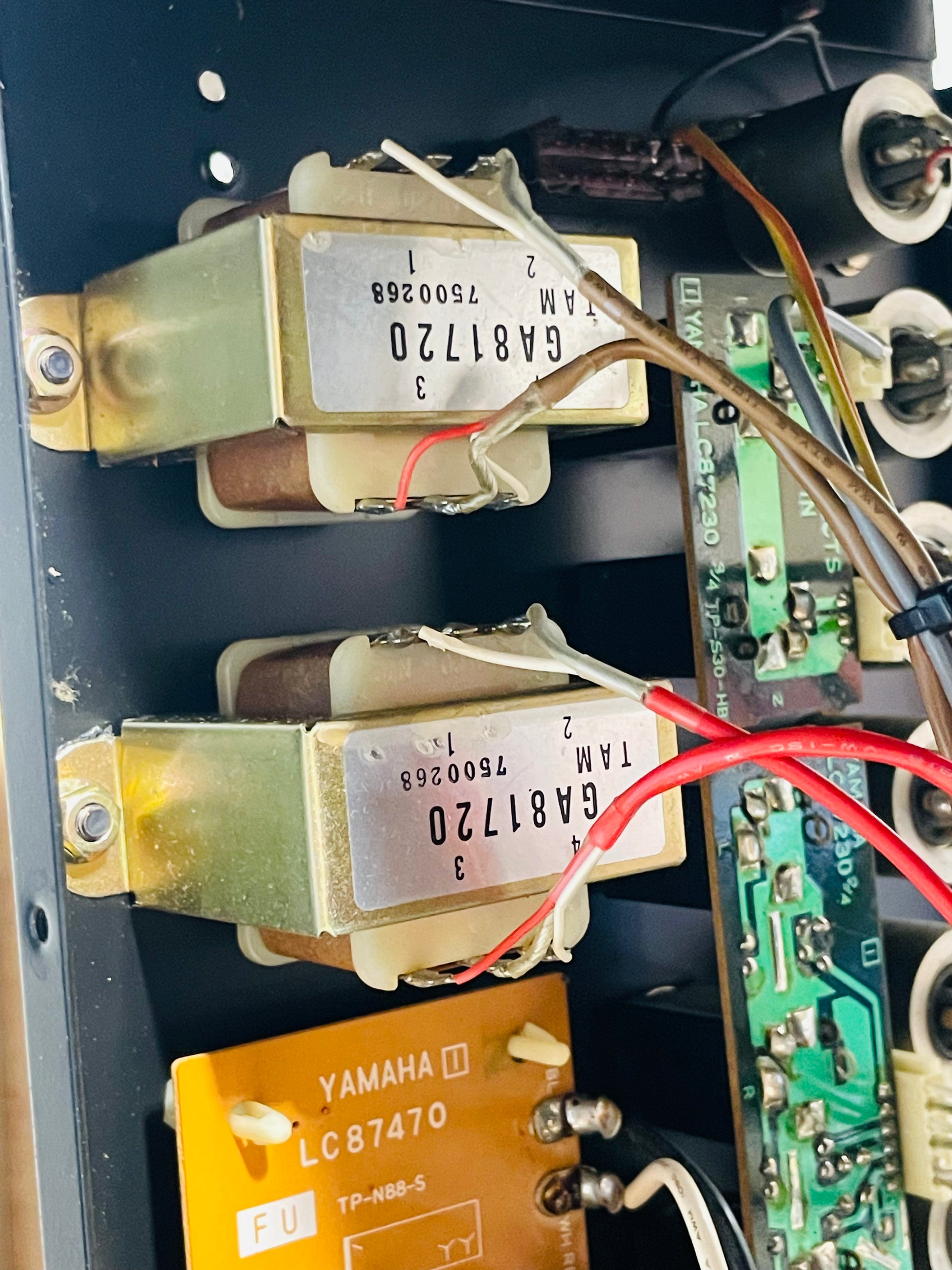

• 2 × Tamura GA81720 output transformers on main program out

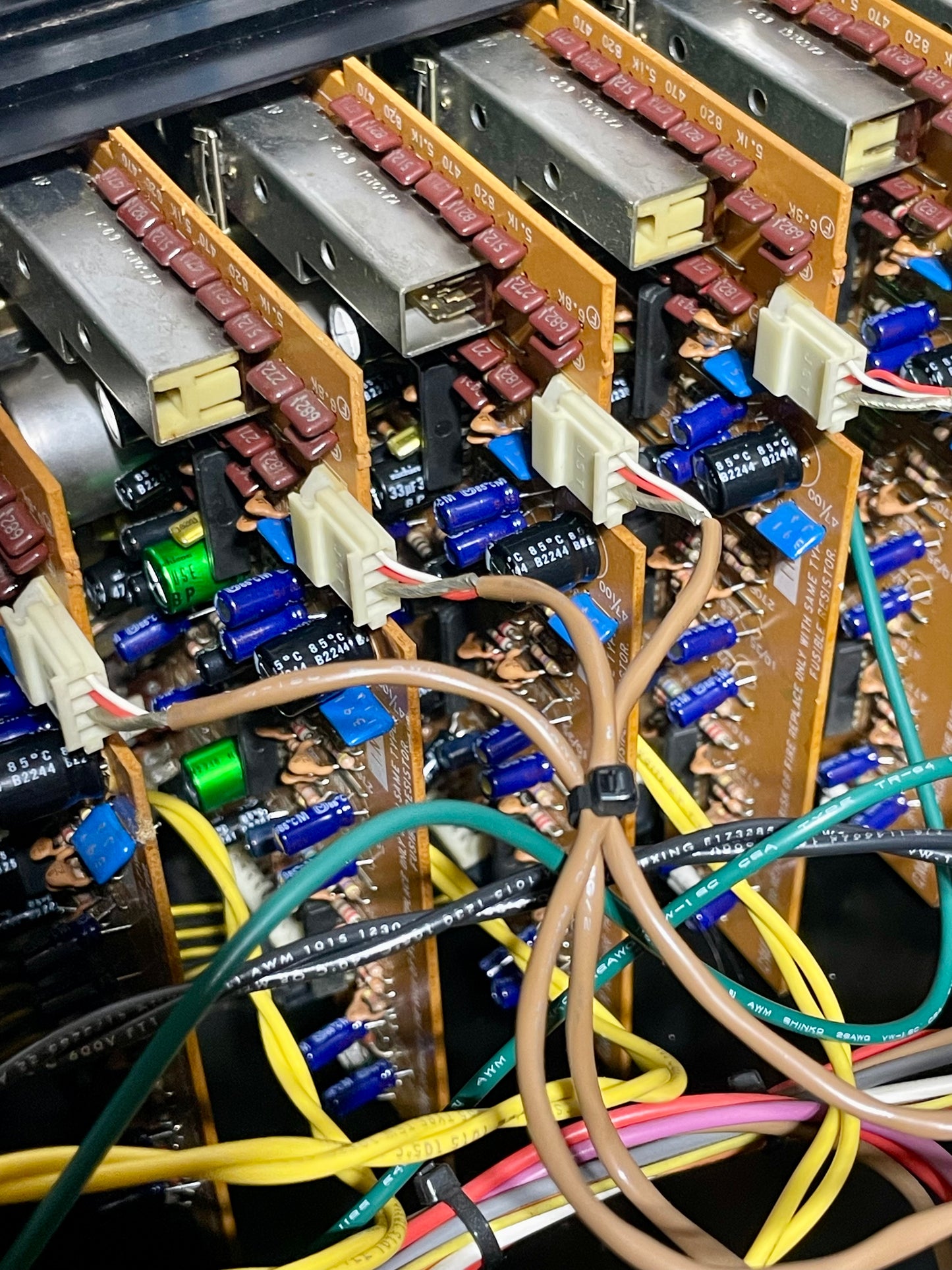

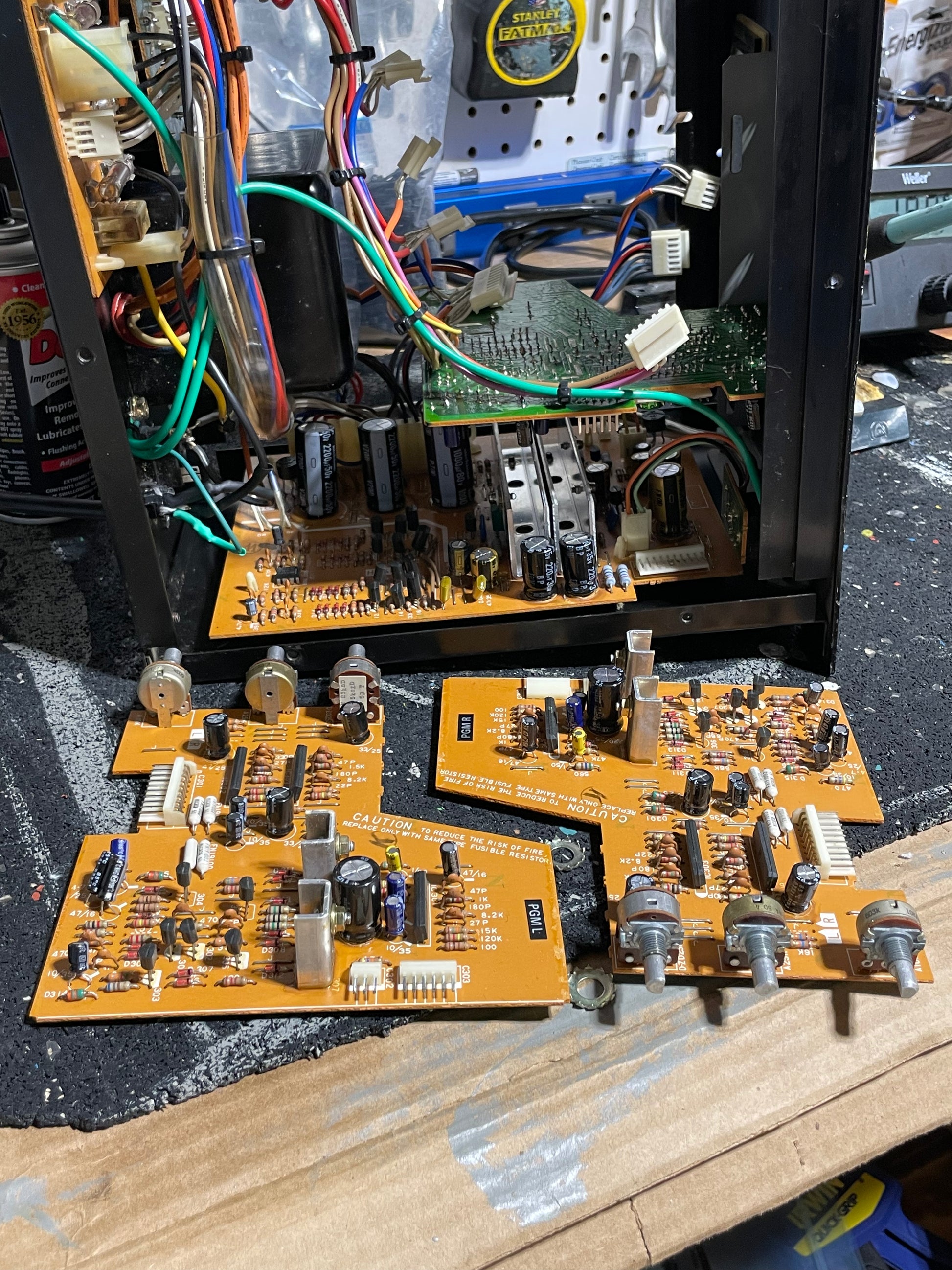

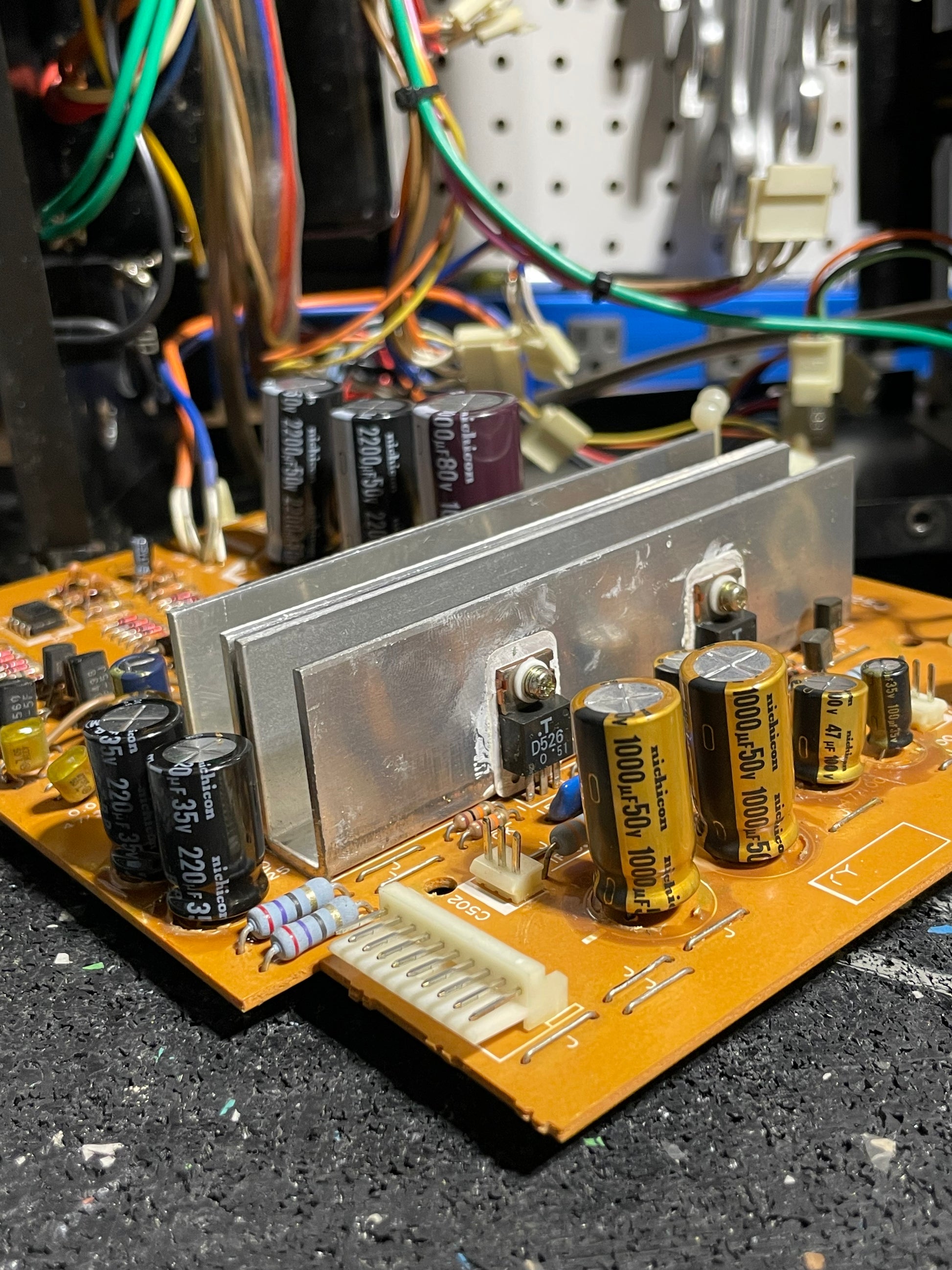

• Fully recapped with high-quality Nichicon capacitors (same brand as original) / Nichicon Muse where to schematics calls for Bipolar caps
• Fully serviced: all potentiometers cleaned, VU meter lamps replaced for long-term reliability

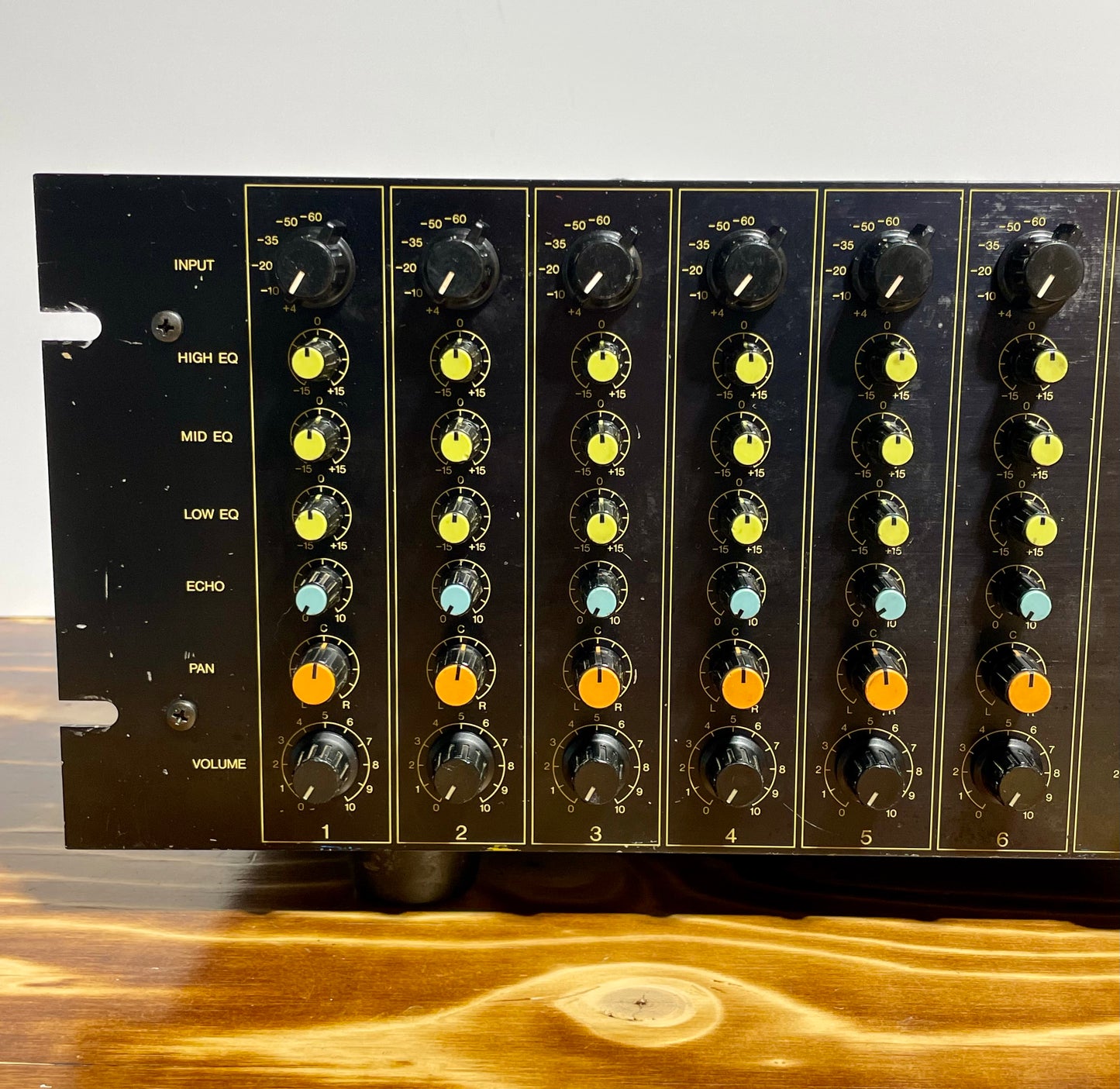

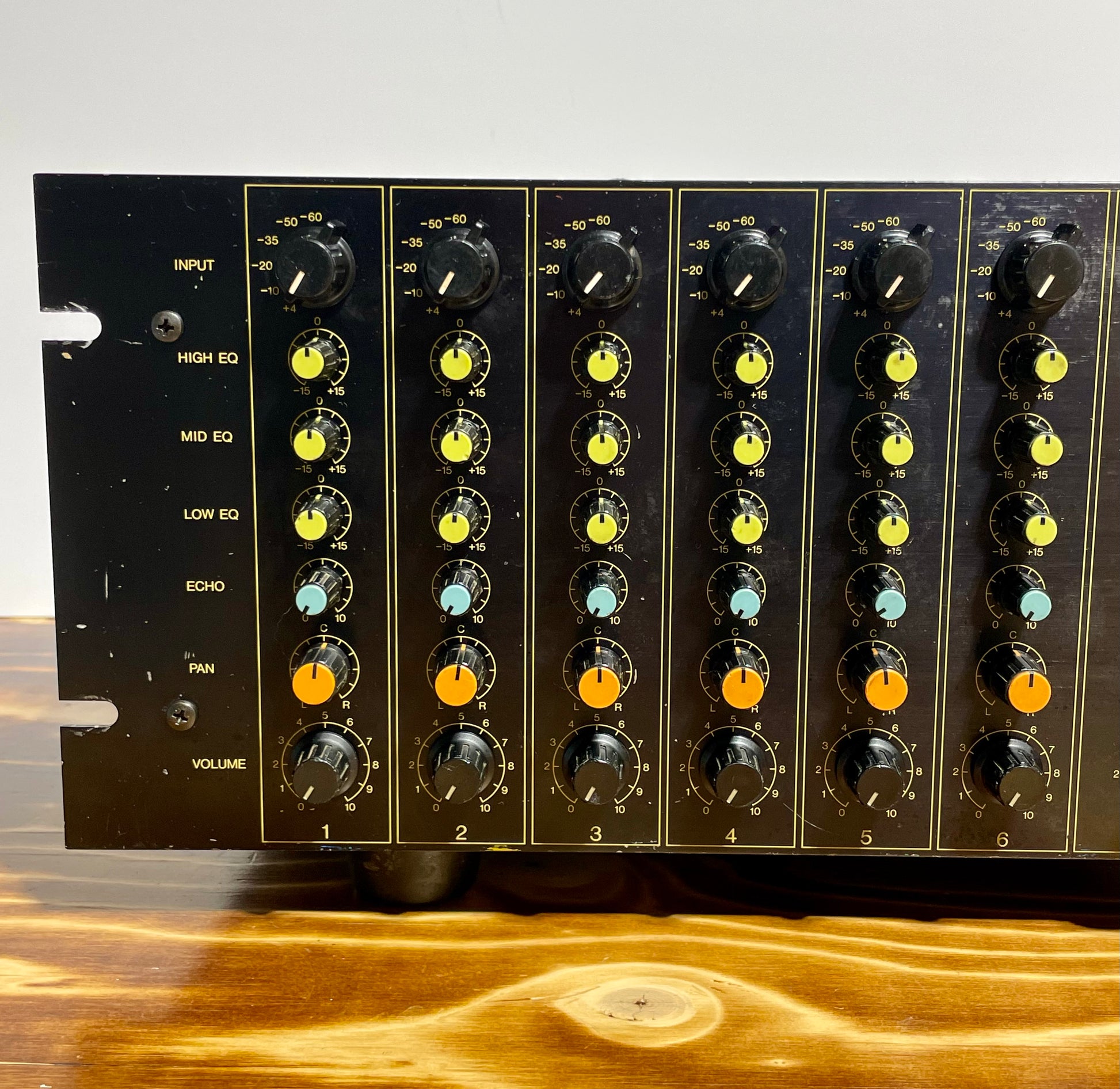

Channel Features (x6):

• XLR mic input with +48V phantom power (available on every channel)
• Line input
• 3-band EQ: High / Mid / Low (cut & boost)

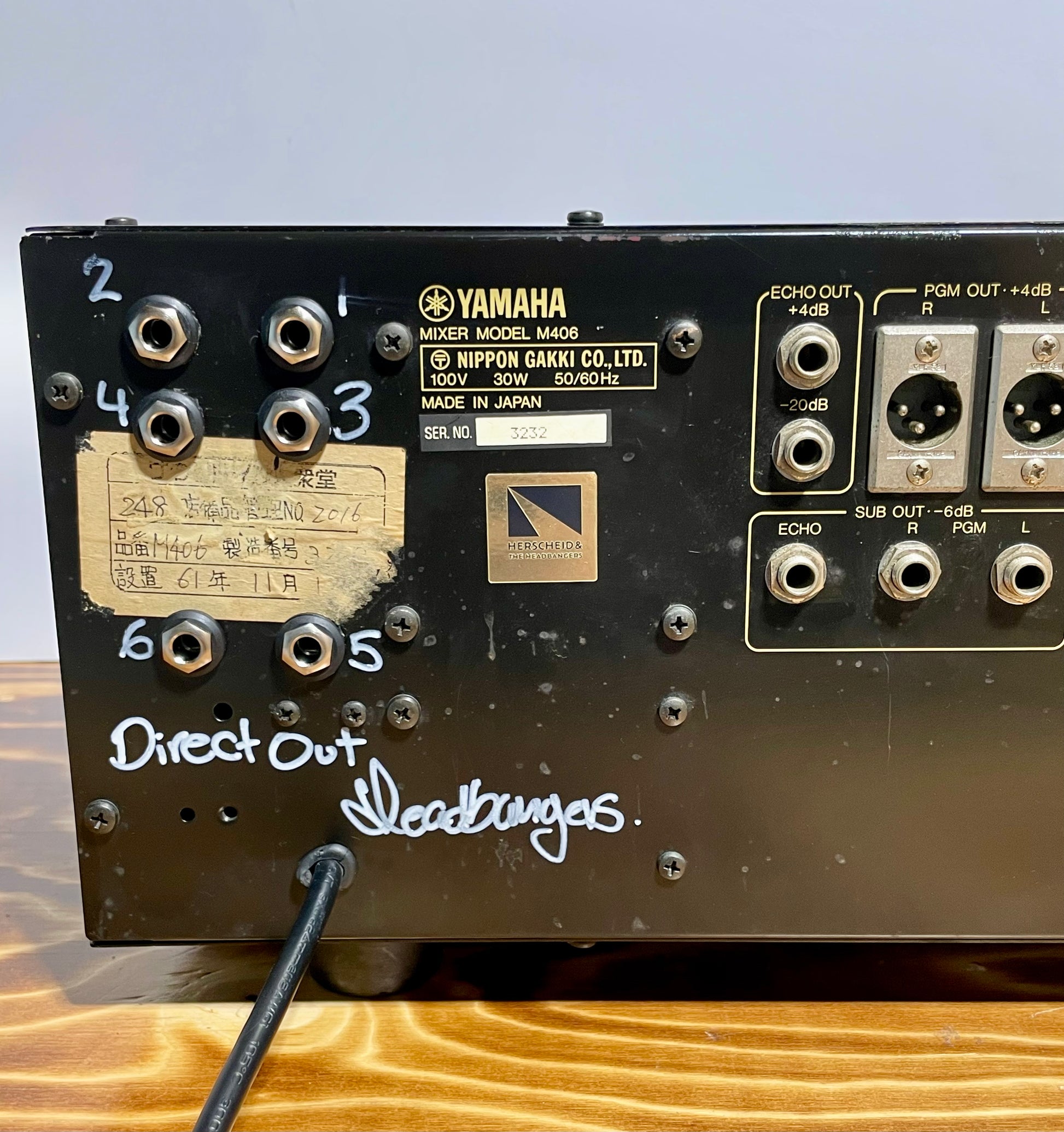

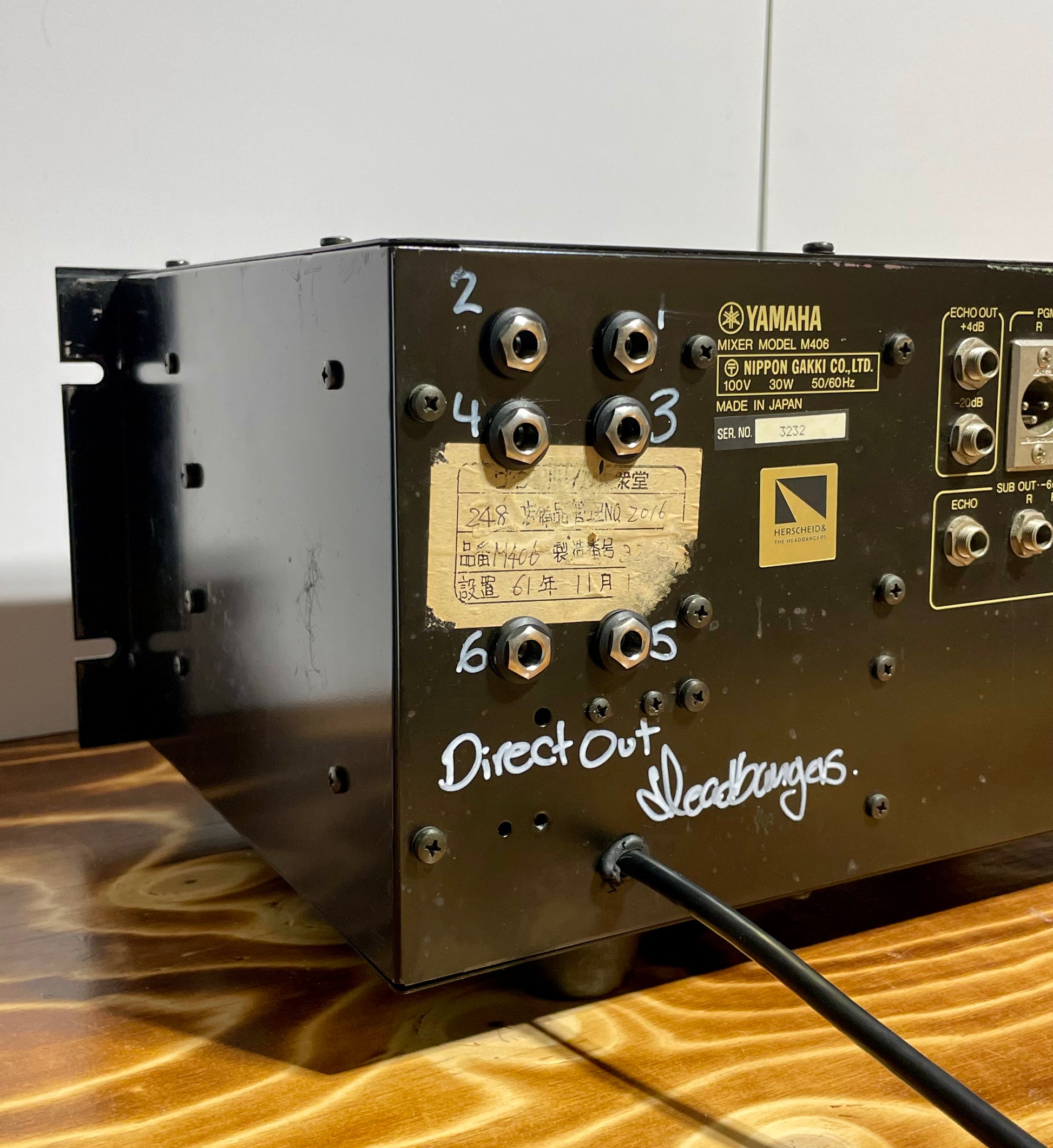

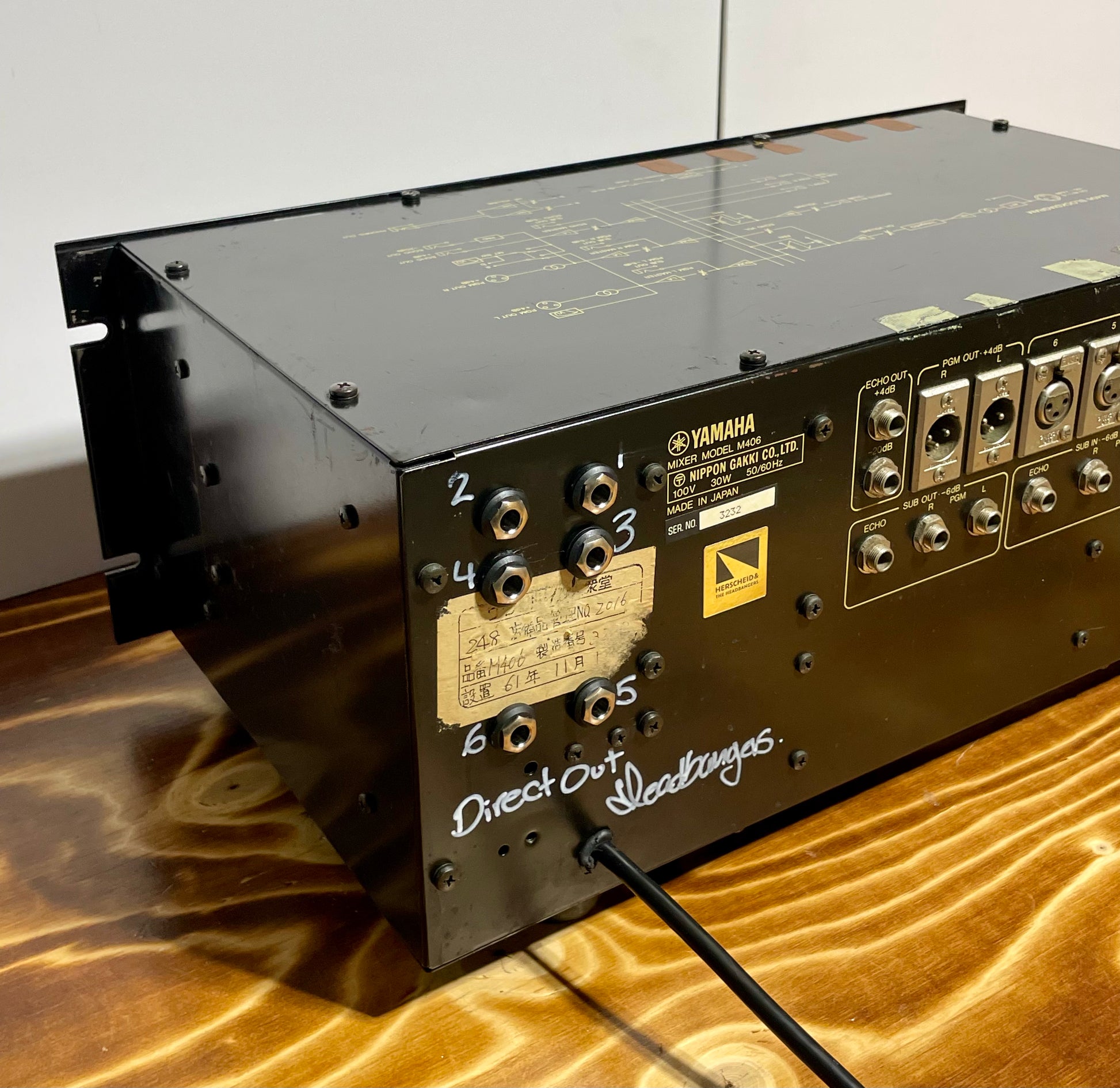

• Direct out on every channel (post-EQ & post-fader)
• Smooth Yamaha faders with excellent gain staging

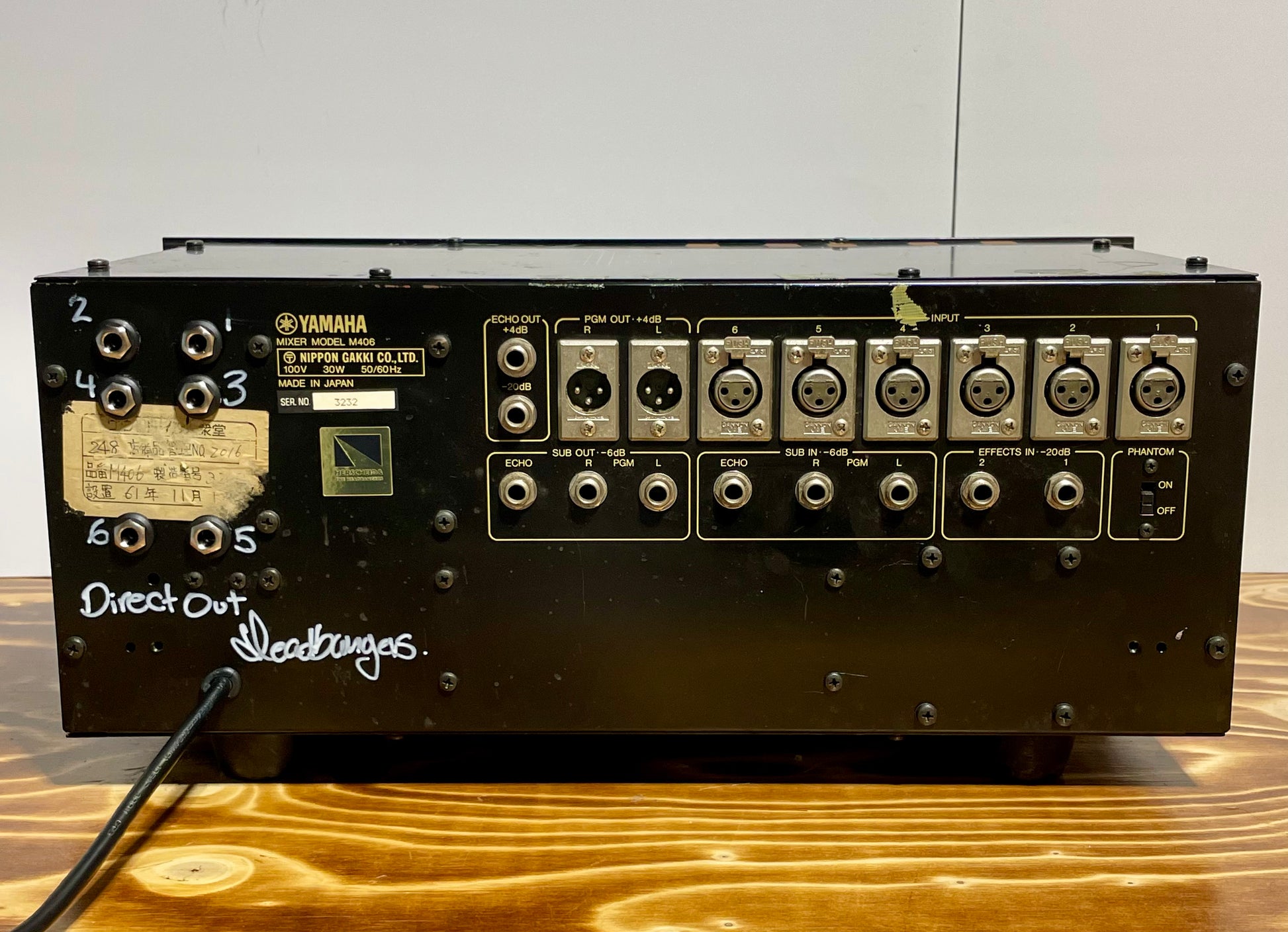

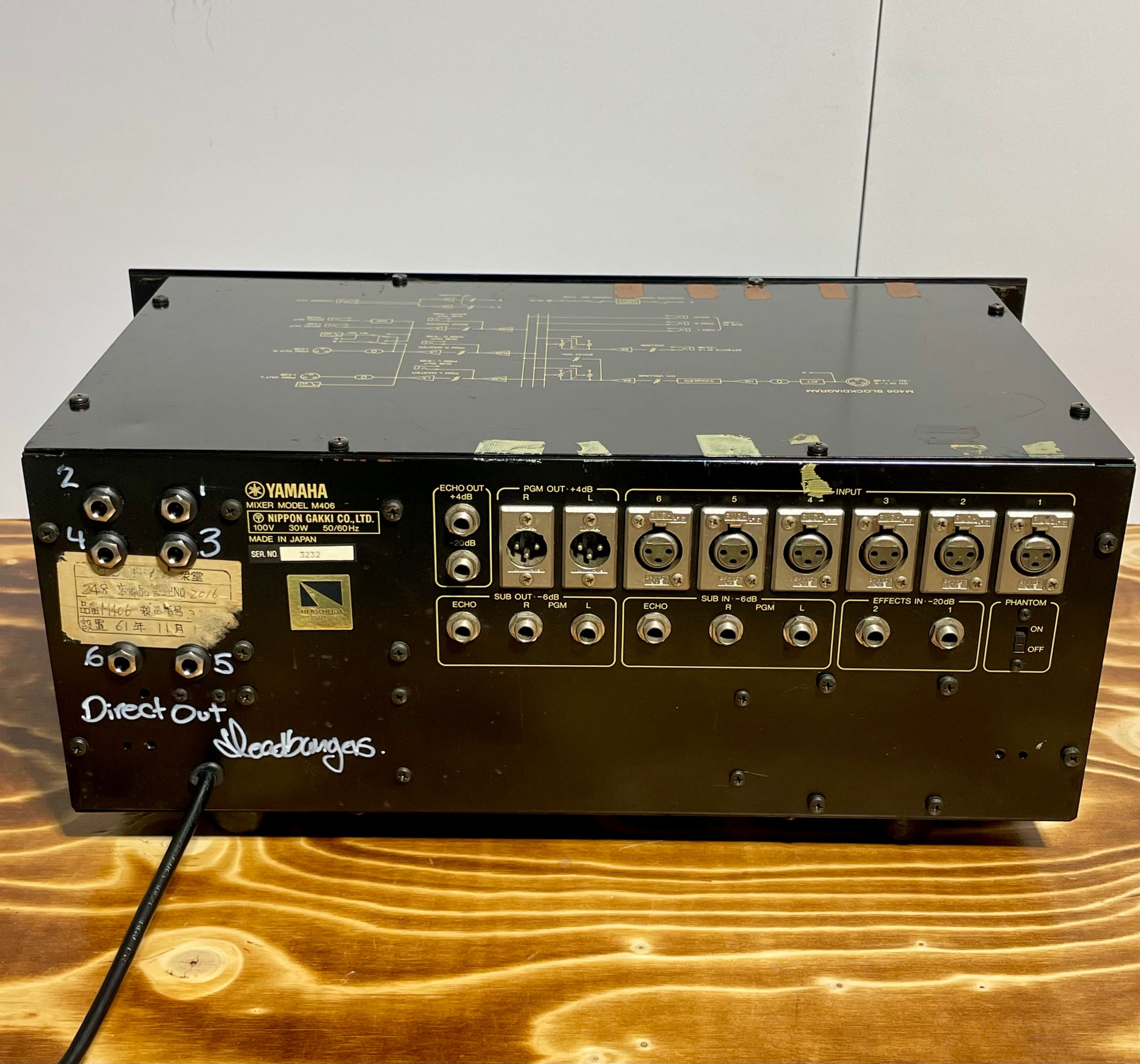

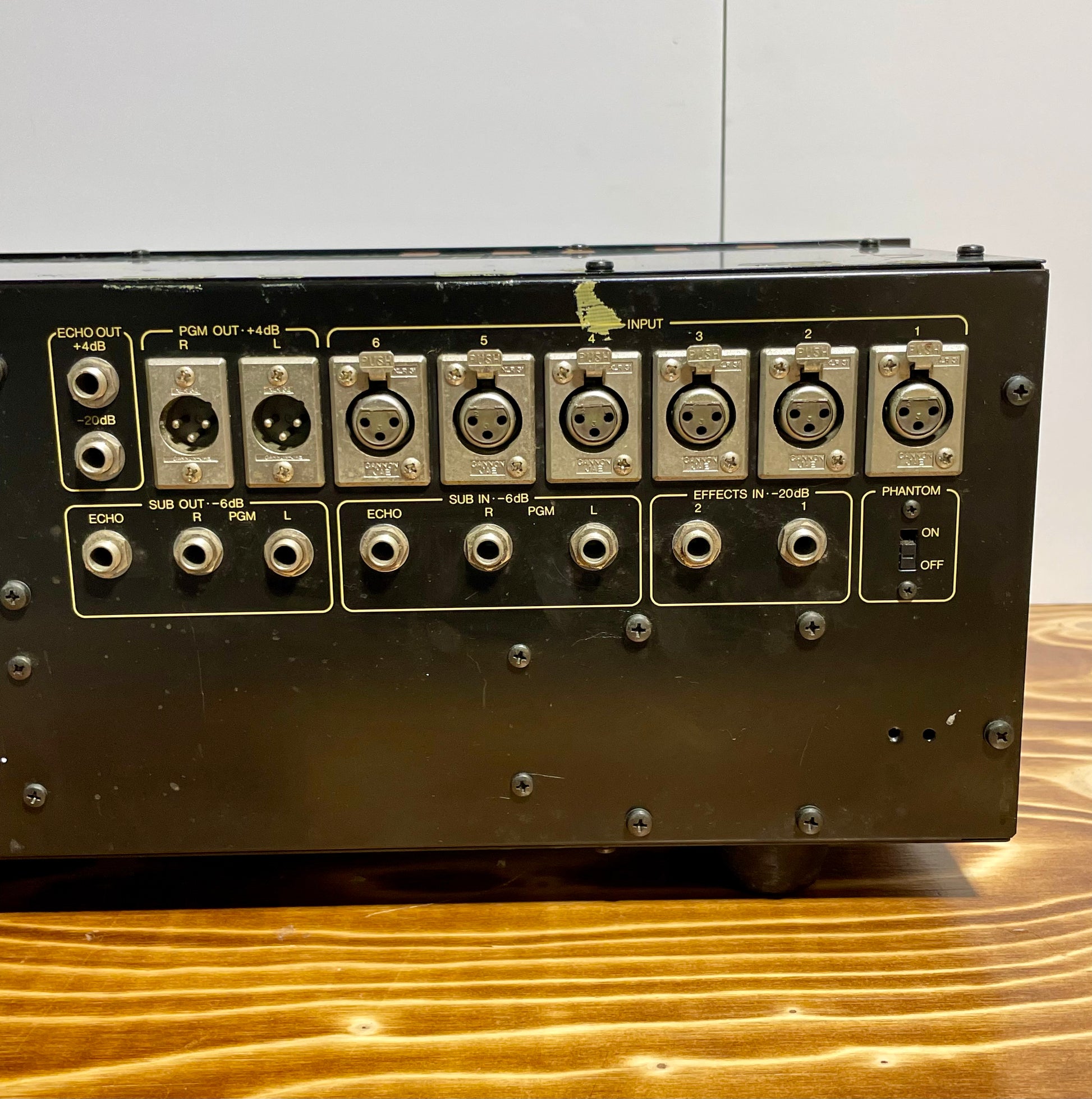

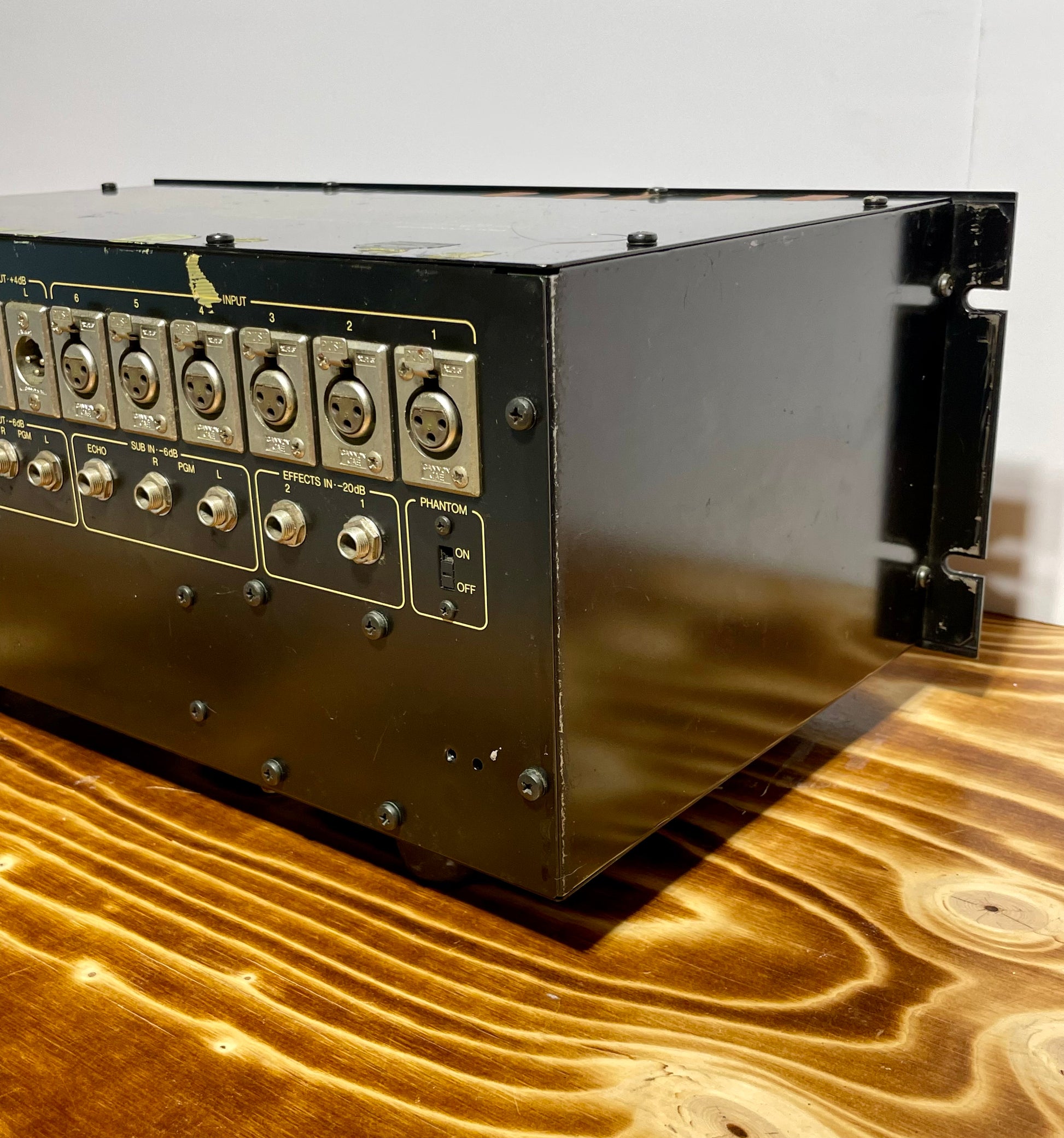

Routing & I/O:

• Echo send (effects send) per channel
• 2 × effects returns (Effect In 1 & 2)
• AUX IN
• SUB IN / SUB OUT for linking with another mixer
• XLR main program output via Tamura output transformers

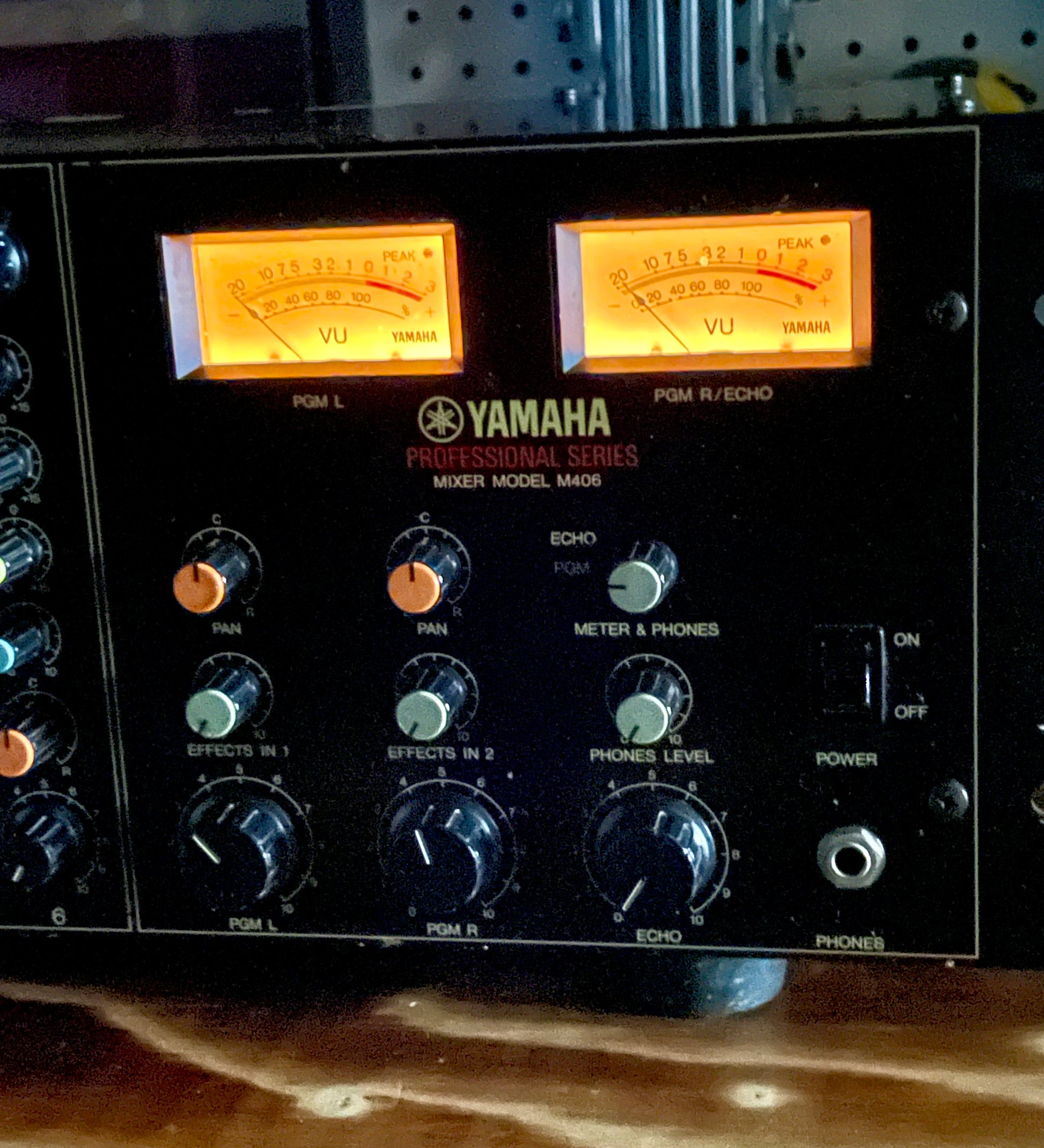

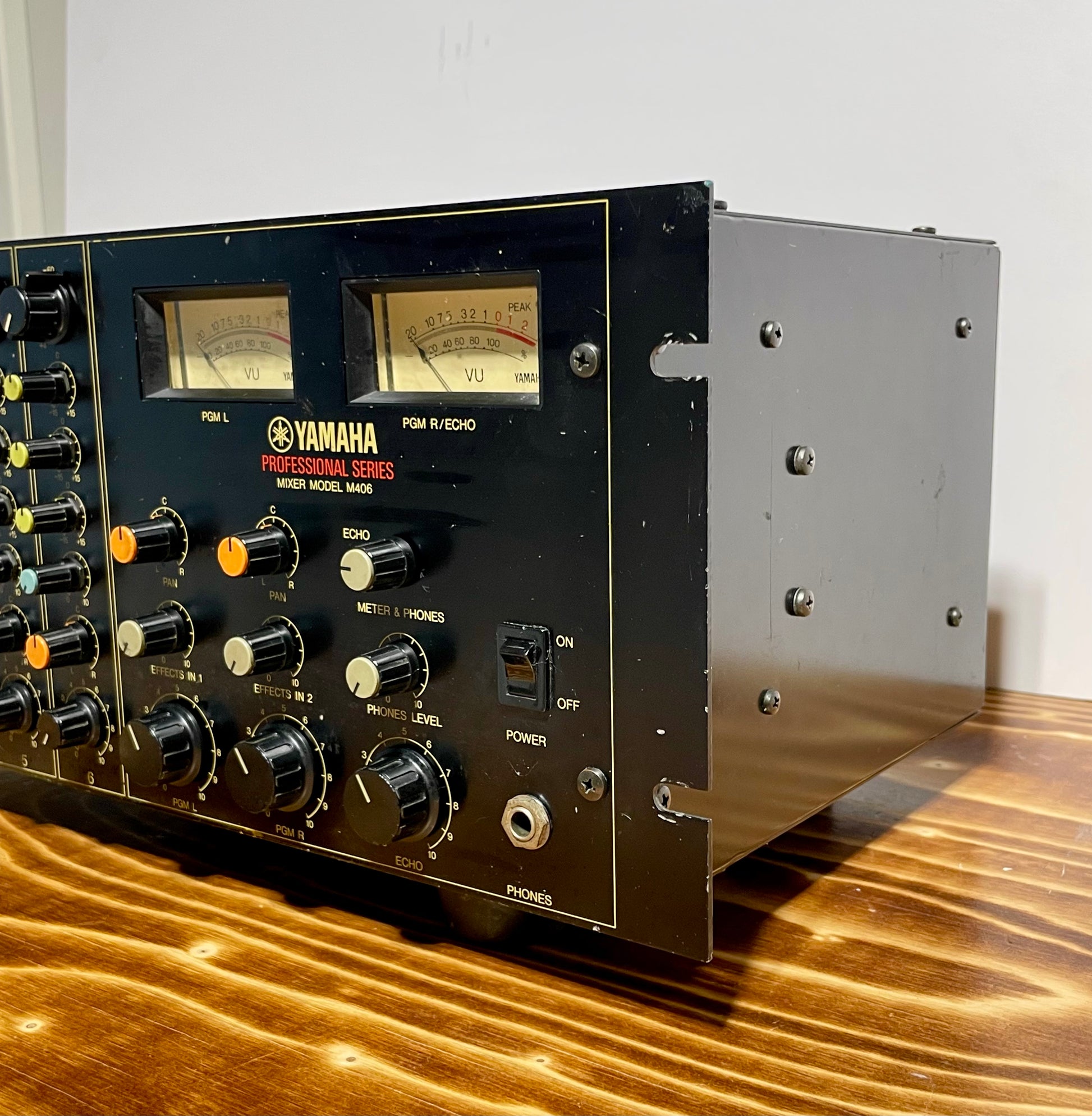

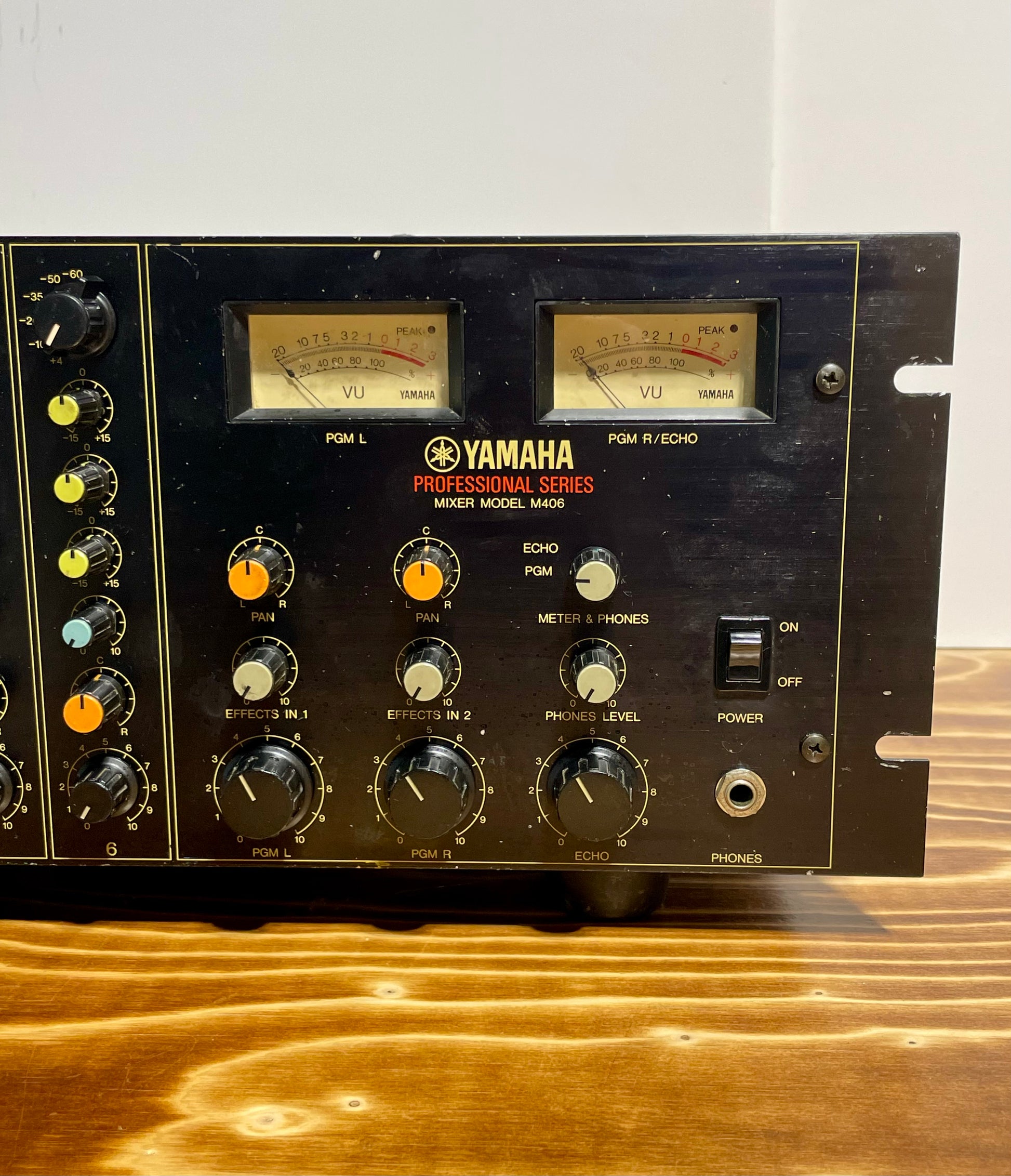

• VU meters for main output monitoring

Echo / Effects Setup Examples:

• Send channel echo to a tape echo, spring reverb, or analog delay, return it to Effect In 1 or 2
• Use Echo Send to feed an external reverb unit, blend wet signal back into the mix via returns
• Patch Echo Send to a guitar pedal chain, return processed signal to keep original channels dry
• Use SUB OUT to route stems to another mixer or recorder, SUB IN to sum an external mix

Quick and insured shipping
